2021 Kawasaki Ninja® 400 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

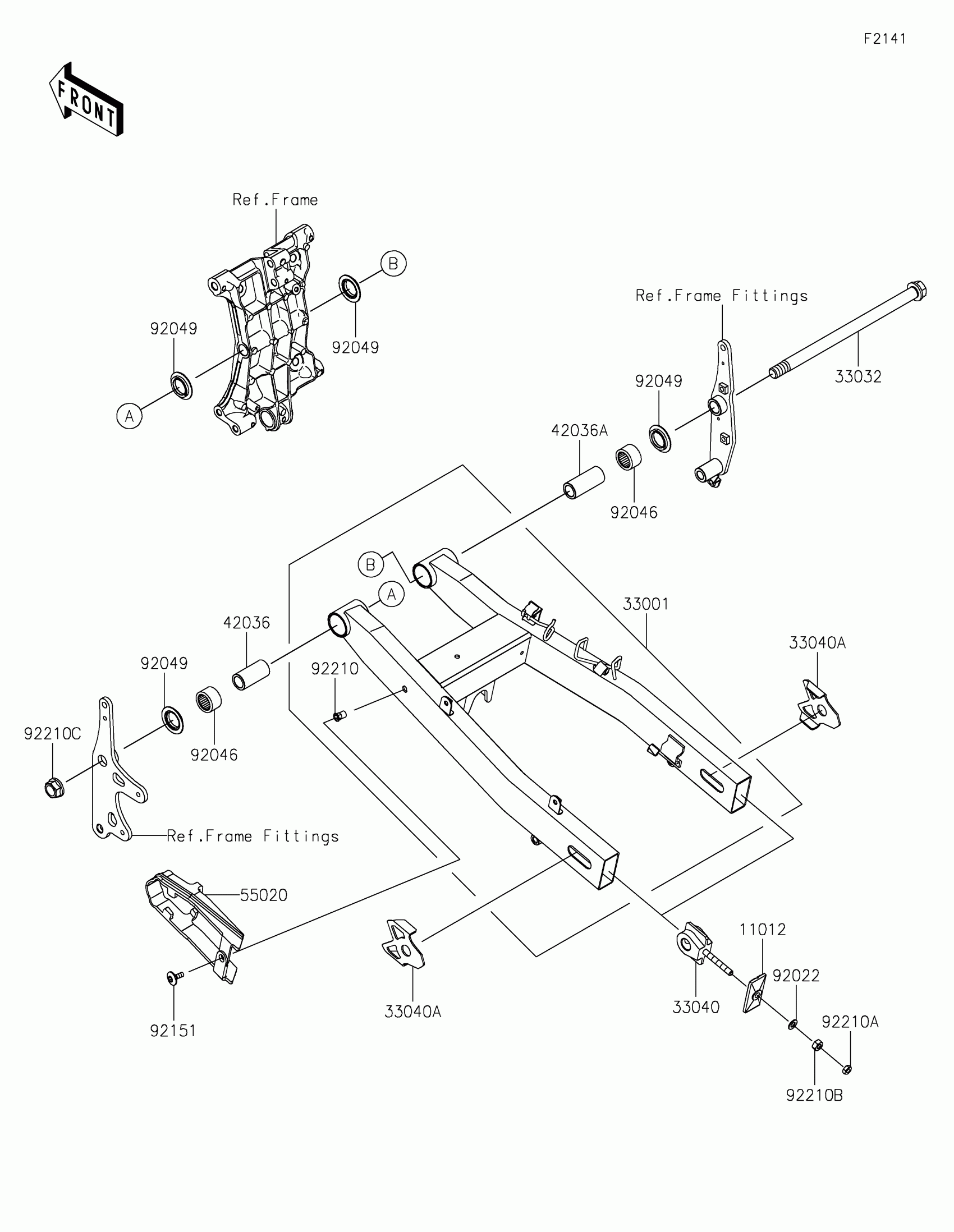

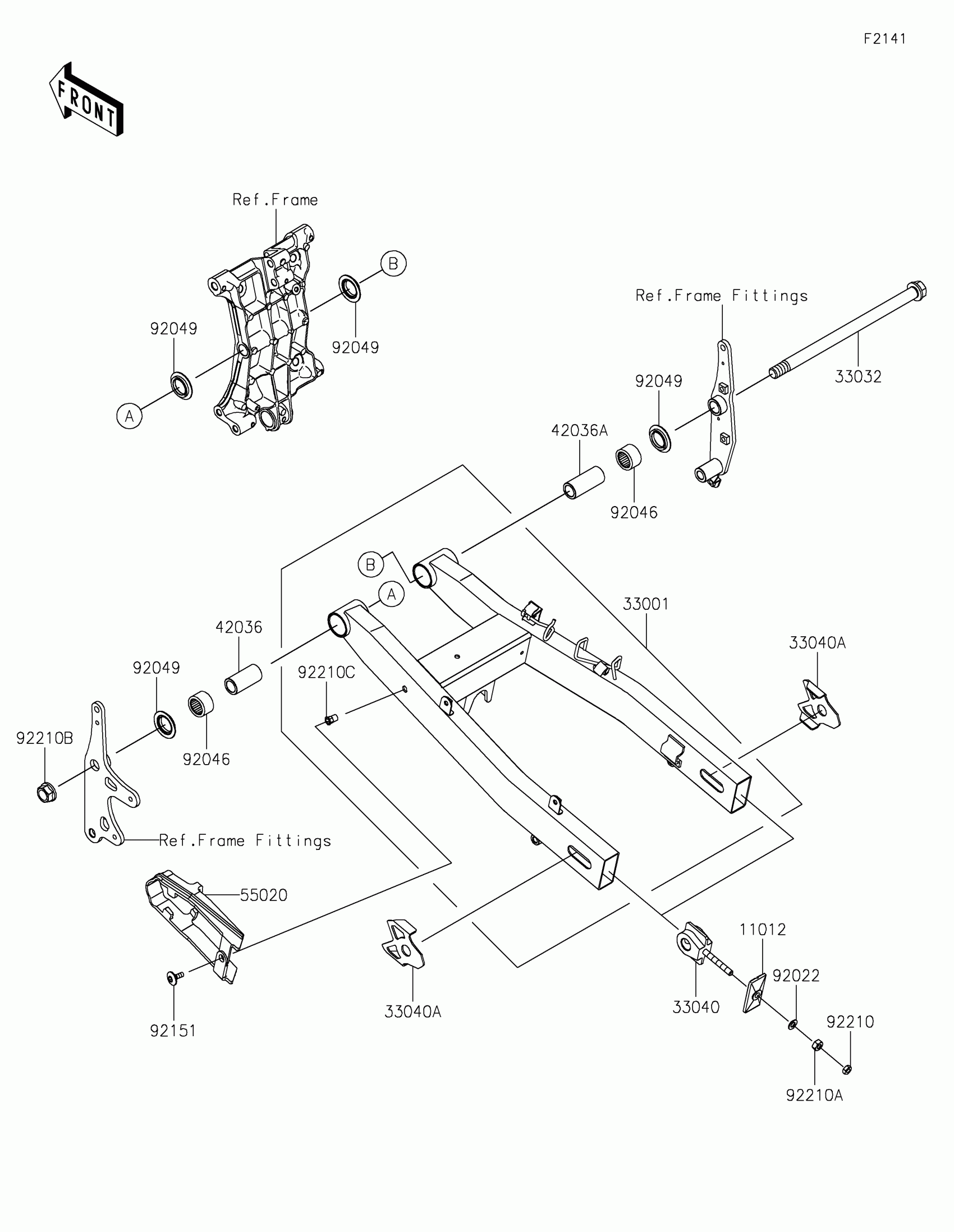

2021 Kawasaki Ninja® 400 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

1

$24.26

In stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0681-18R

1

$500.48

In stock

33032

1

$82.75

In stock

33040

ADJUSTER-CHAIN

33040-0089

1

$27.47

In stock

33040A

ADJUSTER-CHAIN,F.S.BLACK

33040-0090-18R

1

$21.20

In stock

42036

SLEEVE

42036-0805

1

$30.70

In stock

42036A

SLEEVE

42036-0806

1

$31.18

In stock

55020

GUARD,CHAIN

55020-2199

1

$10.08

In stock

92022

WASHER,8.5X16X1.2

92022-1582

1

$0.84

In stock

92046

BEARING-NEEDLE,BM2520

92046-1228

1
Out of stock

92049

SEAL-OIL,MF025N1

92049-1426

1
Out of stock

92151

BOLT,SOCKET,6X18

92151-1149

1

$6.11

In stock

92210

NUT,POP,6MM,L=15

92210-1397

1
Out of stock

92210A

NUT,8MM,5X12

92210-1588

1

$0.88

In stock

92210B

NUT,8MM,6.5X14

92210-1589

1

$1.47

In stock

92210C

NUT,16MM

92210-1590

1

$4.93

In stock
