2021 Kawasaki Ninja® 400 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

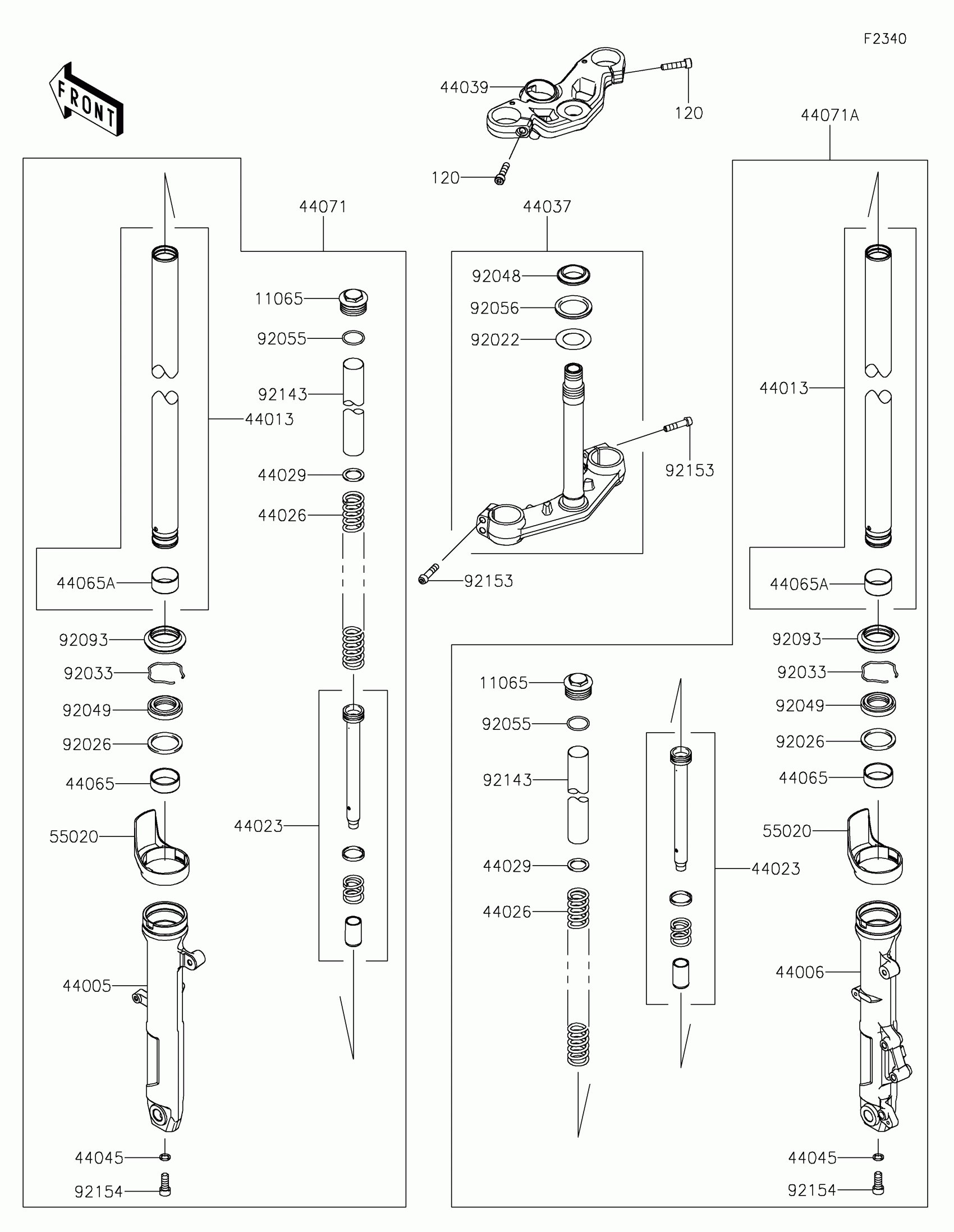

2021 Kawasaki Ninja® 400 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-1286

1

$45.48

In stock

44005

1

$405.83

In stock

44006

1

$405.83

In stock

44013

PIPE-FORK INNER

44013-0324

1

$469.40

In stock

44023

CYLINDER-SET-FORK

44023-0144

1

$114.61

In stock

44026

SPRING-FRONT FORK

44026-0220

1

$56.69

In stock

44029

SEAT-FORK SPRING

44029-1131

1

$10.00

In stock

44037

1

$385.21

In stock

44039

HOLDER-FORK UPPER

44039-0186

1

$297.09

In stock

44045

1

$4.88

In stock

44065

1

$19.06

In stock

44065A

BUSHING-FRONT FORK

44065-0036

1

$19.31

In stock

44071

DAMPER-ASSY,LH,F.S.BLACK

44071-1295-22Q

1

$724.07

In stock

44071A

DAMPER-ASSY,RH,F.S.BLACK

44071-1297-22Q

1

$724.07

In stock

55020

GUARD,FORK

55020-0872

1

$9.25

In stock

92022

WASHER,30.5X50X0.6

92022-231

1
Out of stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92048

1

$14.20

In stock

92049

SEAL-OIL

92049-0807

1

$21.04

In stock

92055

RING-O,FORK TOP

92055-1420

1

$4.37

In stock

92056

1

$7.04

In stock

92093

SEAL,DUST

92093-0717

1

$22.03

In stock

92143

COLLAR,FORK,L=250

92143-1653

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0854

1
Out of stock

92154

BOLT

92154-2551

1

$7.86

In stock

120

BOLT-SOCKET,8X35

120CC0835

1

$2.20

In stock
