2021 Kawasaki Ninja® 400 Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

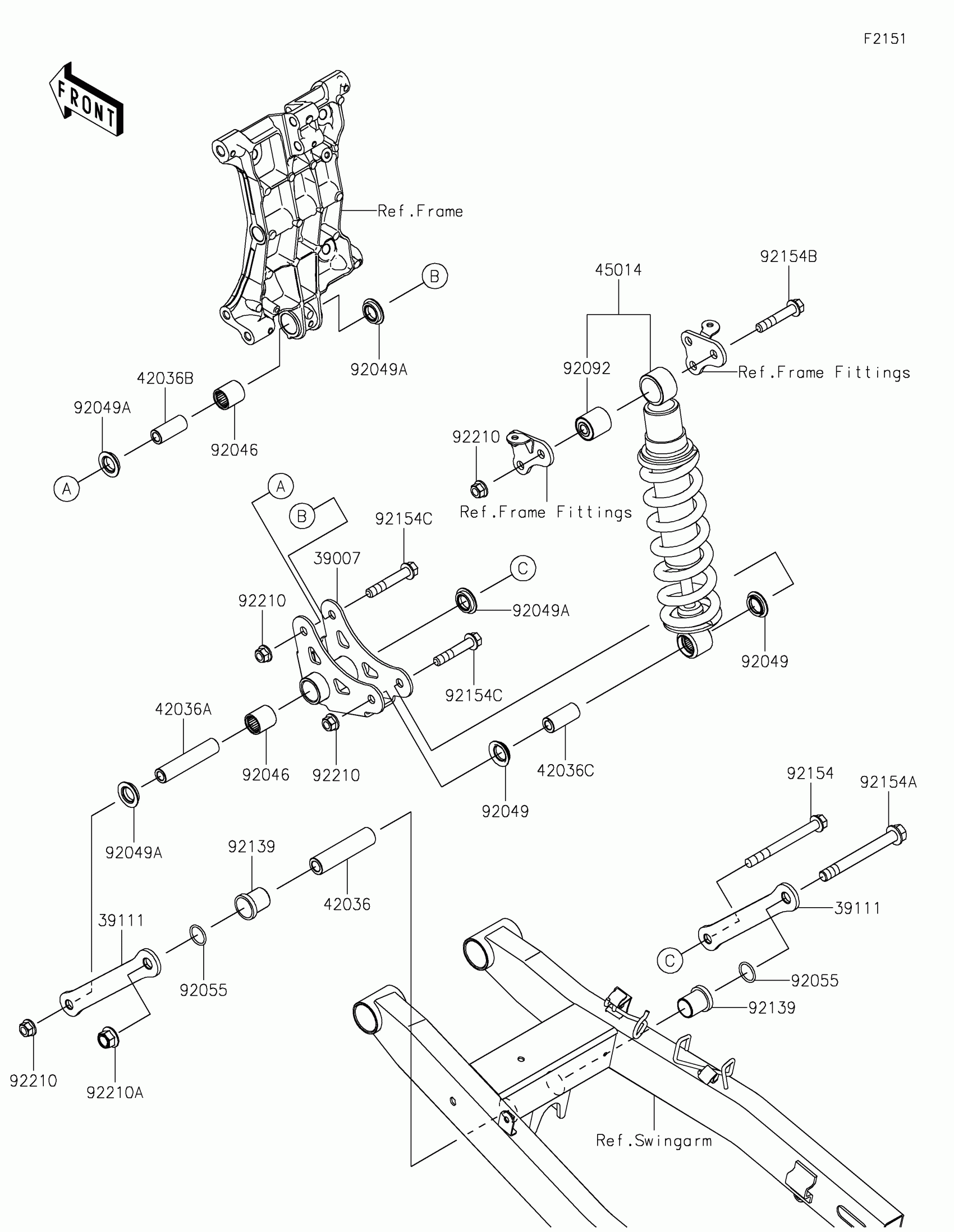

2021 Kawasaki Ninja® 400 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0438

1

$113.19

In stock

39111

ROD-TIE

39111-0363

1

$43.03

In stock

42036

SLEEVE,12.1X20X83

42036-0807

1

$32.76

In stock

42036A

SLEEVE,10.1X17X83

42036-0808

1

$31.28

In stock

42036B

SLEEVE,10.1X17X40.5

42036-0809

1

$17.98

In stock

42036C

SLEEVE,10.1X18X40.5

42036-0810

1

$18.76

In stock

45014

SHOCKABSORBER,BLACK+BLK

45014-0605-37S

1

$476.88

In stock

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL

92049-0133

1
Out of stock

92049A

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92055

RING-O,19.8X2.2

92055-1215

1

$3.43

In stock

92092

BUSHING-RUBBER

92092-1058

1

$30.46

In stock

92139

BUSHING,20X23X29

92139-0890

1

$7.27

In stock

92154

BOLT,FLANGED,10X105

92154-2810

1

$9.90

In stock

92154A

BOLT,FLANGED,12X110

92154-2811

1

$14.34

In stock

92154B

BOLT,FLANGED,10X54

92154-2813

1

$5.34

In stock

92154C

BOLT,FLANGED,10X60

92154-3771

1

$5.06

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

1
Out of stock
