2021 Kawasaki Ninja® 400 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

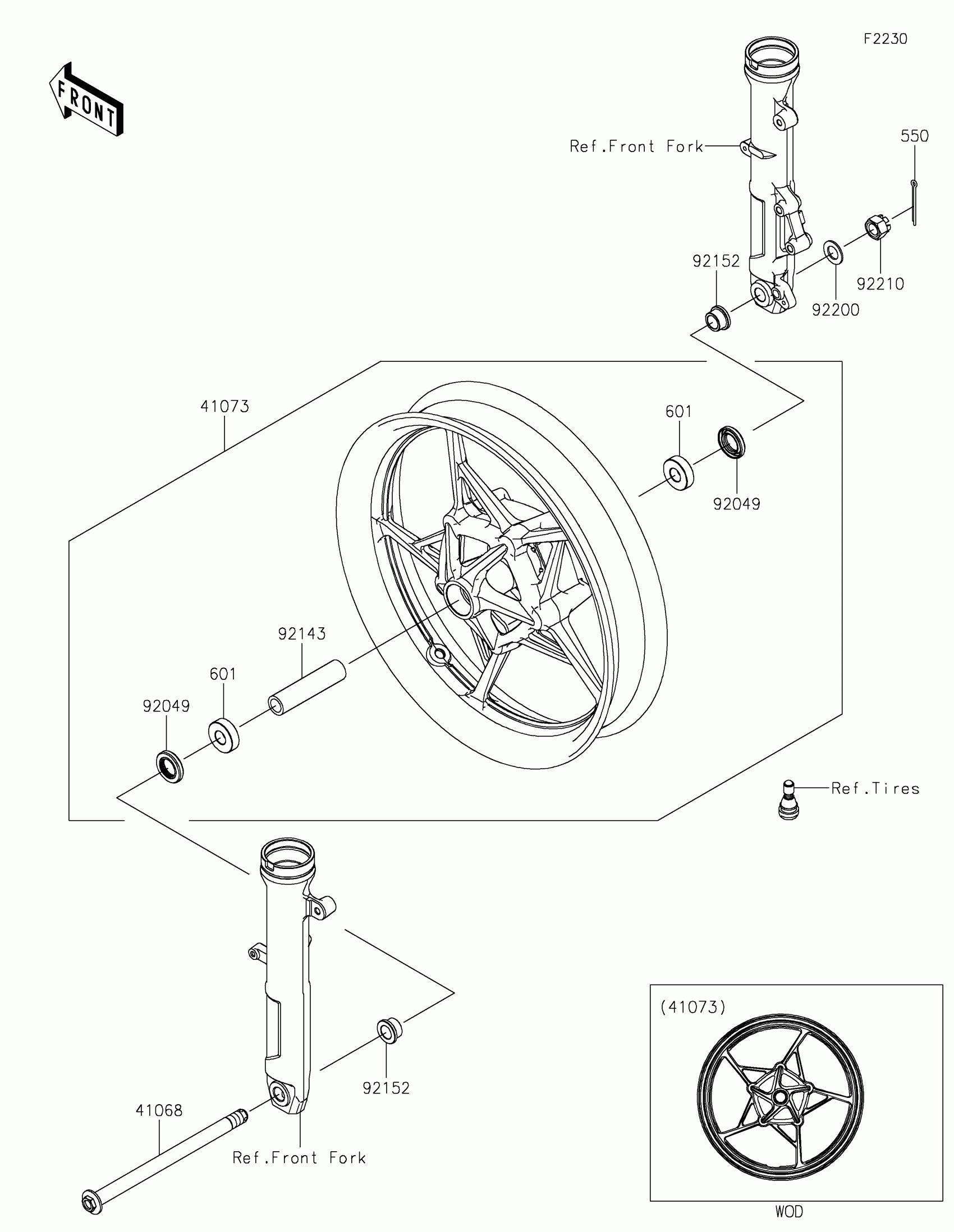

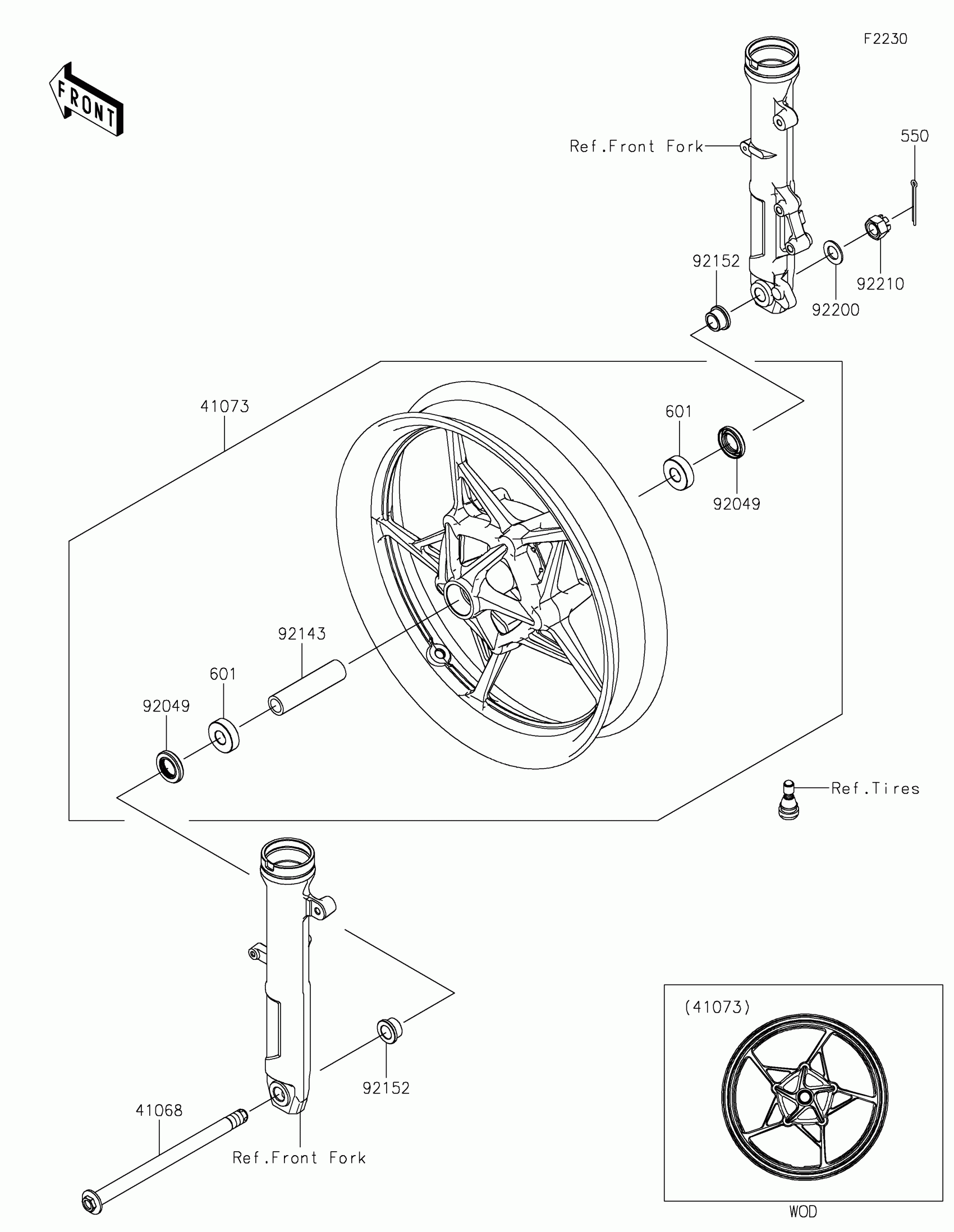

2021 Kawasaki Ninja® 400 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,FR,17X253,M16

41068-0627

1

$77.28

In stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0763-QT

1

$791.16

In stock

92049

SEAL-OIL,23X40X7

92049-0801

1

$5.11

In stock

92143

COLLAR,17.2X25X105

92143-1124

1

$15.20

In stock

92152

COLLAR,17X30X15.5

92152-2386

1

$11.76

In stock

92200

WASHER,17.3X30X2

92200-1916

1

$1.10

In stock

92210

NUT,16MM

92210-1651

1

$6.09

In stock

550

PIN-COTTER,4.0X35

550AA4035

1

$1.81

In stock

601

1

$17.81

In stock
