2023 Kawasaki Ninja® 400 KRT Edition Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2023 Kawasaki Ninja® 400 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

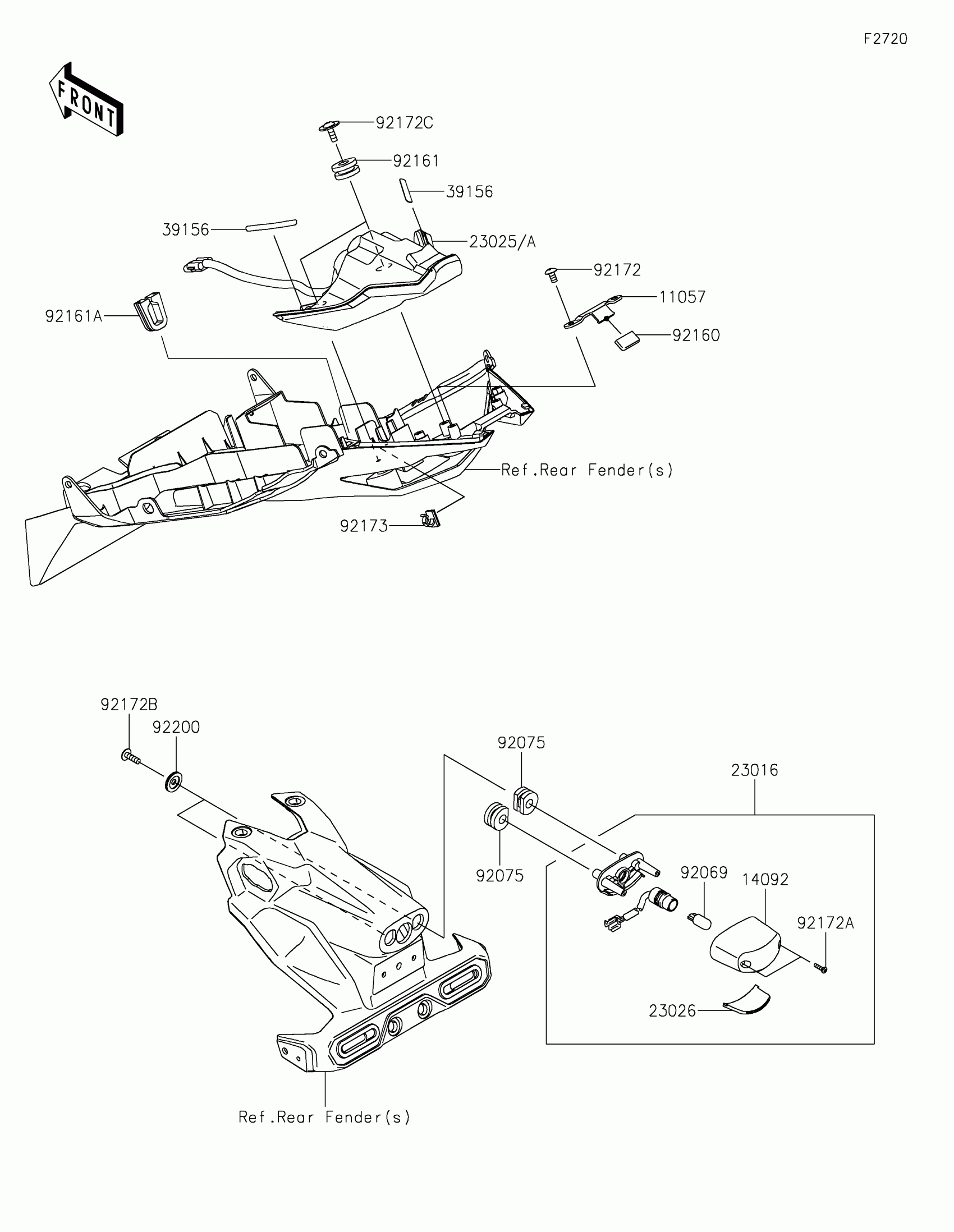

2023 Kawasaki Ninja® 400 KRT Edition Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1214

1
Out of stock

14092

COVER,LICENSE LAMP

14092-0001

1
Out of stock

23016

LAMP-ASSY,LICENCE

23016-0657

1
Out of stock

23025A

LAMP-TAIL,LED

23025-0400

1
Out of stock

23026

LENS,LICENCE LAMP

23026-0035

1
Out of stock

39156

PAD,6X50

39156-2421

1
Out of stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92075

DAMPER

92075-1870

1
Out of stock

92160

DAMPER

92160-1190

1
Out of stock

92161

DAMPER

92161-0163

1
Out of stock

92161A

DAMPER,RR FENDER

92161-1984

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92172A

SCREW,TAPPING,2.9X13

92172-0343

1
Out of stock

92172B

SCREW,TAPPING,5X16

92172-0427

1
Out of stock

92172C

SCREW,5X16

92172-1215

1
Out of stock

92173

CLAMP,CLIP

92173-1783

1
Out of stock

92200

WASHER,5.5X20X2

92200-1971

1
Out of stock
