2023 Kawasaki Ninja® 400 KRT Edition Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2023 Kawasaki Ninja® 400 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

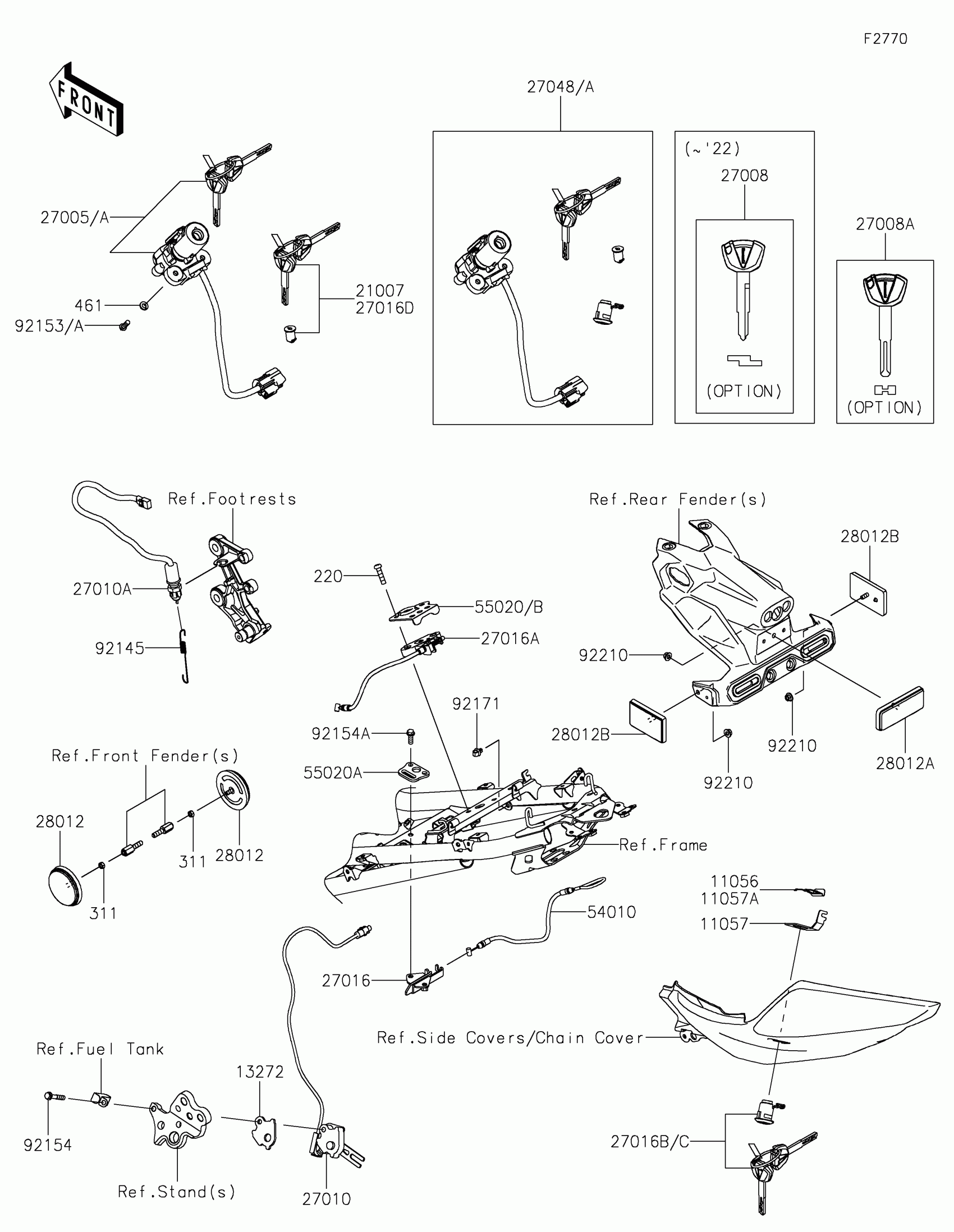

2023 Kawasaki Ninja® 400 KRT Edition Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SEAT LOCK

11057-7033

1
Out of stock

11057A

BRACKET,SEAT LOCK,UPP

11057-7740

1
Out of stock

13272

PLATE

13272-1330

1

$2.95

In stock

27005A

SWITCH-ASSY-IGNITION

27005-0717

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-0662

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0845

1
Out of stock

27010A

SWITCH,STOP

27010-0863

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

1
Out of stock

27016A

LOCK-ASSY,SEAT STRIKER

27016-0025

1
Out of stock

27016C

LOCK-ASSY,SEAT

27016-5430

1
Out of stock

27016D

LOCK-ASSY,TANK CAP

27016-5431

1
Out of stock

27048A

SWITCH-ASSY

27048-5277

1
Out of stock

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1077

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

54010

CABLE

54010-0621

1
Out of stock

55020A

GUARD,SEAT STRIKER

55020-2246

1
Out of stock

55020B

GUARD,SEAT STRIKER

55020-2259

1
Out of stock

92145

SPRING,BRAKE LAMP SWITCH

92145-0683

1
Out of stock

92153A

BOLT,TORX,6X16

92153-1426

1
Out of stock

92154

BOLT,FLANGED,6X35

92154-1009

1
Out of stock

92154A

BOLT,FLANGED-SMALL,6X16,TB2468

92154-3869

1
Out of stock

92171

CLAMP

92171-0939

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

220

SCREW-PAN-CROS,6X25

220AC0625

1
Out of stock

311

NUT-HEX,5MM

311AB0500

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
