2023 Kawasaki Ninja® 400 KRT Edition Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2023 Kawasaki Ninja® 400 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

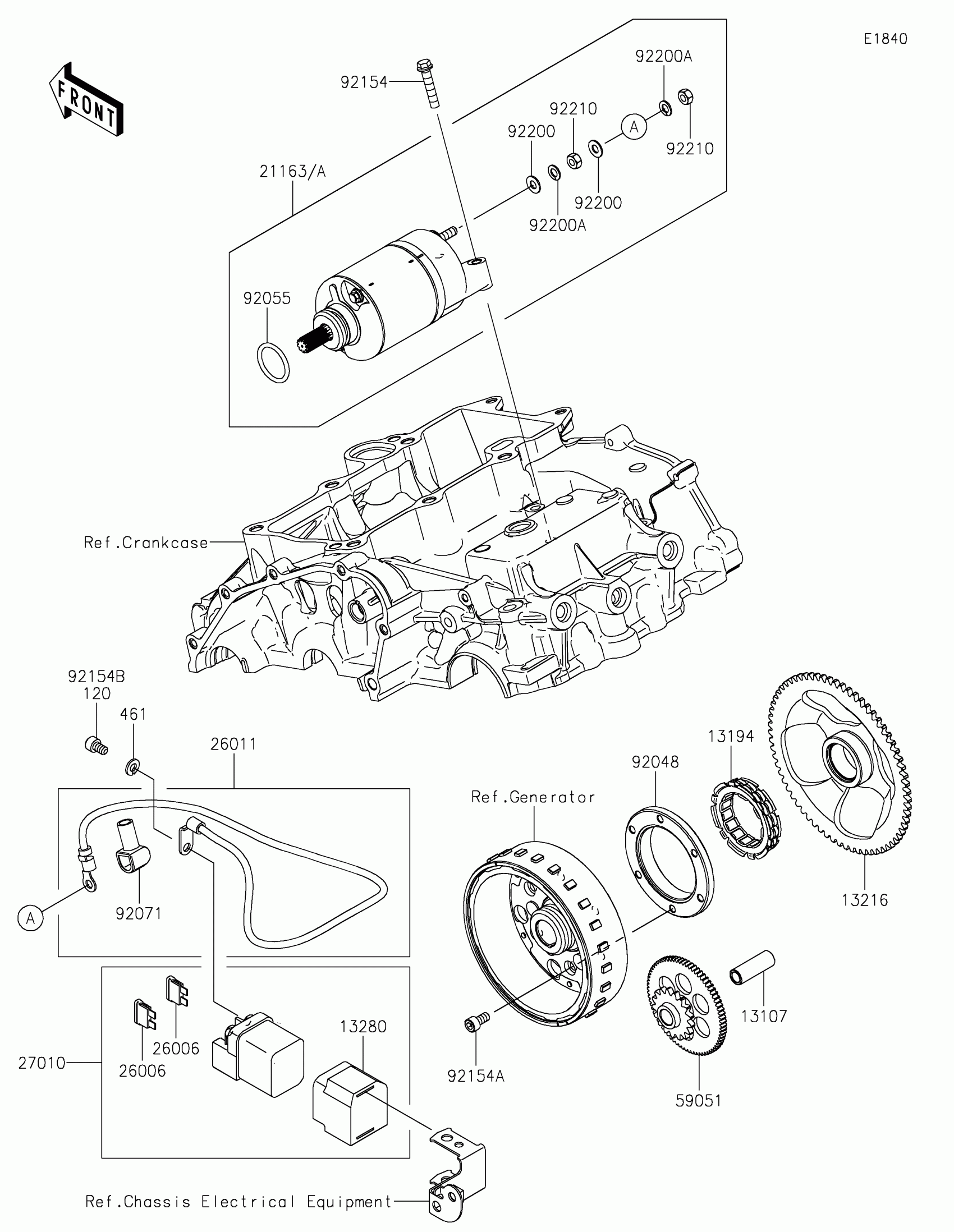

2023 Kawasaki Ninja® 400 KRT Edition Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLER

13107-0861

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1096

1
Out of stock

13216

GEAR-COMP,ONEWAY CLUTCH,67T

13216-0895

1
Out of stock

13280

HOLDER

13280-0301

1

$13.37

In stock

21163A

STARTER-ELECTRIC

21163-0794

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER

26011-1867

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0099

1
Out of stock

59051

GEAR-SPUR,IDLER

59051-0799

1
Out of stock

92048

RACE

92048-0024

1
Out of stock

92055

RING-O

92055-0822

1
Out of stock

92071

GROMMET

92071-0787

1
Out of stock

92154

BOLT,FLANGED,6X30

92154-1773

1
Out of stock

92154A

BOLT,SOCKET,6X12

92154-1889

1
Out of stock

92154B

BOLT,SOCKET,6X10

92154-4401

1
Out of stock

92200

WASHER

92200-1678

1
Out of stock

92200A

WASHER

92200-1679

1
Out of stock

92210

NUT

92210-1664

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
