2023 Kawasaki Ninja® 400 KRT Edition Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2023 Kawasaki Ninja® 400 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

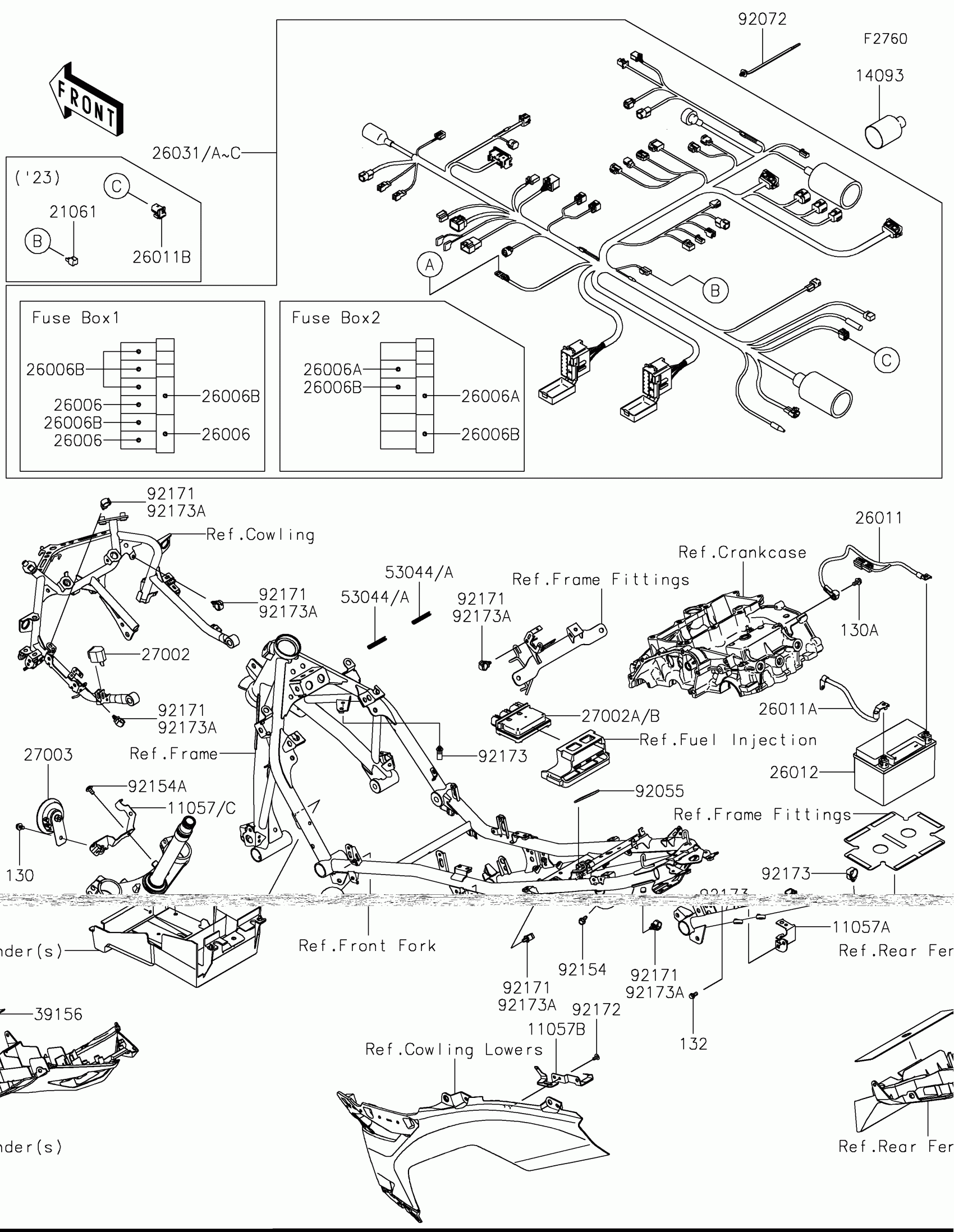

2023 Kawasaki Ninja® 400 KRT Edition Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057A

BRACKET,MAGNETIC SW.

11057-1225

1
Out of stock

11057B

BRACKET,FUSE BOX

11057-1771

1
Out of stock

11057C

BRACKET,HORN

11057-7535

1

$8.19

In stock

14093

COVER,HARNESS

14093-0720

1

$4.07

In stock

21061

RECTIFIER

21061-1003

1

$30.17

In stock

26006

1

$5.34

In stock

26006A

1

$4.32

In stock

26006B

1

$3.50

In stock

26011

1

$30.97

In stock

26011A

1

$46.38

In stock

26011B

1

$33.83

In stock

26012

1

$200.48

In stock

27002

1

$24.24

In stock

27002B

RELAY-ASSY

27002-0061

1

$171.42

In stock

27003

HORN

27003-0111

1

$69.50

In stock

39156

PAD,60X250X1

39156-2219

1

$10.20

In stock

53044A

TRIM,45MM

53044-0644

1

$4.92

In stock

92055

RING-O,50MM

92055-0954

1

$3.53

In stock

92072

1

$2.97

In stock

92154

BOLT,FLANGED,6X16

92154-0551

1

$1.44

In stock

92154A

BOLT,SOCKET,6X12

92154-2355

1

$1.66

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1

$1.20

In stock

92173

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92173A

CLAMP

92173-1951

1

$1.27

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$1.12

In stock
