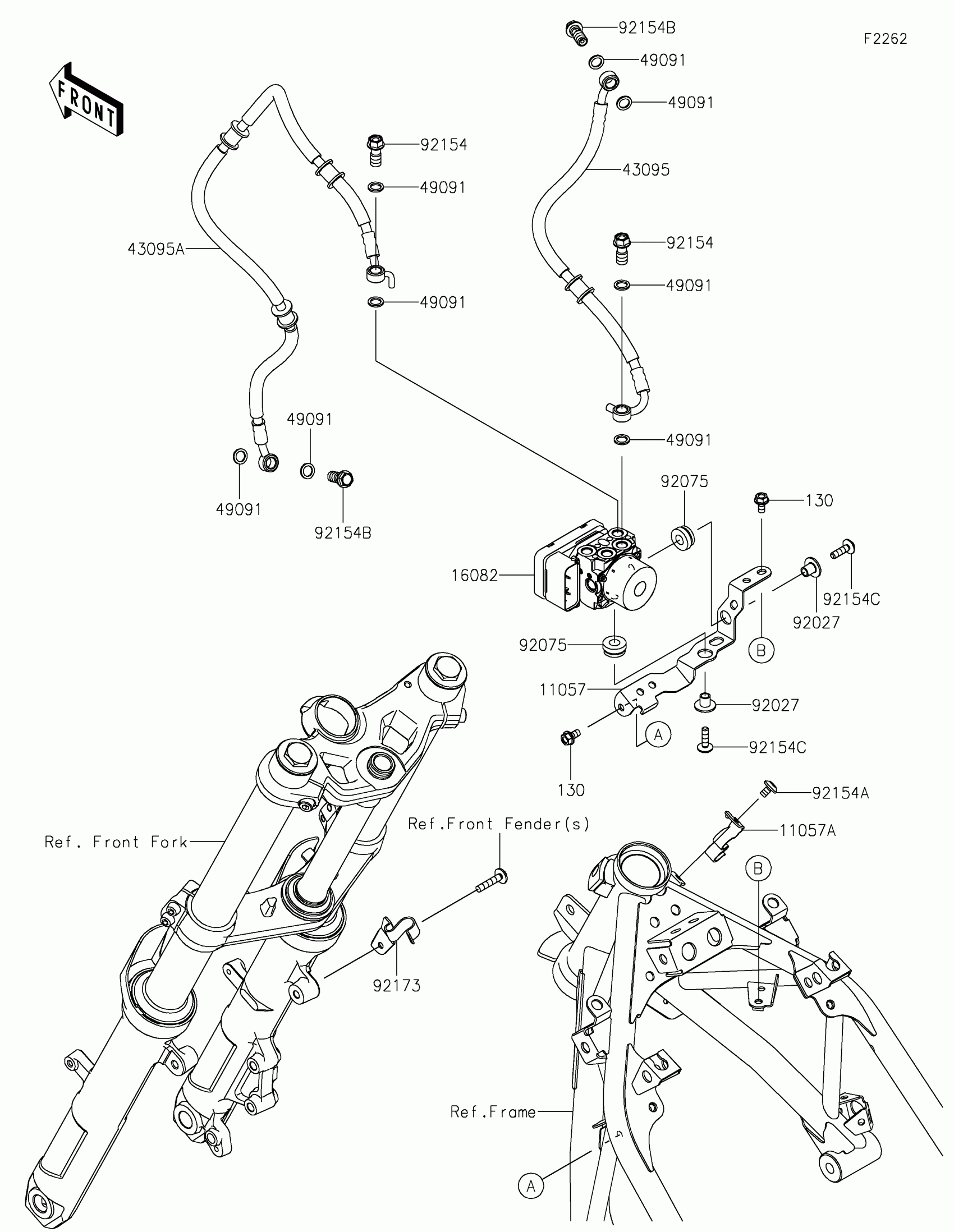

Find the part on the Brake Piping diagram for your 2023 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Ninja® 400 Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-1098

1

$9.68

In stock

11057A

BRACKET

11057-1100

1

$2.20

In stock

16082

PUMP-ASSY-OIL

16082-0785

1

$1,158.87

In stock

43095

1

$99.83

In stock

43095A

1

$131.71

In stock

49091

1

$1.81

In stock

92027

1

$4.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92154

BOLT,BANJO,10X22

92154-1138

1

$5.89

In stock

92154A

BOLT,SOCKET,6X10

92154-1693

1

$1.47

In stock

92154B

BOLT,BANJO,10X23

92154-1712

1

$3.56

In stock

92154C

BOLT,SOCKET,6X22

92154-2302

1

$1.10

In stock

92173

CLAMP,HOSE&SENSOR

92173-1774

1

$2.59

In stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock
