2021 Kawasaki Ninja® 400 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

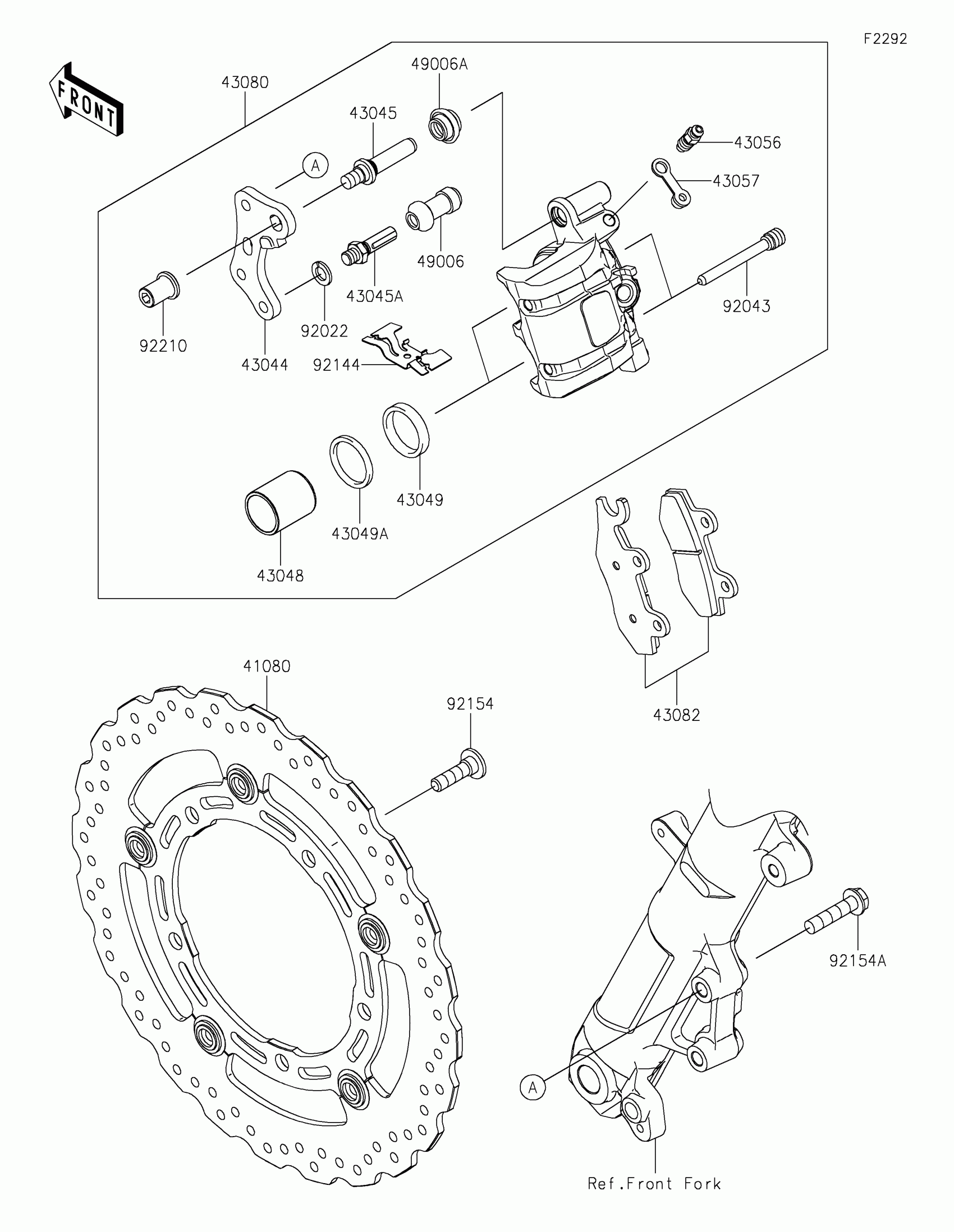

2021 Kawasaki Ninja® 400 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,BLACK+BLK

41080-0727-32L

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-1112

1
Out of stock

43045

SHAFT-CALIPER

43045-0013

1
Out of stock

43045A

SHAFT-CALIPER

43045-1010

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0244-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0175

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92043

PIN,HANGER

92043-1507

1
Out of stock

92144

SPRING,PAD

92144-1847

1
Out of stock

92154

BOLT,FLANGED,8X35

92154-1646

1
Out of stock

92154A

BOLT,SOCKET,8X30

92154-1865

1
Out of stock

92210

NUT

92210-0615

1
Out of stock
