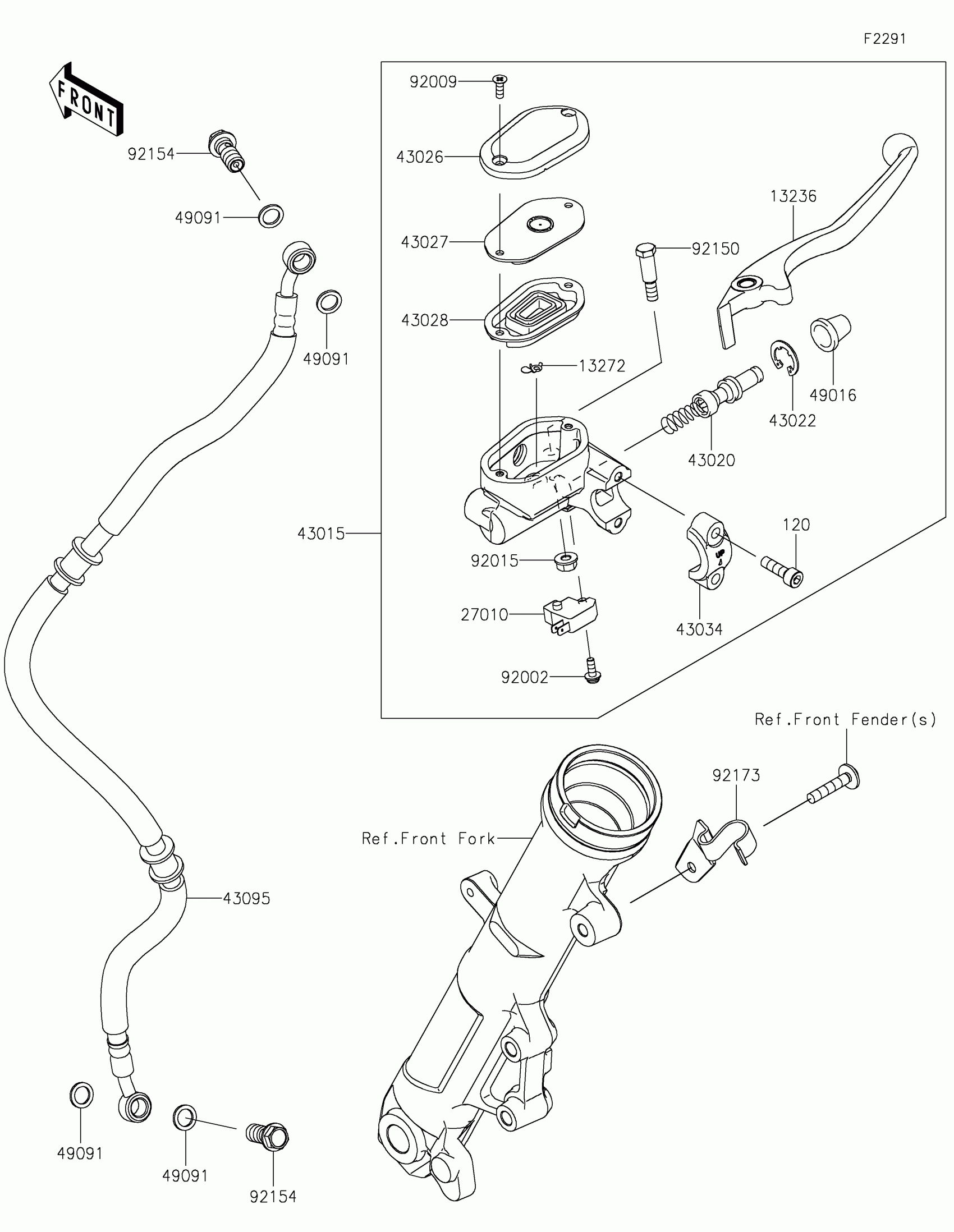

2021 Kawasaki Ninja® 400 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Ninja® 400 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP

13236-0811

1
Out of stock

13272

PLATE

13272-0573

1

$7.47

In stock

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0713

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0022

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0026

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0010

1
Out of stock

43028

DIAPHRAGM

43028-0022

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43095

HOSE-BRAKE,FR M/CYLINDER-HU

43095-1491

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1
Out of stock

92154

BOLT,BANJO,10X23

92154-1712

1
Out of stock

92173

CLAMP,HOSE&SENSOR

92173-1774

1
Out of stock

120

BOLT-SOCKET,6X20

120CB0620

1
Out of stock
