Partiron

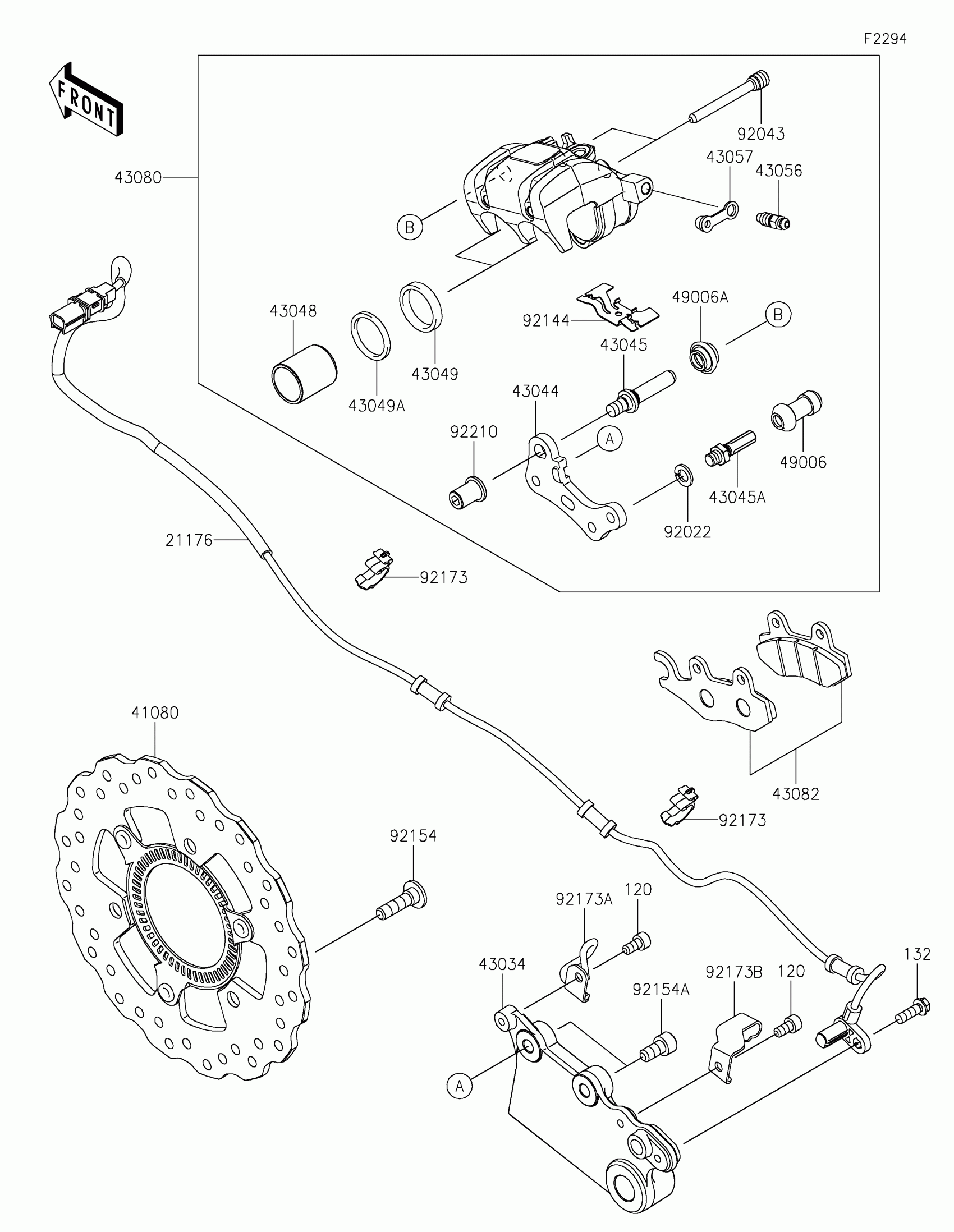

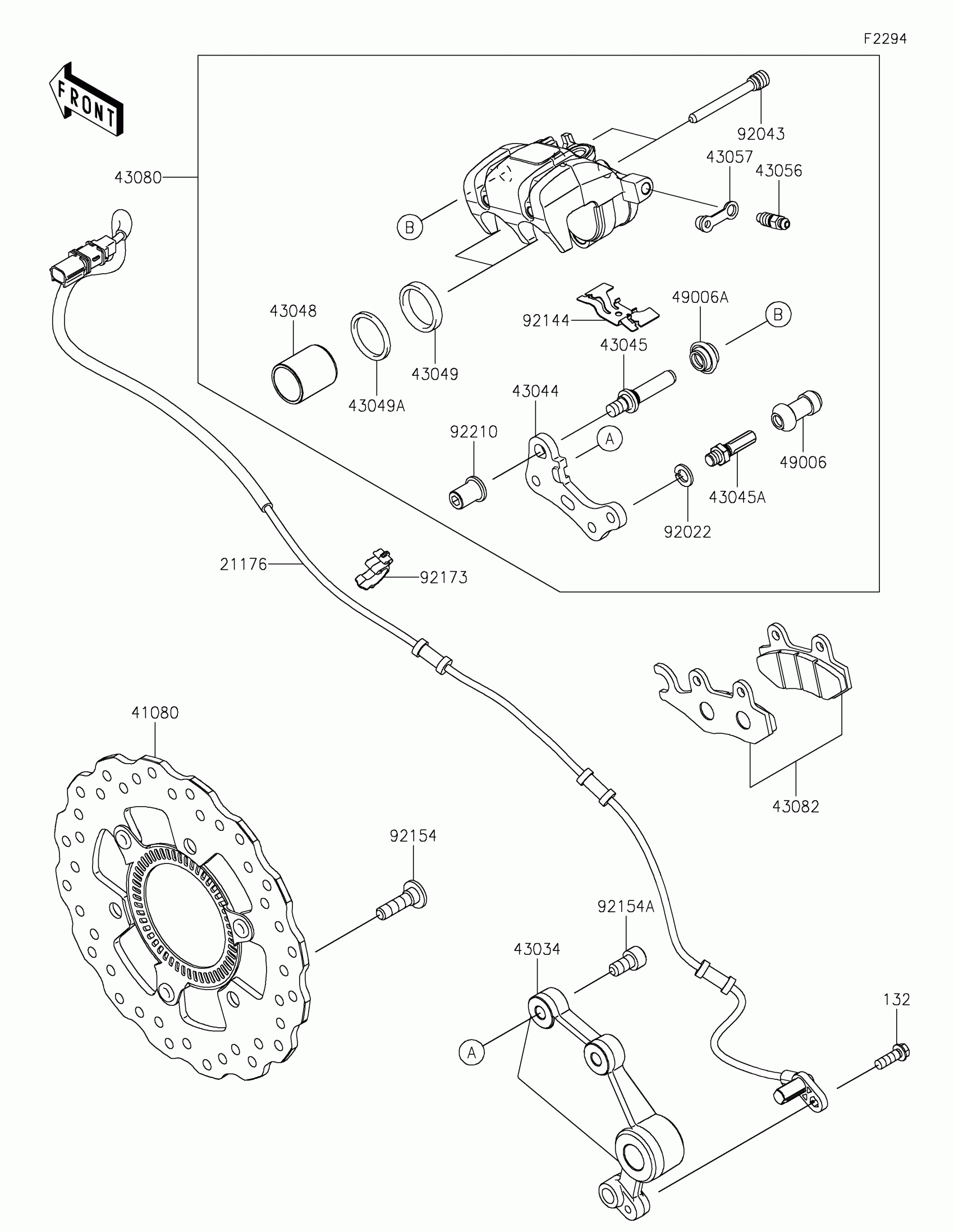

Kawasaki NINJA® 400 Rear Brake Diagram

#

Description
Price

21176

SENSOR,SPEED,RR

21176-0856

$128.05

41080

DISC,RR,W/R,BLACK

41080-0686-11H

$300.40

43034

HOLDER-BRAKE

43034-0138

$47.33

43044

HOLDER-COMP-CALIPER

43044-1112

$120.68

43045

SHAFT-CALIPER

43045-0013

$19.49

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0245-DJ

$409.71

43082

PAD-ASSY-BRAKE

43082-0128

$41.69

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1507

$10.44

92144

SPRING,PAD

92144-1847

$30.92

92154

BOLT,SOCKET,8X30

92154-1865

$3.57

92154A

BOLT-SOCKET,8X16

92154-7088

$2.46

92173

CLAMP,HOSE&SENSOR LINE

92173-1614

$1.27

92210

NUT

92210-0615

$5.46

132

BOLT-FLANGED-SMALL,6X18

132BC0618

$1.57
