2014 Kawasaki Ninja® 300 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

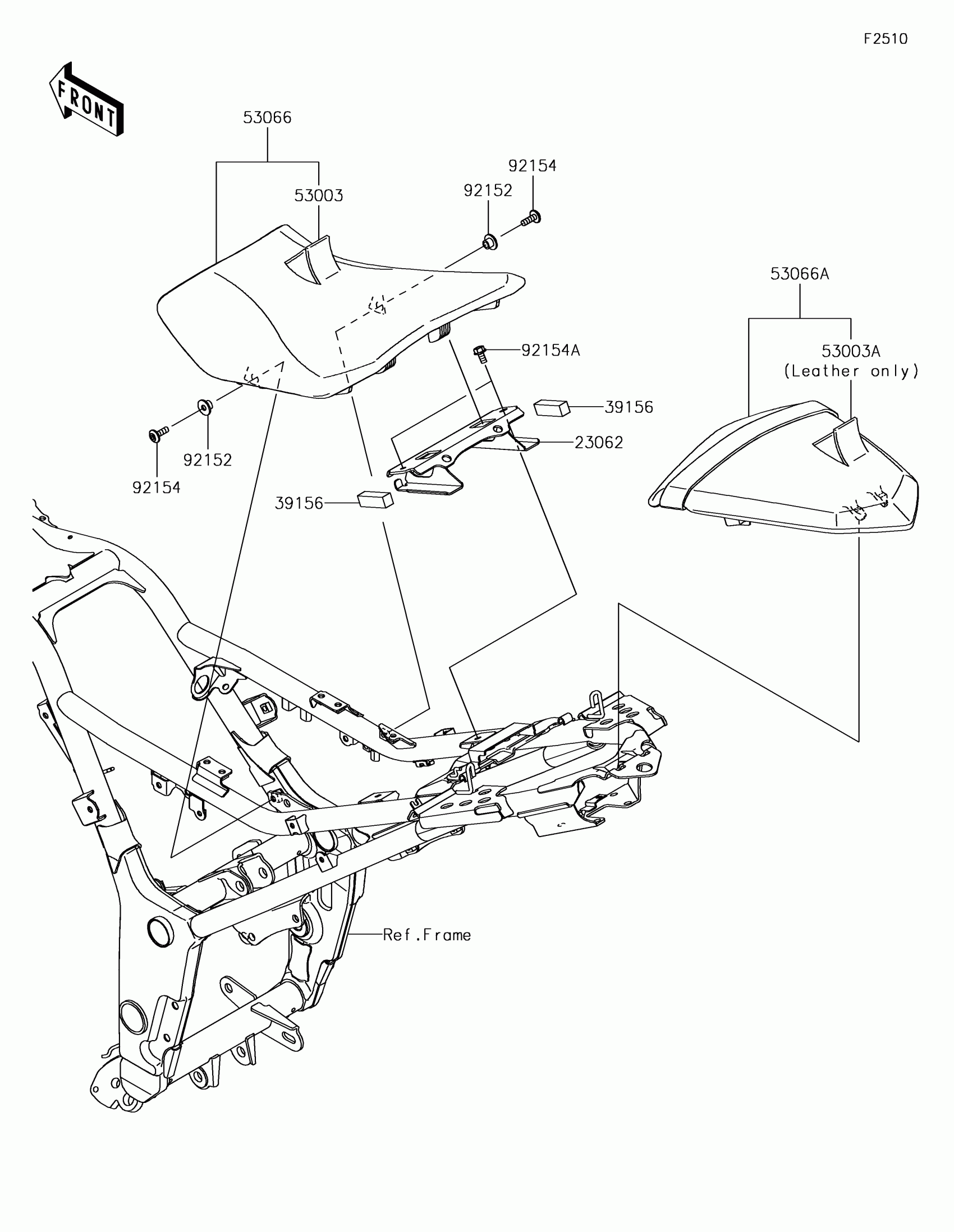

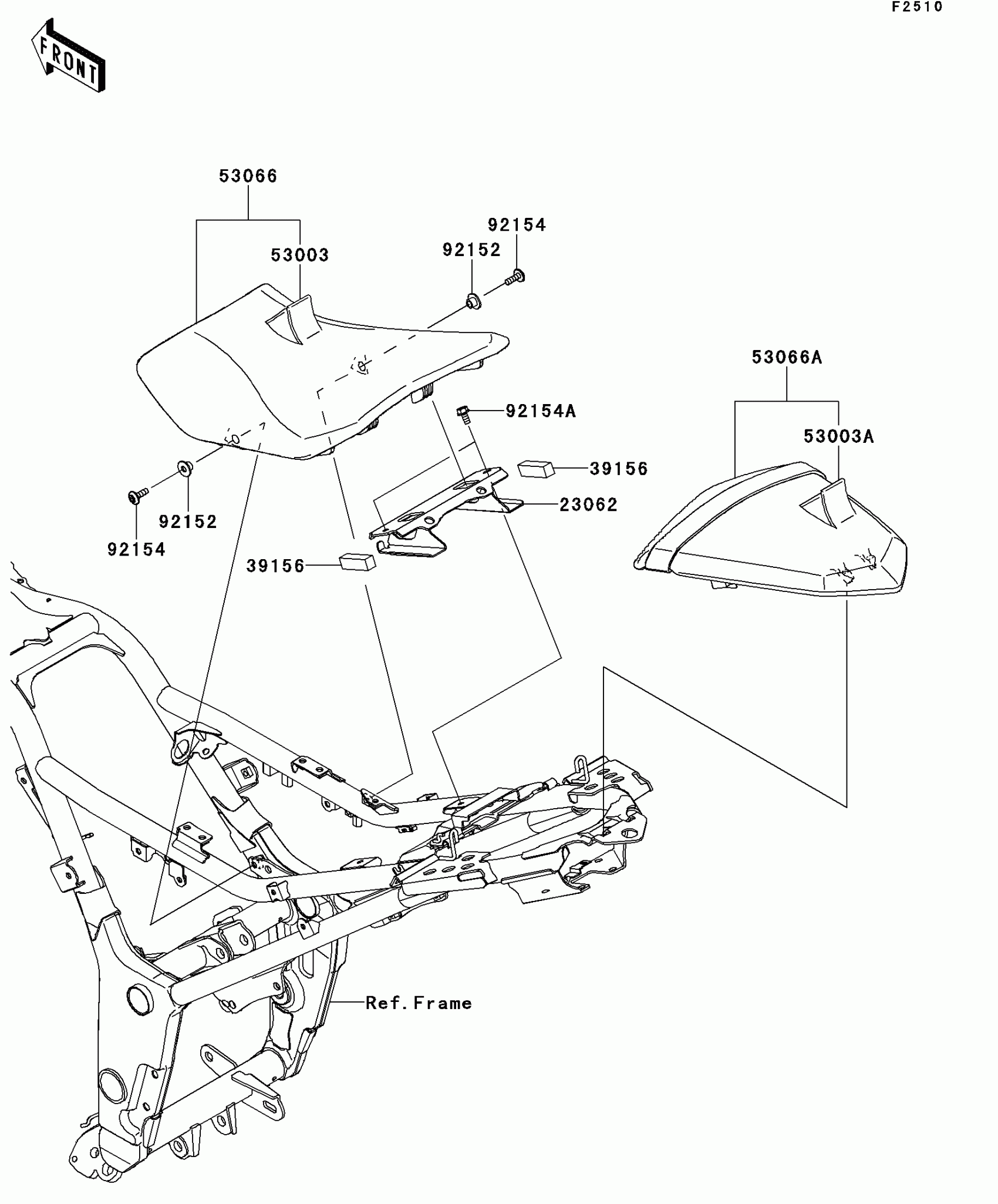

2014 Kawasaki Ninja® 300 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23062

BRACKET-COMP,SEAT

23062-0782

1

$22.83

In stock

39156

PAD,13X43X12

39156-0978

1

$1.66

In stock

53003

LEATHER,FR,BLACK

53003-0326-MA

1

$140.30

In stock

53003A

LEATHER,RR,BLACK

53003-0327-MA

1

$140.30

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0392-MA

1

$308.65

In stock

53066A

1

$225.75

In stock

92152

COLLAR

92152-0295

1

$4.47

In stock

92154

BOLT,SOCKET,6X18

92154-1026

1

$1.68

In stock

92154A

BOLT,FLANGED,6X12

92154-1050

1

$1.68

In stock
