2014 Kawasaki Ninja® 300 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

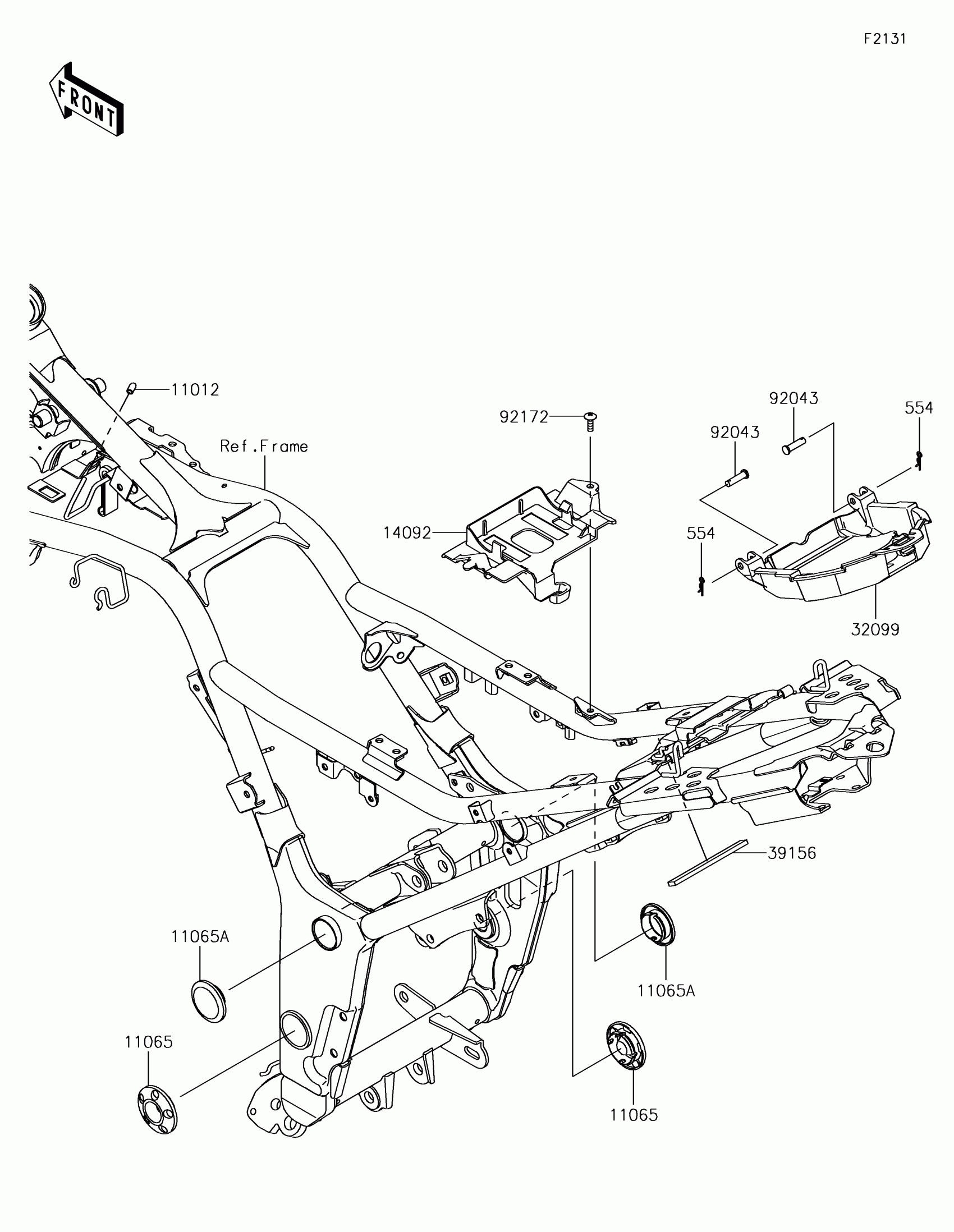

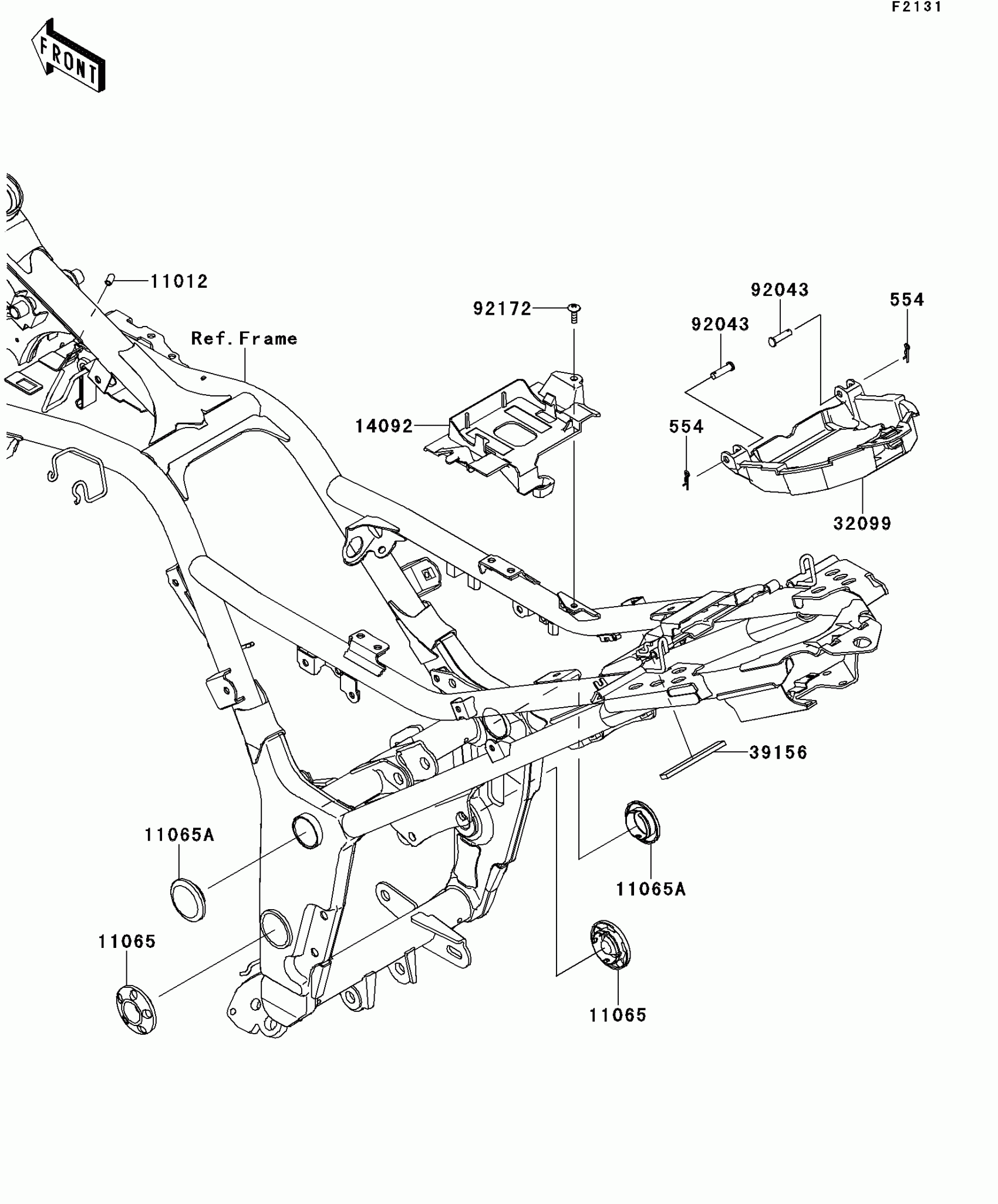

2014 Kawasaki Ninja® 300 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1438

1
Out of stock

11065

CAP,SWING ARM BRACKET,F.S.BLK

11065-0262-18T

1
Out of stock

11065A

CAP,SWING ARM BRACKET,F.S.BLK

11065-0748-18T

1
Out of stock

14092

COVER,BATTERY

14092-0920

1
Out of stock

32099

CASE,TOOL

32099-0721

1
Out of stock

39156

PAD,10X90X4

39156-0990

1
Out of stock

92043

PIN,6X23

92043-0746

1
Out of stock

92172

SCREW,5X16

92172-0322

1
Out of stock

554

PIN-SNAP,1.2X21.2

554DA0600

1
Out of stock
