2017 Kawasaki Ninja 300 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2017 Kawasaki Ninja 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

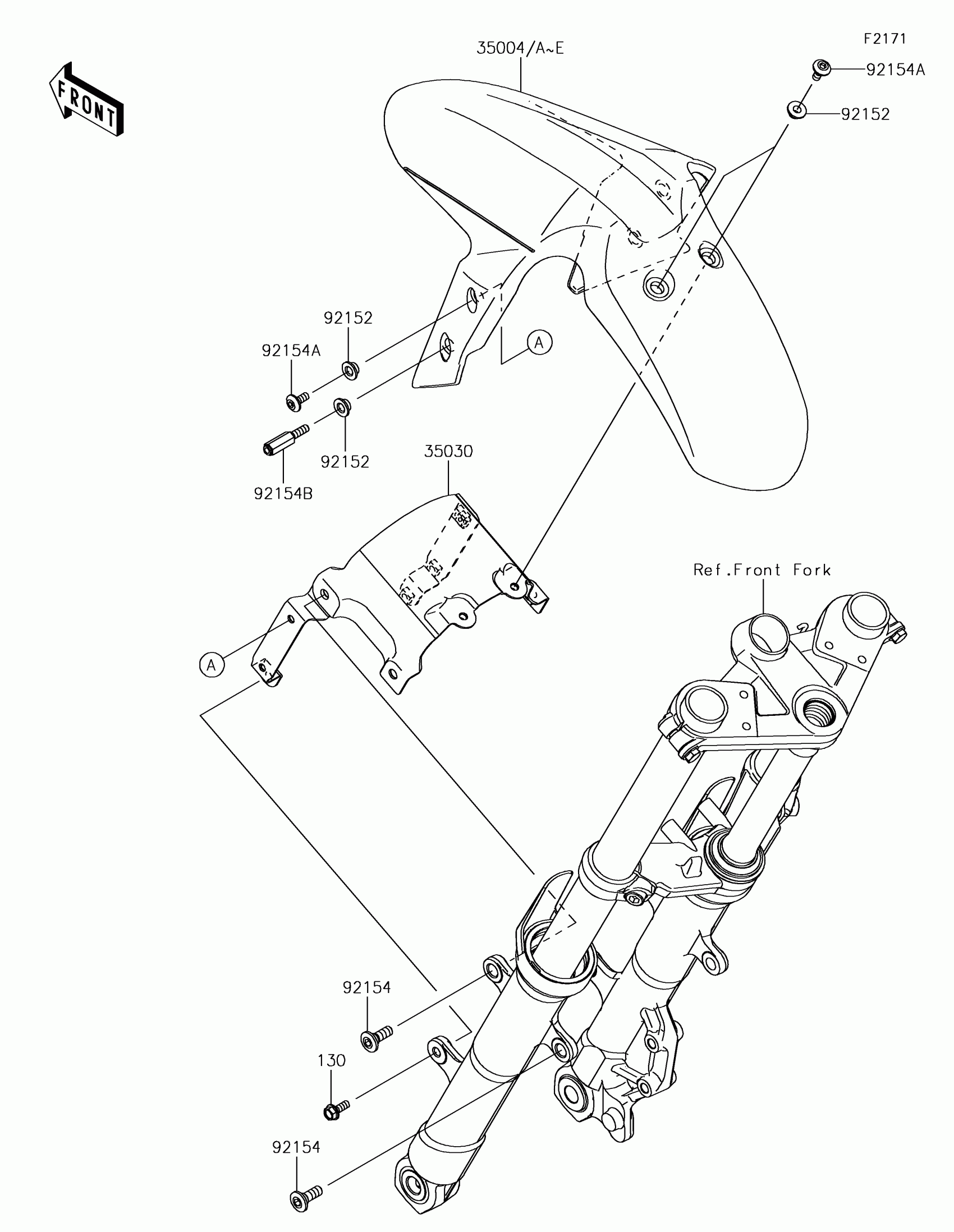

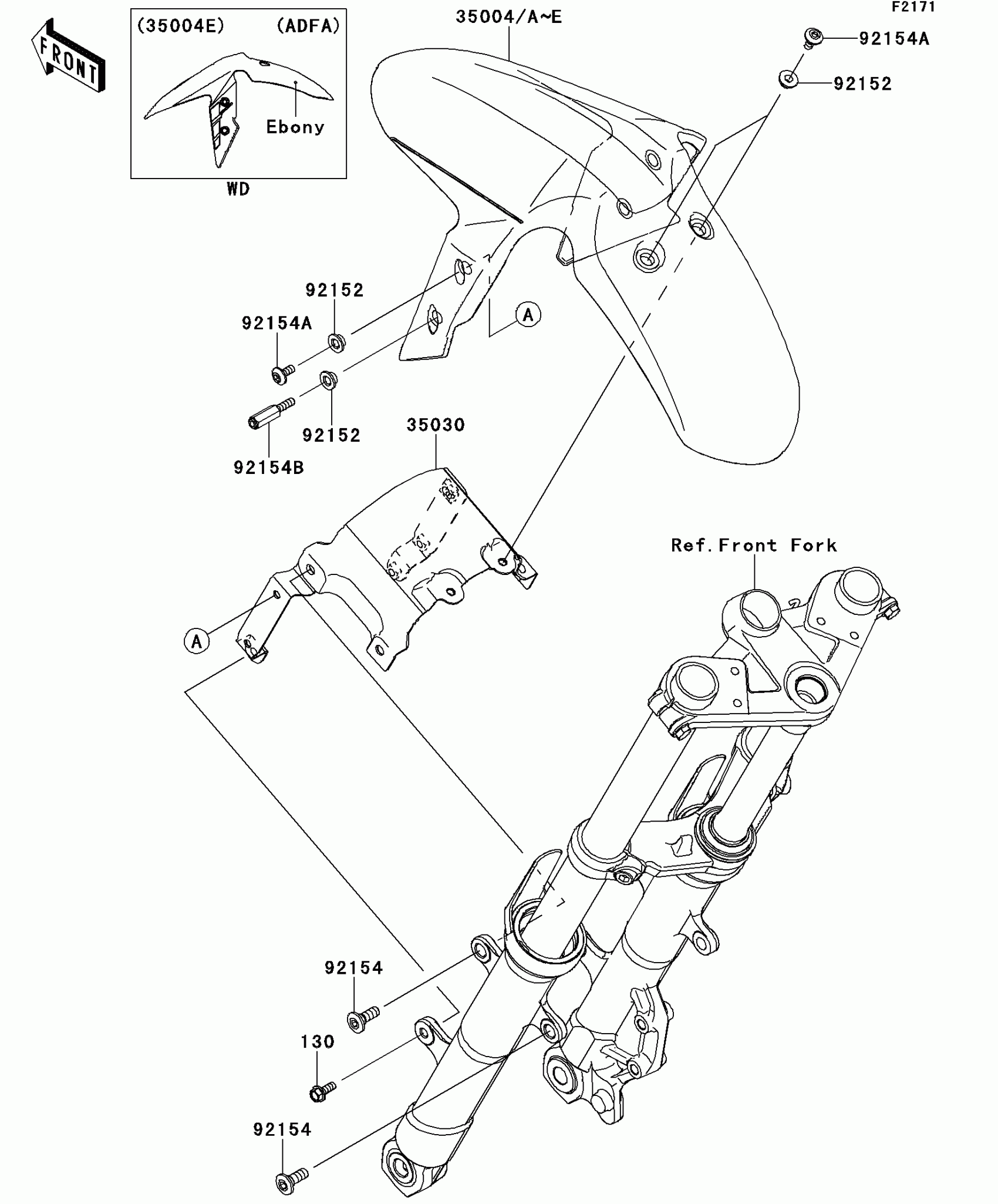

2017 Kawasaki Ninja 300 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

35004B

FENDER-FRONT,P.B.WHITE

35004-0318-54X

1
Out of stock

35004C

FENDER-FRONT,C.P.BLUE

35004-0318-723

1
Out of stock

35030

BRACE-ASSY,FRONT FENDER

35030-0055

1
Out of stock

92152

COLLAR,6.8X10(16)X6.6

92152-0842

1
Out of stock

92154

BOLT,SOCKET,8X23

92154-0300

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-0932

1
Out of stock

92154B

BOLT,6X20

92154-1020

1
Out of stock
