2014 Kawasaki Ninja® 300 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

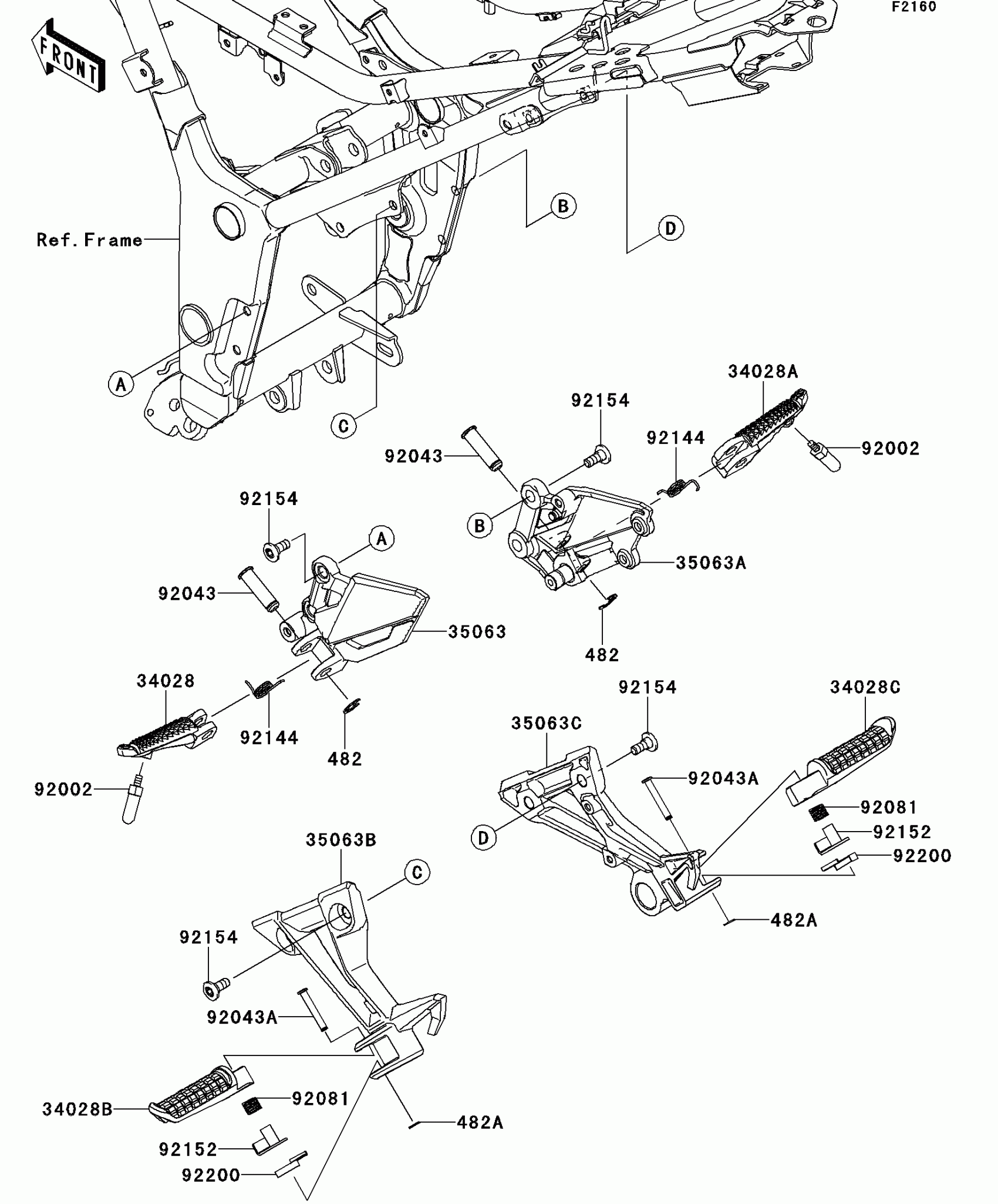

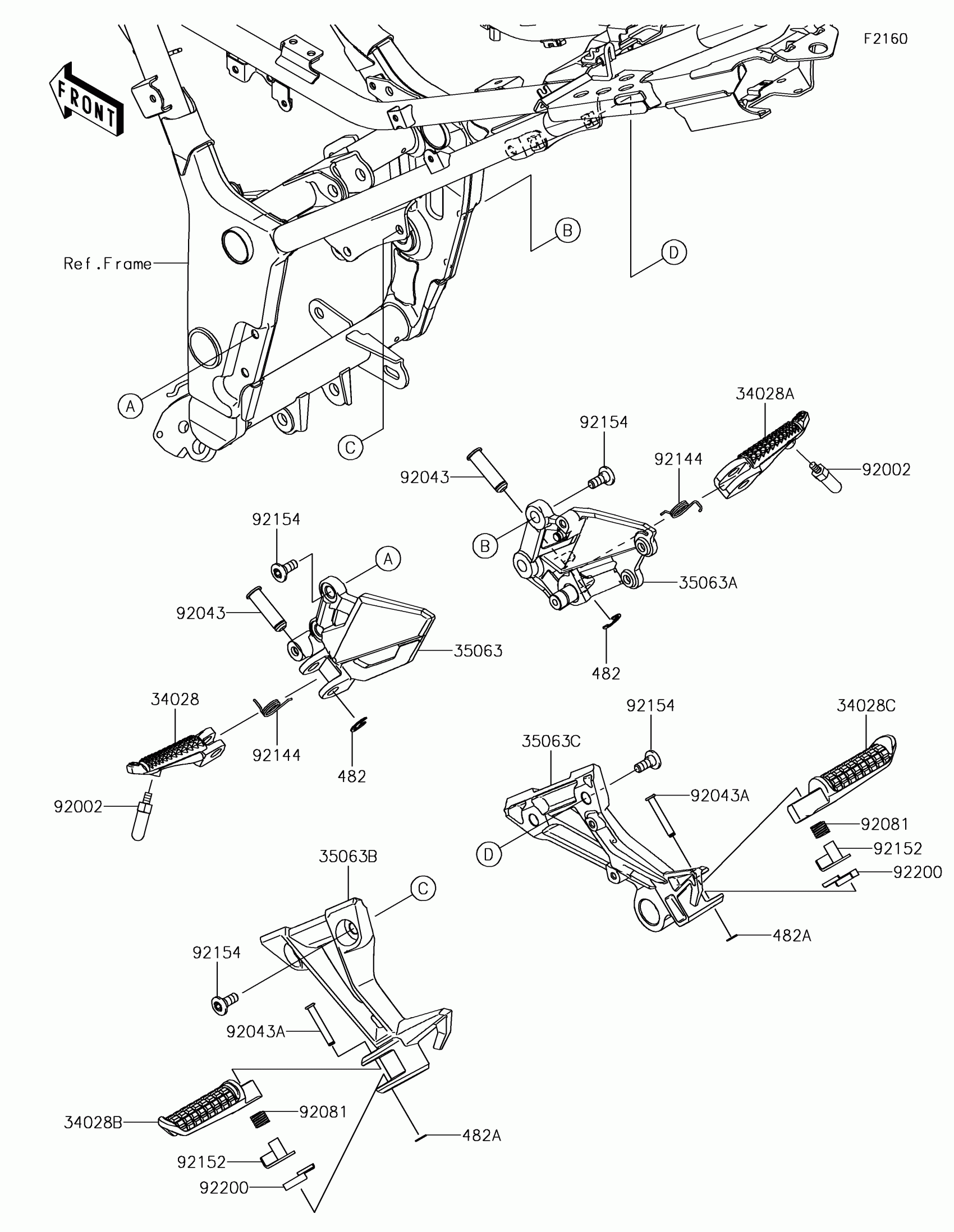

2014 Kawasaki Ninja® 300 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34028

STEP,FR,LH

34028-0318

1

$46.52

In stock

34028A

STEP,FR,RH

34028-0319

1

$52.41

In stock

34028B

STEP,RR,LH

34028-1488

1

$61.01

In stock

34028C

STEP,RR,RH

34028-1489

1

$67.74

In stock

35063

1

$120.48

In stock

35063A

1

$120.48

In stock

35063B

1

$135.30

In stock

35063C

1

$135.30

In stock

92002

BOLT,BANK SENSOR

92002-1995

1
Out of stock

92043

PIN,12X37.5

92043-0026

1

$4.42

In stock

92043A

PIN,6X40

92043-0200

1

$2.44

In stock

92081

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92152

COLLAR,STEP

92152-0658

1

$9.93

In stock

92154

BOLT,SOCKET,8X20

92154-0936

1

$3.26

In stock

92200

WASHER

92200-0783

1
Out of stock

482

1

$0.98

In stock

482A

CIRCLIP-TYPE-E

482EA5000

1

$1.20

In stock
