1990 Kawasaki Ninja® 250R Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

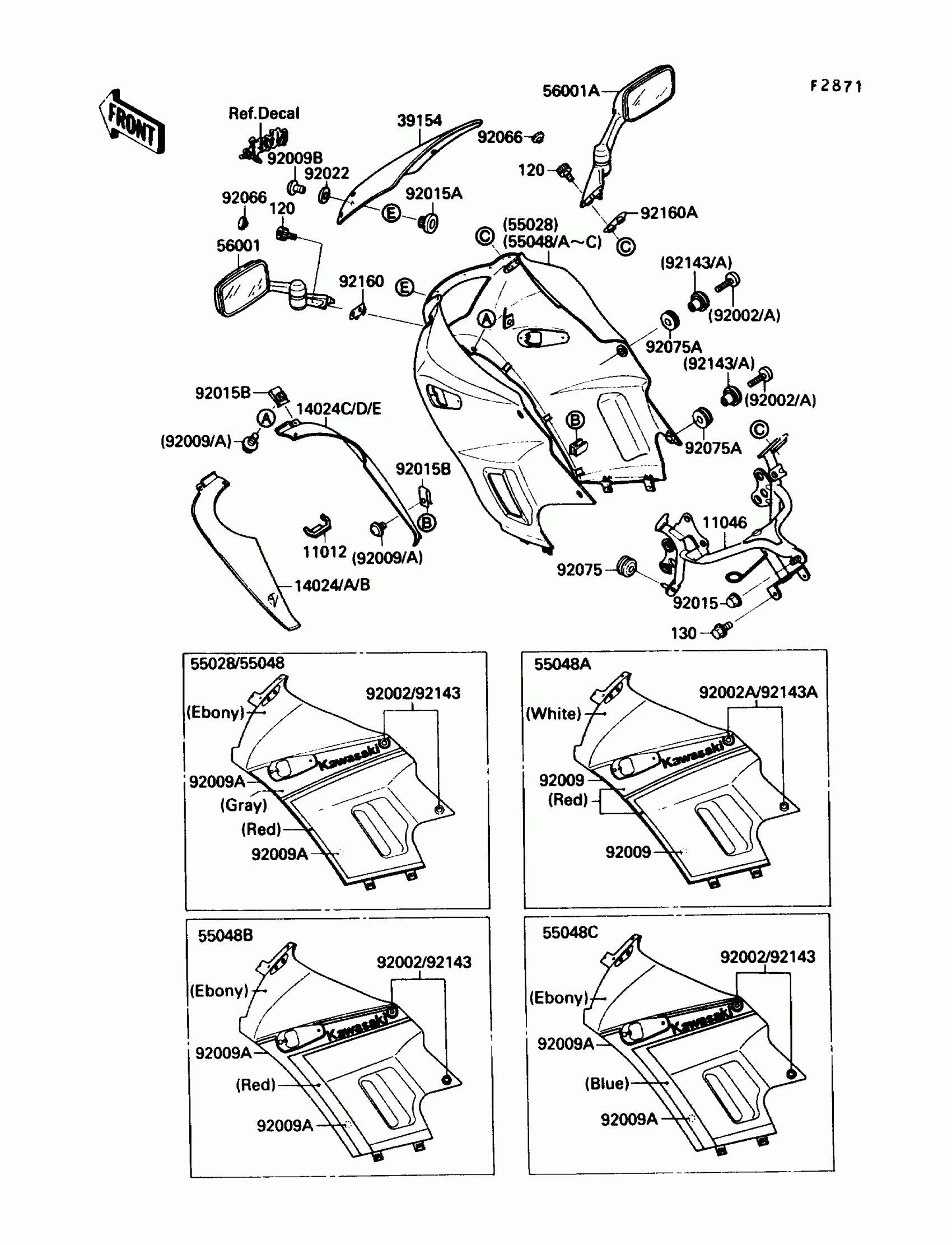

1990 Kawasaki Ninja® 250R Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,RADIATOR COVER

11012-1587

1

$9.24

In stock

11046

1

$335.88

In stock

14024

COVER,RADIATOR,LH,EBONY

14024-1580-ER

1
Out of stock

14024C

COVER,RADIATOR,RH,EBONY

14024-1581-ER

1
Out of stock

39154

WINDSHIELD

39154-1083

1

$197.35

In stock

55048B

COWLING.,UPP,EBONY

55048-5333-H8

1

$646.35

In stock

55048C

COWLING.,UPP,EBONY

55048-5335-H8

1

$982.85

In stock

56001

MIRROR-ASSY,LH

56001-1321

1

$131.16

In stock

56001A

MIRROR-ASSY,RH

56001-1322

1
Out of stock

92002

1

$4.93

In stock

92002A

BOLT,SOCKET,6X18,WHITE

92002-1889

1
Out of stock

92009A

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009B

SCREW,5X12,BLACK

92009-1490

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92015A

NUT,5MM,COWLING

92015-1343

1

$3.65

In stock

92015B

NUT,6MM

92015-1602

1

$5.84

In stock

92022

1

$3.12

In stock

92066

PLUG

92066-1216

1

$3.69

In stock

92075

DAMPER

92075-1067

1

$3.72

In stock

92075A

DAMPER

92075-1634

1

$3.72

In stock

92143

COLLAR,BLACK

92143-1226

1

$9.51

In stock

92143A

COLLAR,WHITE

92143-1273

1

$13.83

In stock

92160

DAMPER,MIRROR,LH

92160-1060

1

$8.37

In stock

92160A

DAMPER,MIRROR,RH

92160-1061

1

$8.37

In stock

120

BOLT-SOCKET,8X40

120S0840

1
Out of stock

130

BOLT-FLANGED

130J0610

1
Out of stock
