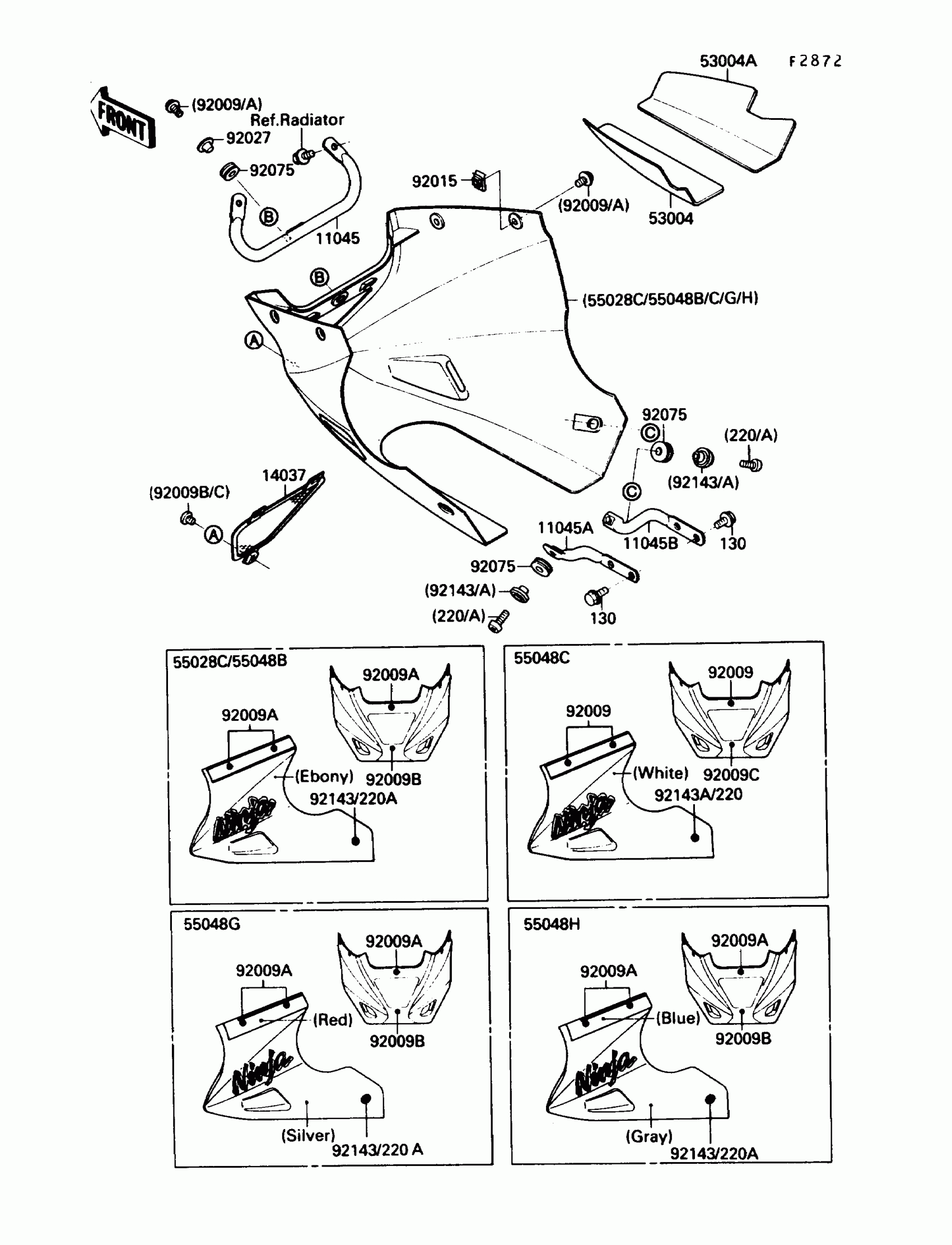

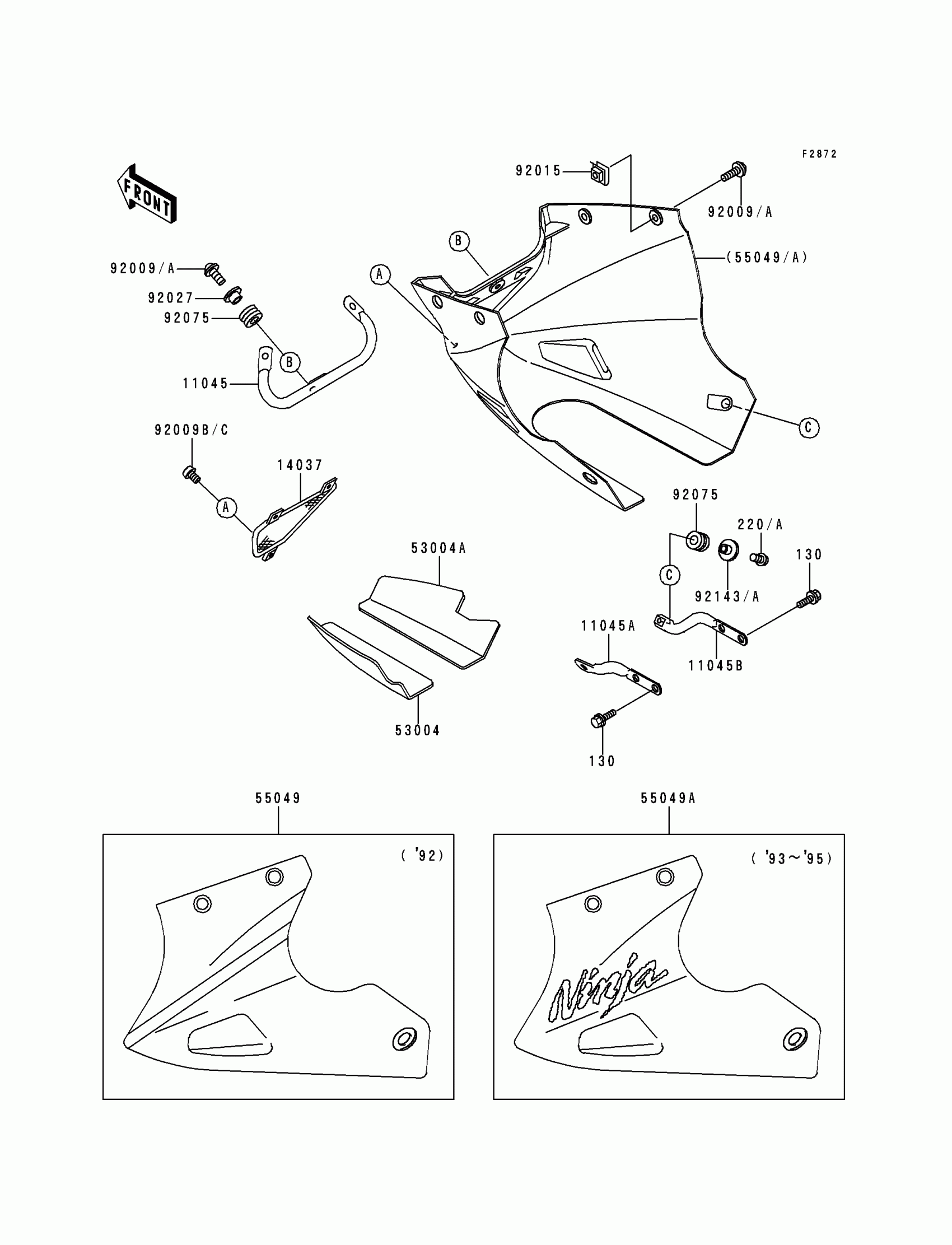

Kawasaki Ninja® 250R Cowling Lowers Diagram

Description

Price

11045

BRACKET,LOWER COWLING,FR

11045-1861

$39.56

11045A

BRACKET,LOWER COWLING,RR,LH

11045-1864

$19.61

11045B

BRACKET,LOWER COWLING,RR,RH

11045-1865

$19.61

14037

SCREEN

14037-1094

$43.89

53004

MAT,LOWER COWLING,LH

53004-1053

$46.93

53004A

MAT,LOWER COWLING,RH

53004-1054

$46.93

55048G

COWLING.,LWR,SILVER 25

55048-5334-DG

$344.92

55048H

COWLING.,LWR,P.C.GRAY

55048-5336-T2

$520.14

92009

SCREW,6X18

92009-1111

$3.97

92009A

SCREW,6X18,BLACK

92009-1181

$2.29

92009B

SCREW,5X16,BLACK

92009-1301

$2.51

92015

NUT,6MM

92015-1602

$5.84

92027

COLLAR,L=9.1,BLACK

92027-1935

$5.10

92075

DAMPER

92075-1634

$3.72

92143

COLLAR,BLACK

92143-1226

$9.51

92143A

COLLAR,WHITE

92143-1273

$13.83

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

220A

SCREW-PAN-CROS, 6X20

220C0620

Unavailable
