1987 Kawasaki Ninja® 250R Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1987 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

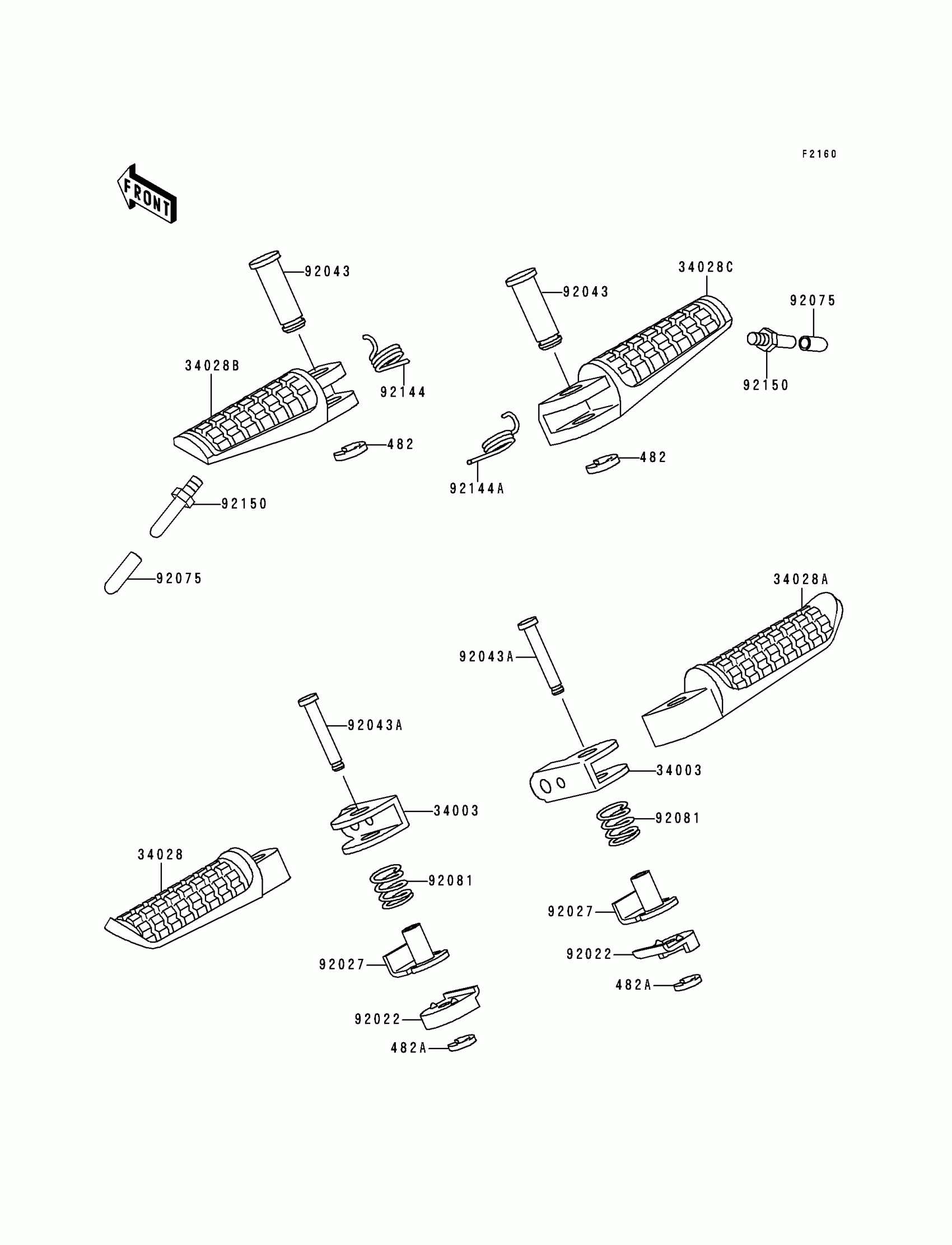

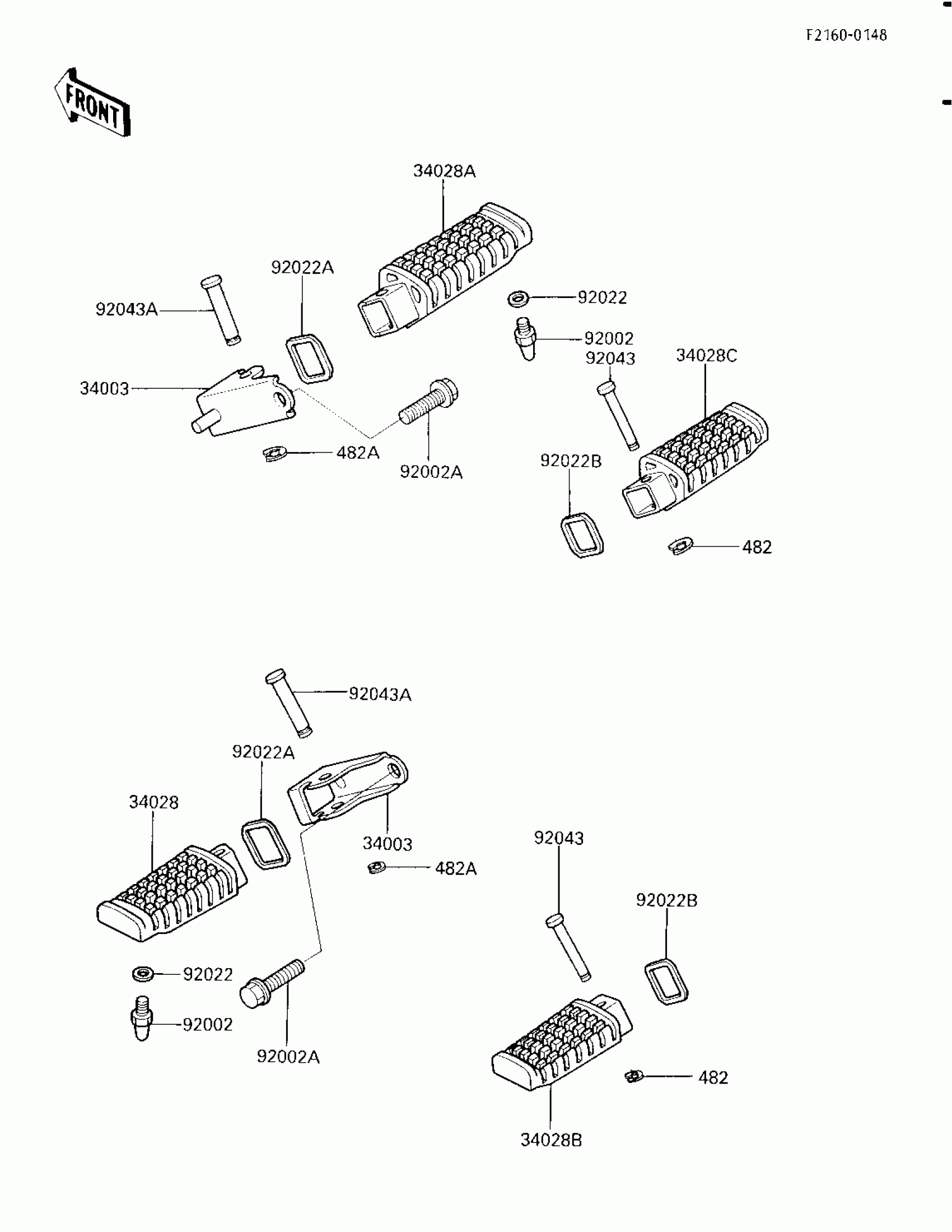

1987 Kawasaki Ninja® 250R Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,FR

34003-1256

1

$35.08

In stock

34028

STEP,FR,LH

34028-1193

1
Out of stock

34028A

STEP,FR,RH

34028-1194

1
Out of stock

34028B

STEP,RR,LH

34028-1195

1
Out of stock

34028C

STEP,RR,RH

34028-1196

1
Out of stock

92002

BOLT,BANK SENSOR

92002-1742

1
Out of stock

92002A

BOLT

92002-1807

1
Out of stock

92022

WASHER,6.5X11.5X2

92022-1506

1

$3.53

In stock

92022A

WASHER,STEP FITTING

92022-1796

1

$4.41

In stock

92022B

WASHER,STEP FITTING

92022-1797

1

$4.61

In stock

92043

PIN,6X38.5

92043-1328

1

$4.61

In stock

92043A

PIN,8X36.5

92043-1339

1

$7.71

In stock

482

1

$1.20

In stock

482

CIRCLIP-TYPE-E

482L7000

1

$3.12

In stock
