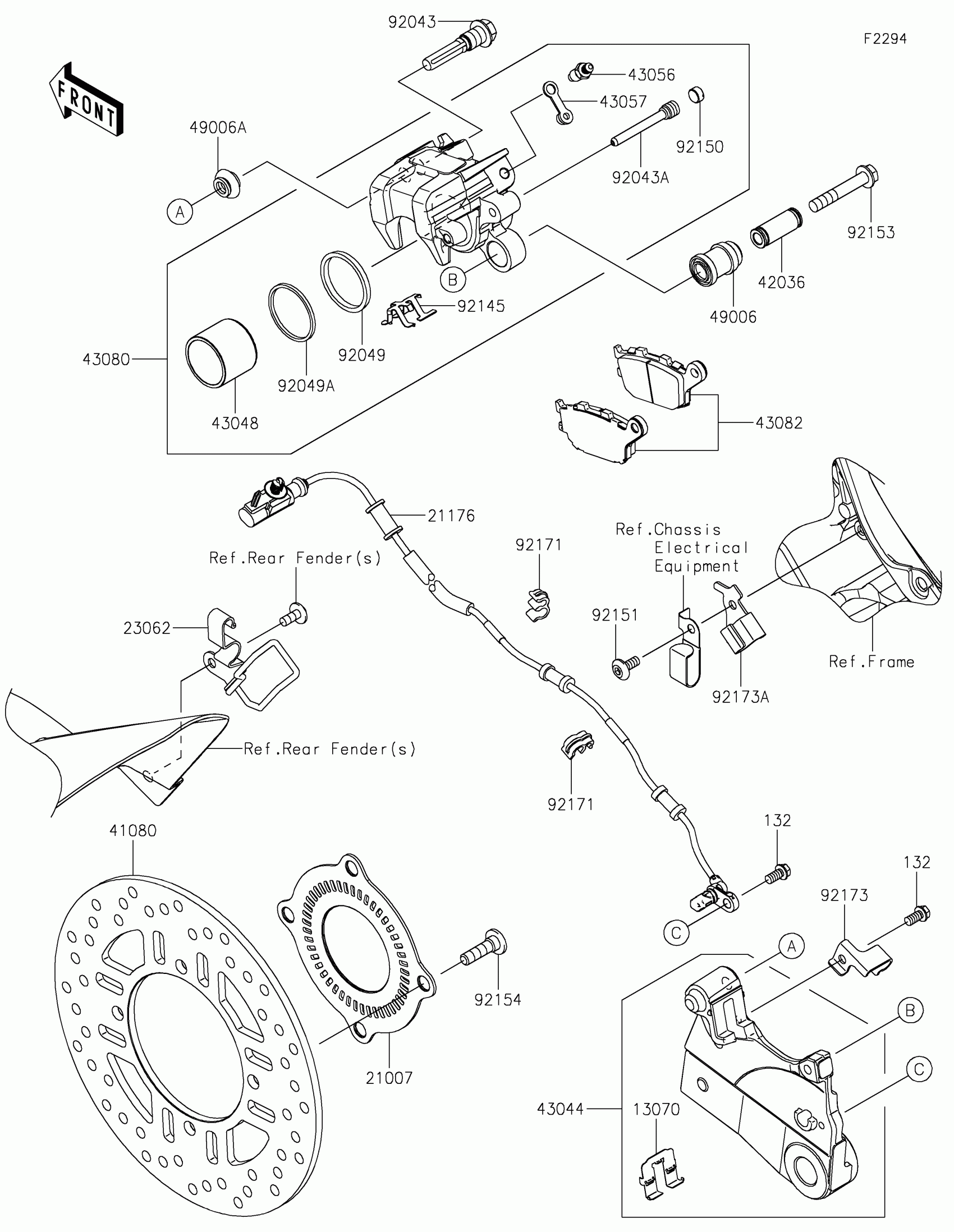

Kawasaki Ninja 1100SX Rear Brake Diagram

#

Description
Price

13070

GUIDE,BRAKE PAD

13070-0076

$11.32

21007

ROTOR,SENSOR,RR

21007-0682

$91.38

21176

SENSOR,RR WHEEL SPEED

21176-1214

$113.63

23062

BRACKET-COMP,RR FENDER

23062-1570

$35.44

41080

DISC,RR

41080-0718

$352.17

42036

SLEEVE

42036-0050

$7.61

43044

HOLDER-COMP-CALIPER,RR

43044-0101

$164.09

43048

PISTON-CALIPER

43048-0008

$31.05

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0050-DJ

$348.27

43082

PAD-ASSY-BRAKE

43082-0073

$77.94

49006

BOOT

49006-0058

$12.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN

92043-0137

$10.34

92043A

PIN,HANGER

92043-1520

$7.81

92049

SEAL-OIL

92049-1449

$3.81

92049A

SEAL-OIL

92049-1450

$3.85

92145

SPRING,PAD

92145-0493

$5.87

92150

BOLT,PLUG

92150-1692

$5.99

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92153

BOLT,FLANGED

92153-1826

$7.84

92154

BOLT,SOCKET,8X30

92154-1865

$3.57

92171

CLAMP

92171-0921

$4.14

92173

CLAMP

92173-1798

$3.15

92173A

CLAMP

92173-2860

$7.80

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49
