2025 Kawasaki Ninja 1100SX Front Master Cylinder Diagram

← All diagrams

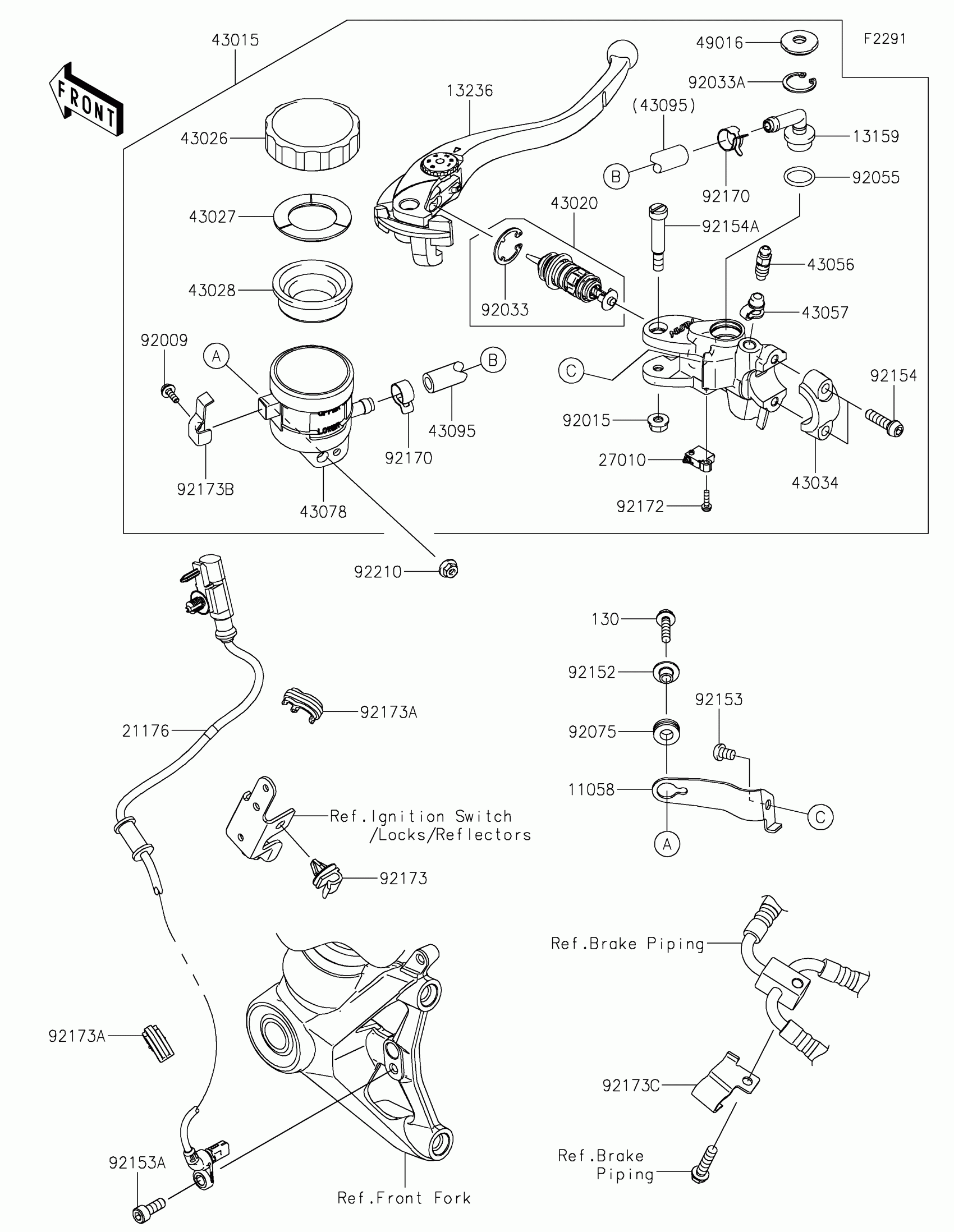

Find the part on the Front Master Cylinder diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja 1100SX Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,RESERVOIR

11058-1359

1
Out of stock

13159

CONNECTOR

13159-1061

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-0882

1
Out of stock

21176

SENSOR,FR WHEEL SPEED

21176-1213

1
Out of stock

27010

SWITCH,BRAKE

27010-0915

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0855

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0010

1
Out of stock

43026

CAP-BRAKE

43026-1051

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1051

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

1
Out of stock

43056

BREATHER-BRAKE

43056-1056

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43078

RESERVOIR

43078-0591

1
Out of stock

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0366

1
Out of stock

49016

COVER-SEAL

49016-1147

1
Out of stock

92009

SCREW

92009-1570

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92033

RING-SNAP

92033-0034

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92075

DAMPER

92075-161

1
Out of stock

92152

COLLAR

92152-0017

1
Out of stock

92153

BOLT,6X8

92153-0578

1
Out of stock

92153A

BOLT,SOCKET,6X16

92153-1344

1
Out of stock

92154

BOLT,SOCKET,6X22

92154-1724

1
Out of stock

92154A

BOLT,LEVER

92154-1912

1
Out of stock

92170

CLAMP,HOSE

92170-1091

1
Out of stock

92172

SCREW

92172-1243

1
Out of stock

92173

CLAMP,CABLE CLIP

92173-1022

1
Out of stock

92173A

CLAMP,HOSE&SENSOR LINE

92173-1613

1
Out of stock

92173B

CLAMP

92173-1790

1
Out of stock

92173C

CLAMP

92173-2732

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

130

BOLT-FLANGED,5X20

130BB0520

1
Out of stock
