2025 Kawasaki Ninja 1100SX Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

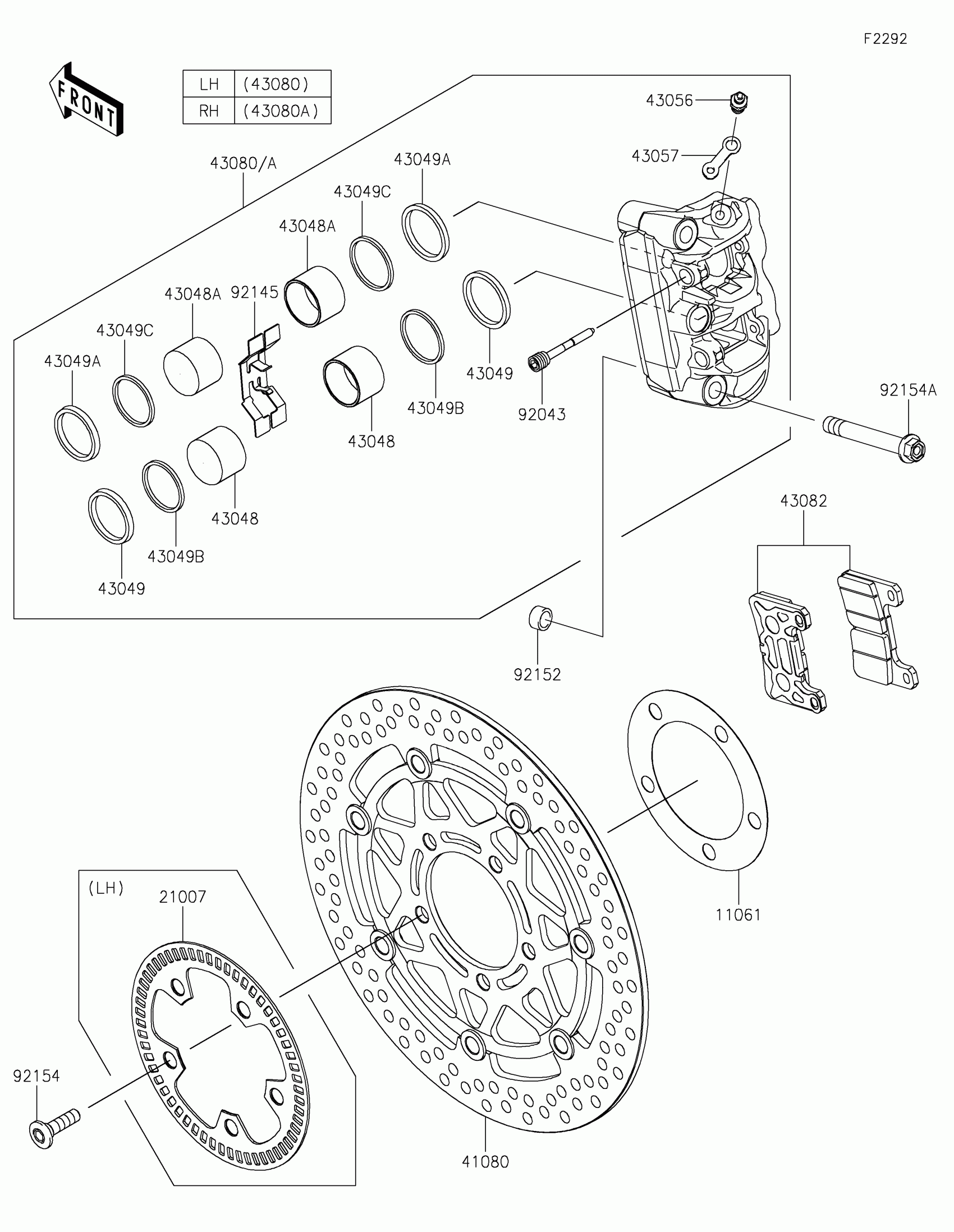

2025 Kawasaki Ninja 1100SX Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC PLATE

11061-0029

1

$14.31

In stock

21007

ROTOR,FR WHEEL

21007-0701

1

$30.77

In stock

41080

DISC,FR,BLACK+SIL

41080-0714-5C

1

$396.64

In stock

43048

PISTON-CALIPER

43048-0023

1

$70.45

In stock

43048A

PISTON-CALIPER

43048-0024

1

$70.45

In stock

43049

PACKING,PISTON

43049-0012

1

$10.62

In stock

43049A

PACKING,PISTON

43049-0013

1

$12.78

In stock

43049B

PACKING

43049-1068

1

$7.79

In stock

43049C

PACKING,WIPER

43049-1107

1

$6.37

In stock

43056

BREATHER-BRAKE

43056-0007

1

$22.39

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$480.11

In stock

43080A

1

$480.11

In stock

43082

PAD-ASSY-BRAKE

43082-0144

1

$79.05

In stock

92043

PIN,PAD

92043-1709

1

$6.65

In stock

92145

SPRING,PAD

92145-1873

1

$17.63

In stock

92152

COLLAR,DOWEL PIN

92152-0679

1

$6.05

In stock

92154

BOLT,SOCKET,8X30

92154-1865

1

$3.72

In stock

92154A

BOLT

92154-4379

1

$10.05

In stock
