2025 Kawasaki Ninja 1100SX Brake Piping Diagram

← All diagrams

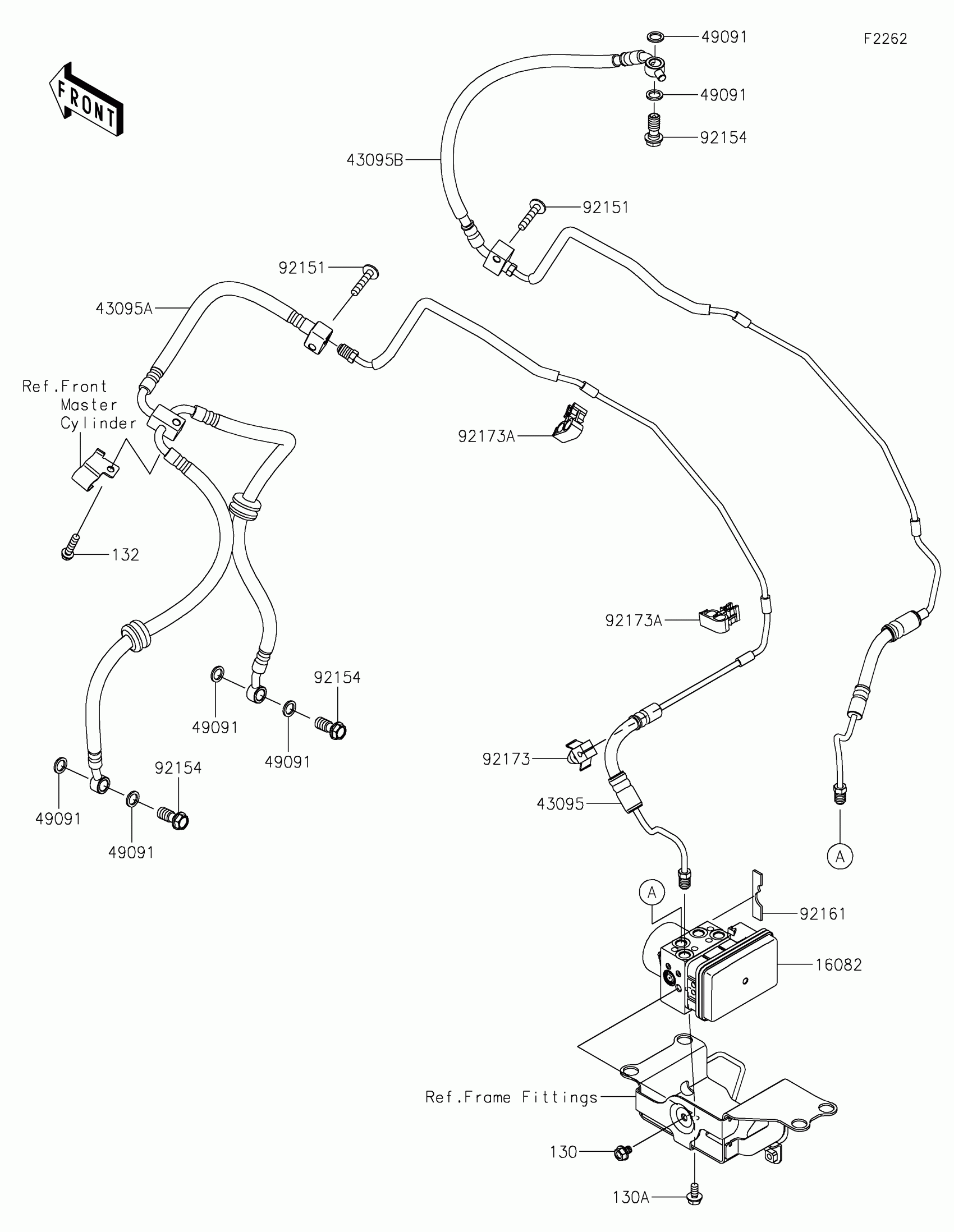

Find the part on the Brake Piping diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja 1100SX Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16082

PUMP-ASSY-OIL,ABS,BOSCH,9.3MP

16082-0914

1
Out of stock

43095

HOSE-BRAKE,FR,ABS UNIT

43095-2008

1
Out of stock

43095A

HOSE-BRAKE,FR CALIPER

43095-2010

1
Out of stock

43095B

HOSE-BRAKE,FR M/C-ABS UNIT

43095-2290

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92151

BOLT,SOCKET,6X30

92151-1605

1
Out of stock

92154

BOLT,BANJO,10X23

92154-1712

1
Out of stock

92161

DAMPER

92161-1673

1
Out of stock

92173

CLAMP

92173-0088

1
Out of stock

92173A

CLAMP,CLIP

92173-0799

1
Out of stock

130

BOLT-FLANGED,6X8

130BA0608

1
Out of stock

130A

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132BB0625

1
Out of stock
