2020 Kawasaki Ninja® 1000SX Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2020 Kawasaki Ninja® 1000SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

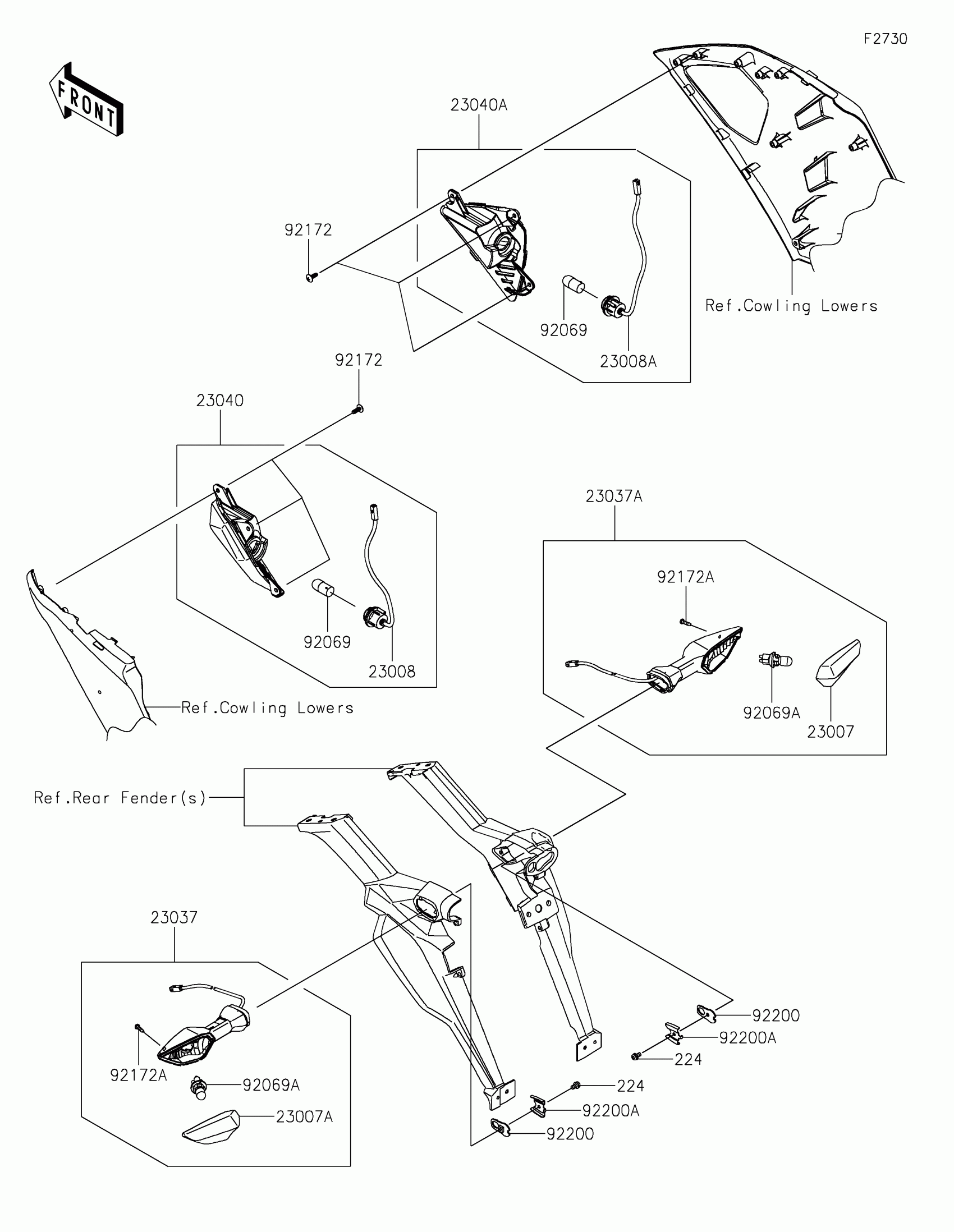

2020 Kawasaki Ninja® 1000SX Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock

23007

LENS-COMP

23007-0228

1
Out of stock

23007A

LENS-COMP

23007-0229

1
Out of stock

23008

SOCKET-ASSY,LH

23008-0167

1
Out of stock

23008A

SOCKET-ASSY,RH

23008-0168

1
Out of stock

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0442

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0443

1
Out of stock

23040

LAMP-SIGNAL,FR,LH

23040-0135

1
Out of stock

23040A

LAMP-SIGNAL,FR,RH

23040-0136

1
Out of stock

92069

BULB,12V 10W

92069-0058

1
Out of stock

92069A

BULB,12V 10W

92069-0090

1
Out of stock

92172

SCREW,TAPPING,5X14

92172-0265

1
Out of stock

92172A

SCREW,4X14

92172-1117

1
Out of stock

92200

WASHER,NUT 4MM

92200-0854

1
Out of stock

92200A

WASHER

92200-0855

1
Out of stock
