- NINJA® 1000SX
Chassis Electrical Equipment

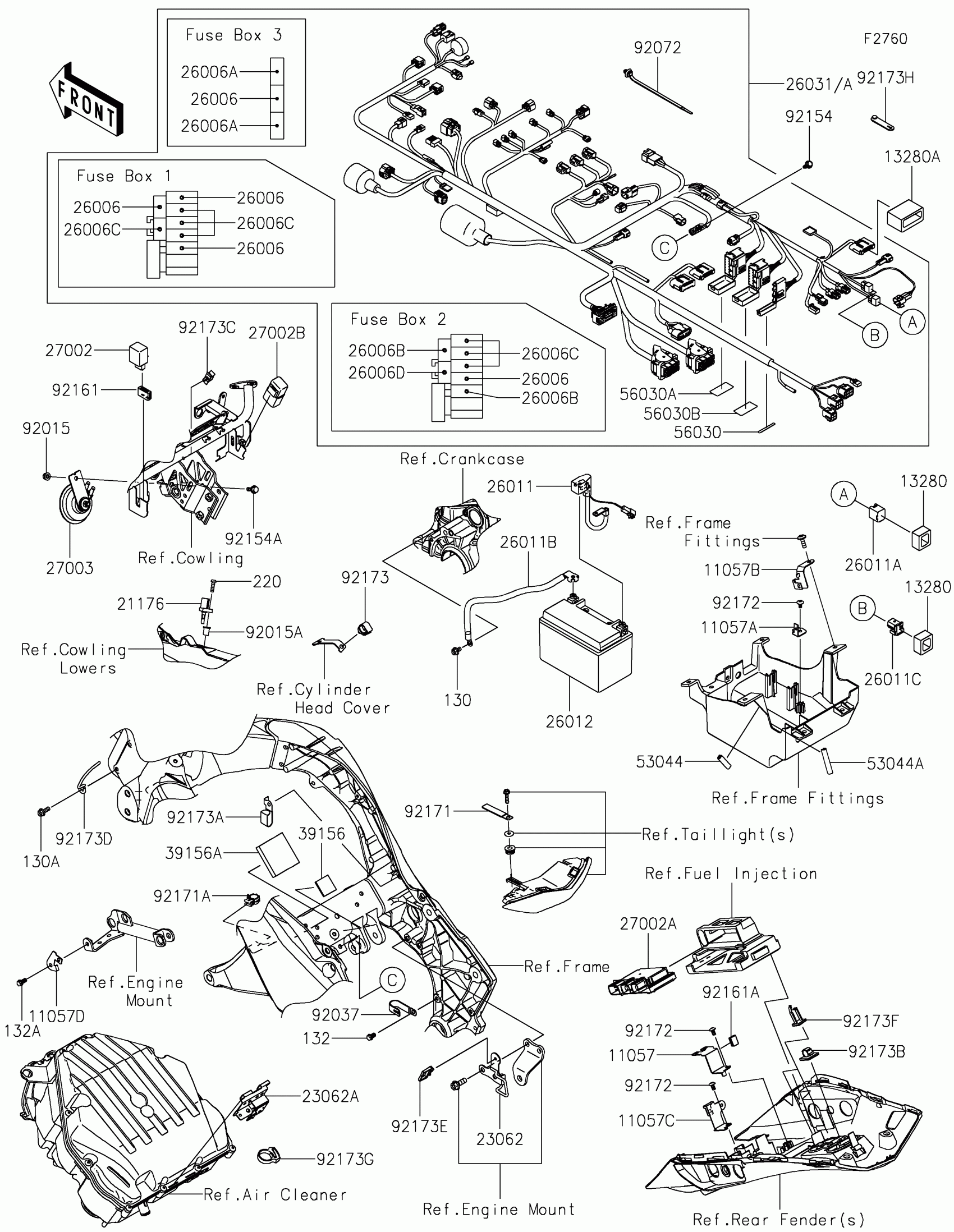

2020 Kawasaki Ninja® 1000SX Chassis Electrical Equipment Diagram
Find the part on the Chassis Electrical Equipment diagram for your 2020 Kawasaki Ninja® 1000SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11057
BRACKET,RR SIGNAL LAMP
11057-2891
11057A
BRACKET,BATTERY(+)
11057-2892
11057B
BRACKET,FUEL PUMP
11057-2893
11057C
BRACKET
11057-2894
11057D
BRACKET,QUICK-SHIFTER CONNECTO
11057-2907
13280
HOLDER,DIAG CONNECTOR
13280-0959
13280A
HOLDER
13280-0994
21176
SENSOR,AIR TEMPERATURE
21176-0048
23062
BRACKET-COMP,CABLE GUIDE
23062-0811
23062A
BRACKET-COMP,O2 SENSOR
23062-1263
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
26006A
FUSE,MINI BLADE,25A,NATURAL
26006-0020
26006B
FUSE,MINI BLADE,3A,VIOLET
26006-0054
26006C
FUSE,MINI BLADE,10A,RED
26006-1078
26006D
FUSE,MINI BLADE,30A,GREEN
26006-1080
26011
WIRE-LEAD,BATTERY(+)
26011-0252
26011A
WIRE-LEAD,CONNECTOR COVER
26011-0275
26011B
WIRE-LEAD,BATTERY(-)
26011-0822
26011C
WIRE-LEAD,DIAG CONNECTOR
26011-1901
26012
BATTERY,YTX9-BS,12V 8AH
26012-0838
26031
HARNESS,MAIN
26031-2864
27002
RELAY-ASSY,SIGNAL LAMP
27002-0006
27002A
RELAY-ASSY
27002-0042
27002B
RELAY-ASSY
27002-1086
27003
HORN
27003-0126
39156A
PAD,60X60X10
39156-2216
56030
LABEL,FUSE BOX3
56030-0400
56030A
LABEL,FUSE BOX1
56030-1376
56030B
LABEL,FUSE BOX2
56030-1528
92015
NUT,FLANGED,6MM
92015-1367
92015A
NUT,WELL,5MM
92015-1757
92037
CLAMP,CABLE,STEEL SHEET
92037-2014
92072
BAND,OS170-FT7(BLACK)
92072-1414
92154
BOLT,FLANGED,6X16
92154-0551
220
SCREW-PAN-CROS,5X18
220AB0518
92154A
BOLT,FLANGED,6X16
92154-1851
92161
DAMPER,SIGNAL RELAY
92161-0283
92171
CLAMP,L=60
92171-0652
92171A
CLAMP,EDGE CLIP
92171-1722
92172
SCREW,TAPPING,5X10
92172-0262
92173
CLAMP,12MM DIA.
92173-0736
92173A
CLAMP,84MM
92173-1008
92173B
CLAMP,DRAIN
92173-1055
92173C
CLAMP
92173-1163
92173D
CLAMP,IRON WIRE
92173-1199
92173E
CLAMP,CABLE CLIP
92173-1242
92173F
CLAMP,LOCKING WIRE SADDLE
92173-1269
92173G
CLAMP,SNP-22-0W
92173-1632
92173H
CLAMP
92173-2198
