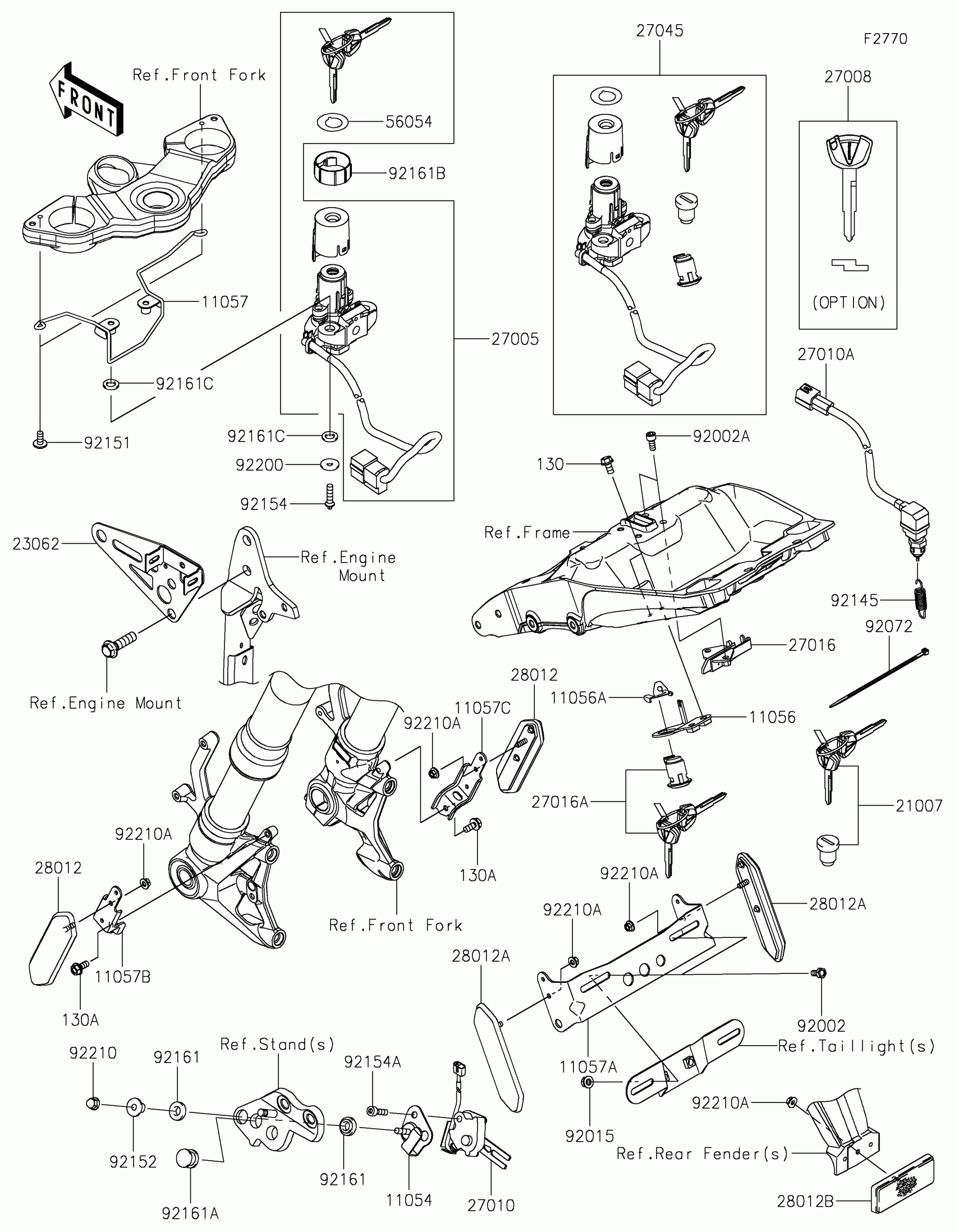

Kawasaki NINJA® 1000SX Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

11054

BRACKET,SIDE STAND SWITCH

11054-1904

$10.83

11056

BRACKET,KEY CYLINDER

11056-0264

$7.58

11056A

BRACKET

11056-1084

$12.85

11057

BRACKET,IG. SWITCH

11057-0420

$58.02

11057A

BRACKET,RR,REFLECTOR

11057-2748

$117.71

11057B

BRACKET,REFLECTOR,LH

11057-3813

$9.75

11057C

BRACKET,REFLECTOR,RH

11057-3814

$9.75

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X14

130BB0614

$1.77

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

23062

BRACKET-COMP,REGULATOR

23062-0902

$13.17

27005

SWITCH-ASSY-IGNITION

27005-0568

$178.58

27008

KEY-LOCK,BLANK

27008-0069

$19.64

27010

SWITCH,SIDE STAND

27010-0112

$72.39

27010A

SWITCH,CRUISE CONTROL CANCEL

27010-0923

$31.44

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,SEAT

27016-5368

$92.15

27045

SWITCH-ASSY

27045-5492

$560.80

28012

REFLECTOR-REFLEX,CCC

28012-0045

$15.61

28012A

REFLECTOR-REFLEX,RED,CCC

28012-0046

$15.61

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

56054

MARK,IGNITION SWITCH

56054-0969

Unavailable

92002

BOLT,6X12

92002-1132

$1.14

92002A

BOLT,SOCKET,6X14

92002-1592

$3.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92072

BAND,L=148

92072-3768

$2.99

92145

SPRING,BRAKE LAMP SWITCH

92145-1902

$7.59

92151

BOLT,SOCKET,6X14

92151-1654

$1.35

92152

COLLAR

92152-1074

$4.67

92154

BOLT,TORX,6X24

92154-1129

$3.13

92154A

BOLT,SOCKET,6X22

92154-1898

$1.54

92161

DAMPER

92161-0117

$2.36

92161A

DAMPER

92161-0118

$2.36

92161B

DAMPER

92161-1506

$4.97

92161C

DAMPER,10X17X3

92161-1507

$1.87

92200

WASHER,6X20X1.6

92200-0212

$2.31

92210

NUT,CAP,6MM

92210-0003

$0.60

92210A

NUT,FLANGED,5MM

92210-0007

$1.90
