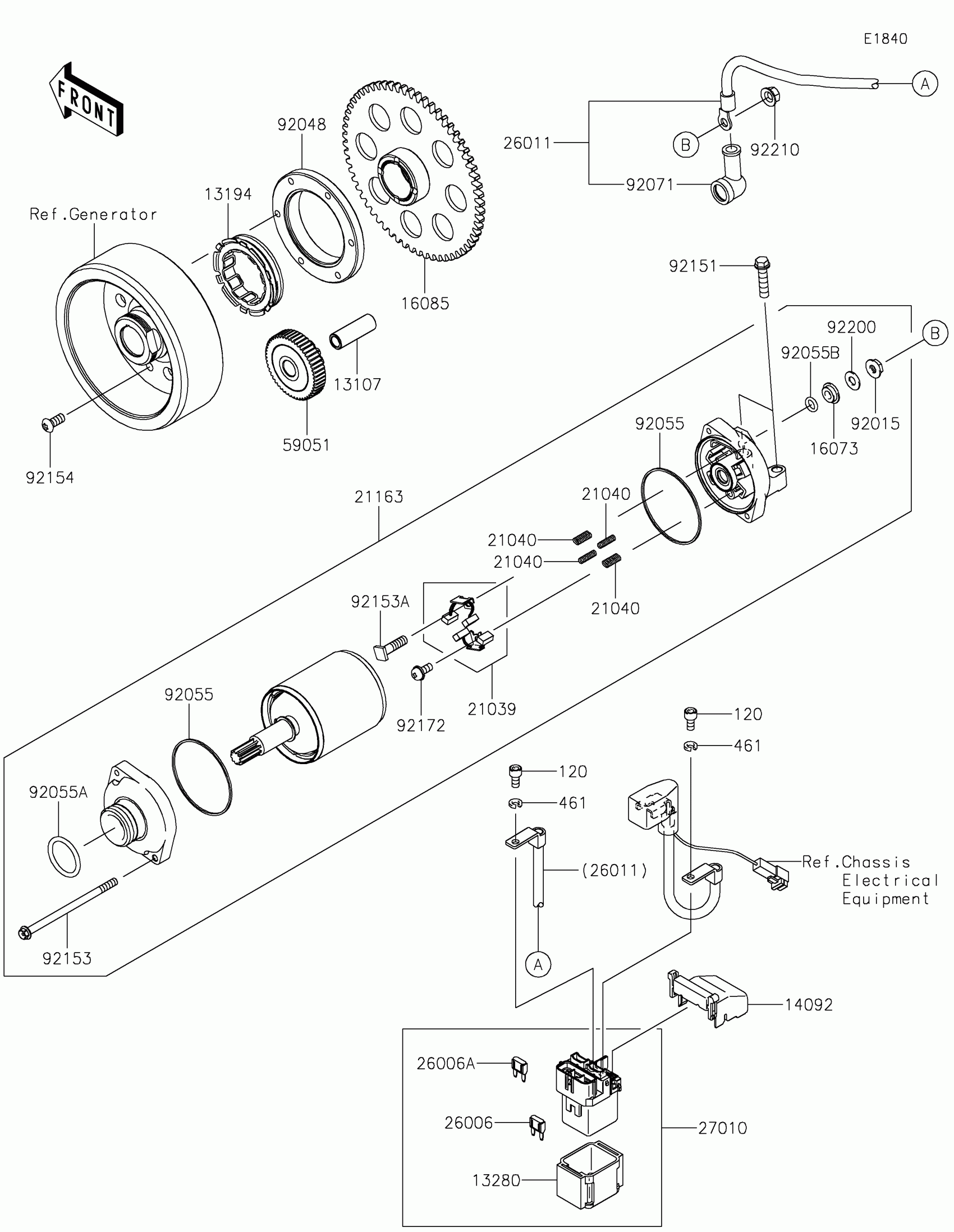

Kawasaki NINJA® 1000SX Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120CB0510

$1.23

13107

SHAFT,IDLER GEAR

13107-1377

$5.42

13194

CLUTCH-ONEWAY

13194-1096

$108.18

13280

HOLDER,MAGNETIC SWITCH

13280-0814

$11.37

14092

COVER

14092-0109

$9.22

16073

INSULATOR

16073-0053

$11.42

16085

GEAR,CLUTCH ONEWAY

16085-0609

$127.95

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0748

$619.39

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD

26011-0951

$35.79

27010

SWITCH

27010-0770

$111.05

461

WASHER-SPRING,5MM

461DB0500

$1.29

59051

GEAR-SPUR,IDLER

59051-0762

$95.42

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92048

RACE

92048-0018

$65.13

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-0024

$9.86

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92153

BOLT

92153-1850

$11.42

92153A

BOLT

92153-1866

$4.14

92154

BOLT,TORX,6X14

92154-2448

$1.10

92172

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92210

NUT,6MM

92210-0188

$1.81
