1987 Kawasaki Ninja® 1000R Swing Arm Diagram

← All diagrams

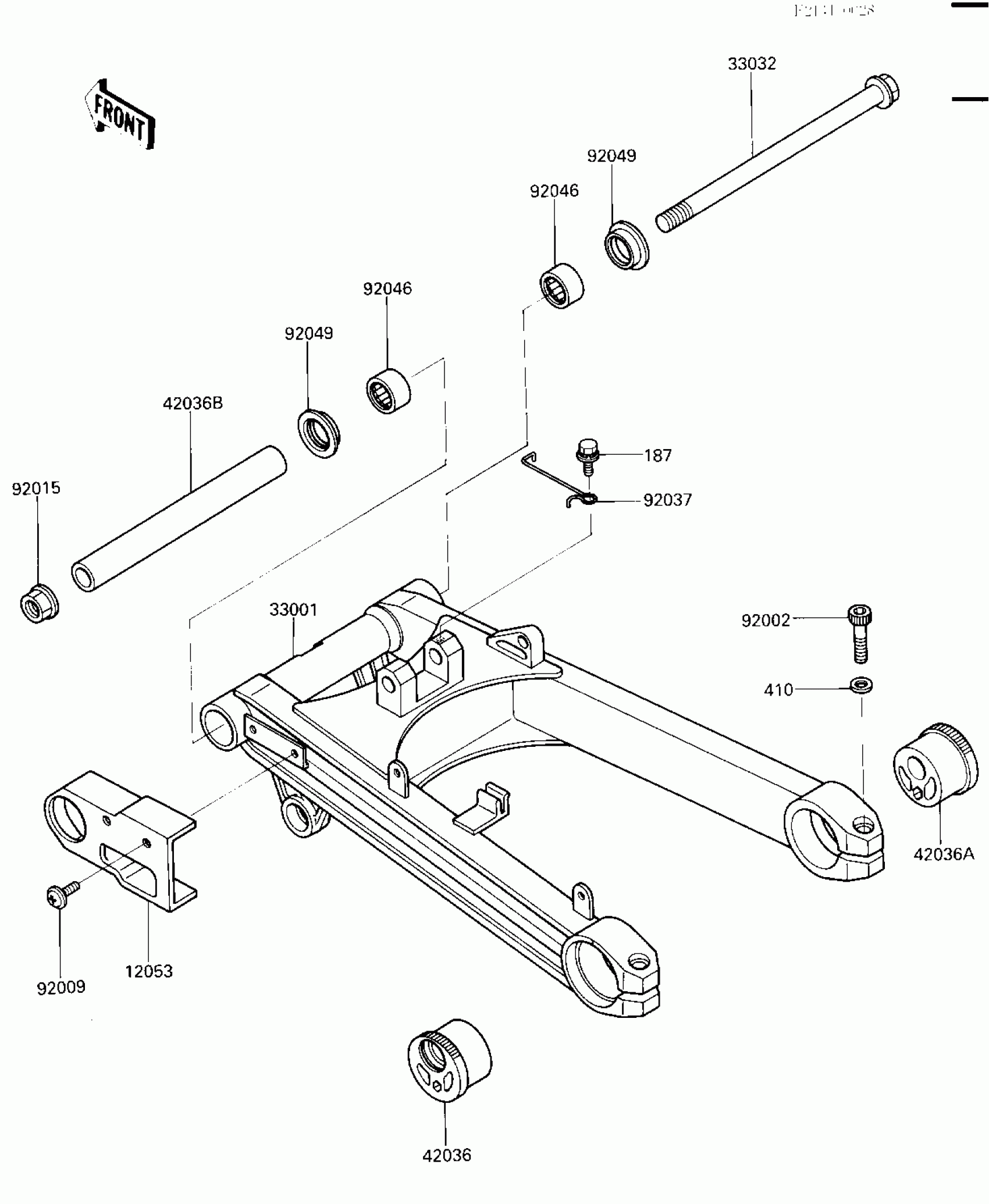

Find the part on the Swing Arm diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN

12053-1186

1
Out of stock

33001

ARM-COMP-SWING,SILVER

33001-1240-X3

1

$677.80

In stock

33032

SHAFT-SWING ARM

33032-1115

1

$79.73

In stock

42036

SLEEVE,REAR AXLE,LH

42036-1153

1

$80.17

In stock

42036A

SLEEVE,REAR AXLE,RH

42036-1154

1

$106.02

In stock

92002

BOLT,SOCKET,10X40

92002-1452

1

$7.14

In stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,16MM

92015-1041

1
Out of stock

92037

CLAMP

92037-1565

1
Out of stock

92046

1

$23.73

In stock

92049

SEAL-OIL,MHA25X33X5.7F

92049-1166

1
Out of stock

187

BOLT-UPSET-WSP

187D0610

1

$4.15

In stock

410

W-PLAIN-S

410E1000

1

$0.63

In stock
