1987 Kawasaki Ninja® 1000R Rear Suspension Diagram

← All diagrams

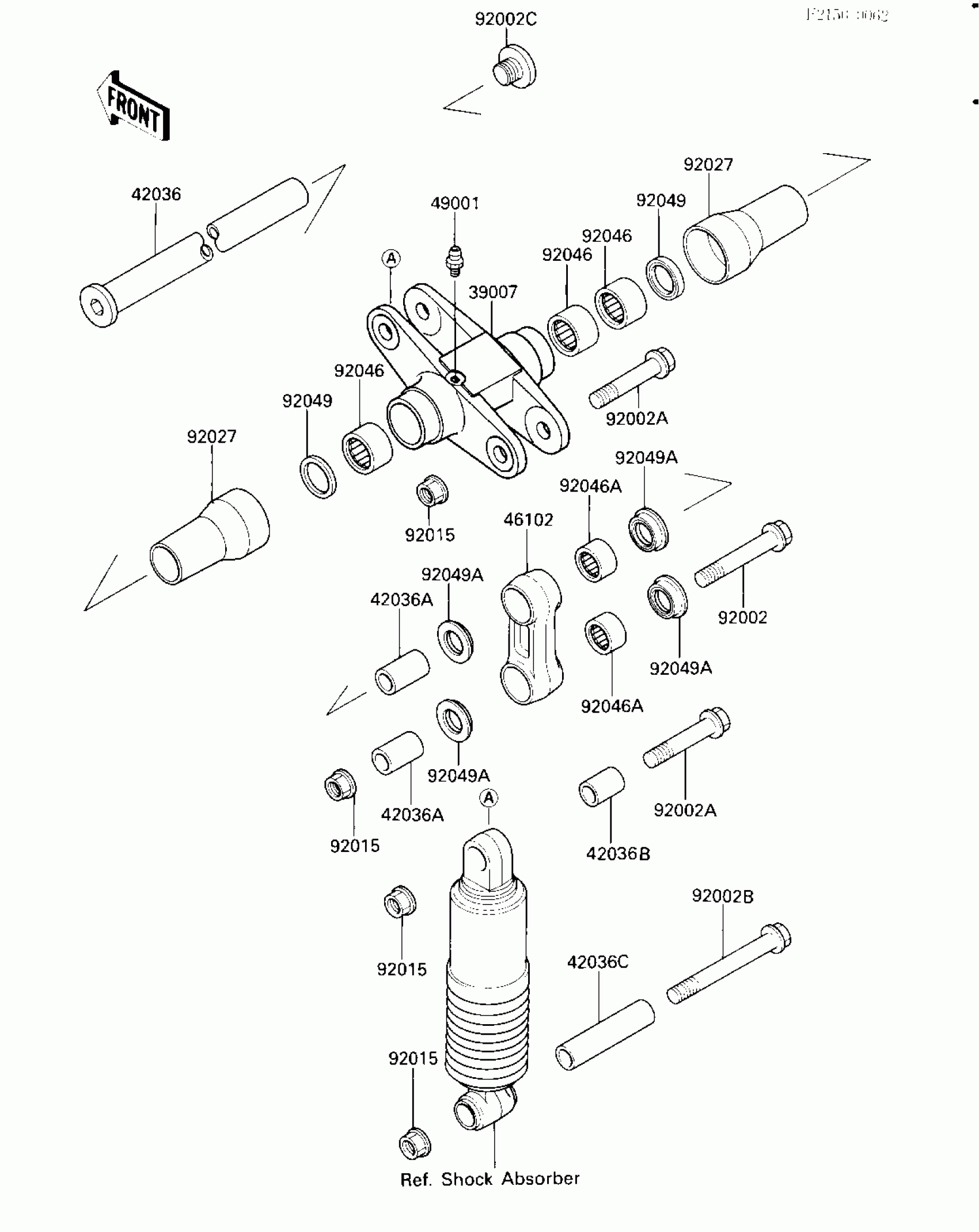

Find the part on the Rear Suspension diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1098

1
Out of stock

42036

SLEEVE,SUSPENSION ARM

42036-1151

1
Out of stock

42036A

SLEEVE,12X20X36

42036-1152

1
Out of stock

42036B

SLEEVE,12.1X18X30

42036-1156

1
Out of stock

42036C

SLEEVE,12.1X18X84

42036-1157

1
Out of stock

46102

ROD,UNI TRAK

46102-1142

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

92002

BOLT,12X85

92002-1255

1
Out of stock

92002A

BOLT,FLANGED,12X65

92002-1506

1
Out of stock

92002B

BOLT,FLANGED,12X120

92002-1594

1
Out of stock

92002C

BOLT,20MM

92002-1759

1
Out of stock

92015

NUT,12MM

92015-1426

1
Out of stock

92027

COLLAR,SUSPENSION ARM

92027-1882

1
Out of stock

92046

BEARING-NEEDLE,BHTM2530-1

92046-1035

1
Out of stock

92046A

BEARING-NEEDLE

92046-1143

1
Out of stock

92049

SEAL-OIL,MH25334

92049-1060

1
Out of stock

92049A

SEAL-OIL,ARM

92049-1109

1
Out of stock
