1987 Kawasaki Ninja® 1000R Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

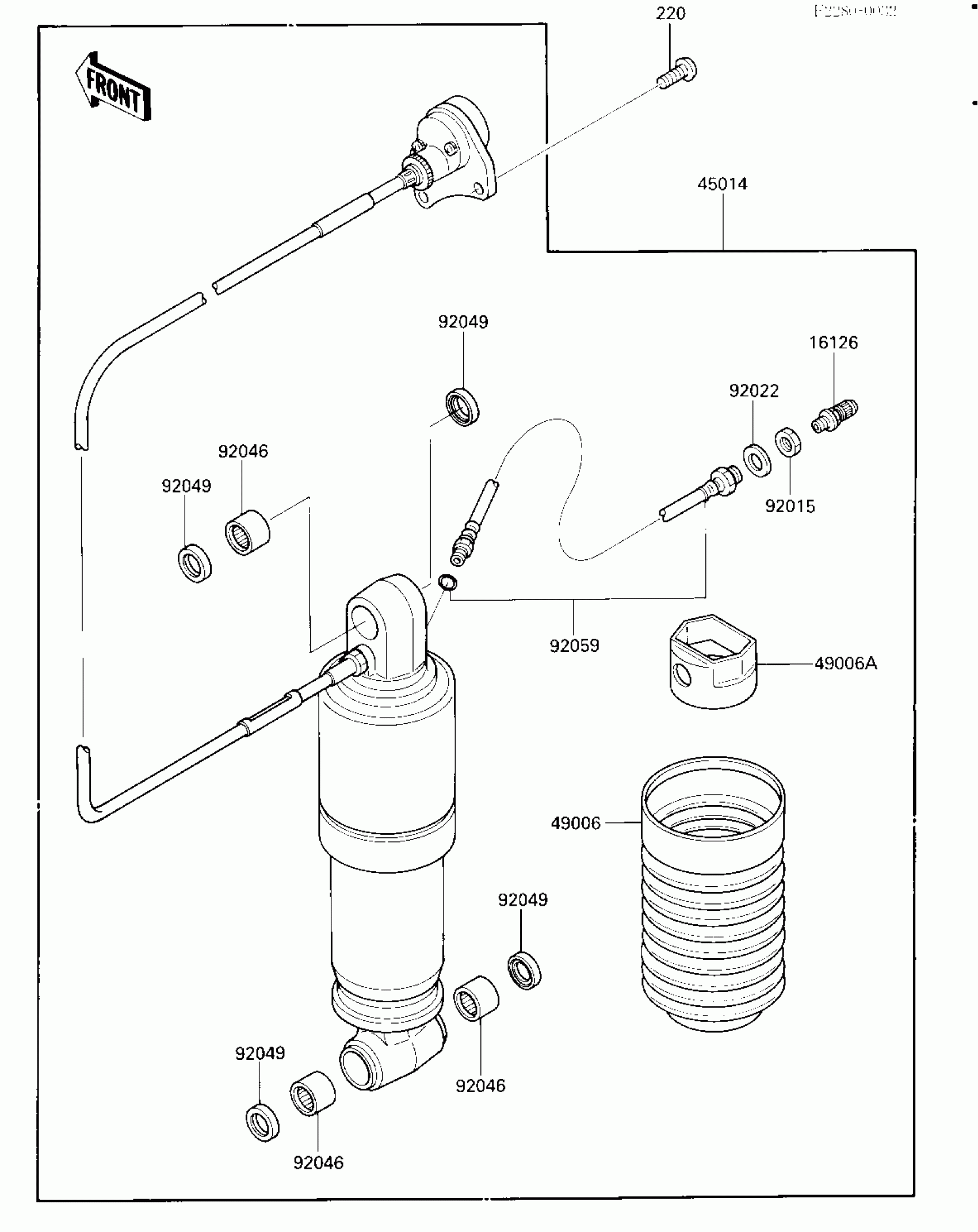

1987 Kawasaki Ninja® 1000R Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,AIR

16126-1143

1

$34.81

In stock

45014

SHOCKABSORBER

45014-1311

1

$1,496.49

In stock

49006

BOOT,RR SHOCKABSORBER

49006-1151

1
Out of stock

49006A

BOOT,SHOCKABSORBER

49006-1186

1

$9.68

In stock

92015

NUT,14MM

92015-1305

1
Out of stock

92022

WASHER

92022-1494

1

$4.25

In stock

92046

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92049

SEAL-OIL,MHA18244

92049-1225

1
Out of stock

92059

TUBE,SHOCKABSORBER

92059-1669

1

$92.14

In stock

220

SCREW-PAN-CROS

220B0512

1

$0.51

In stock
