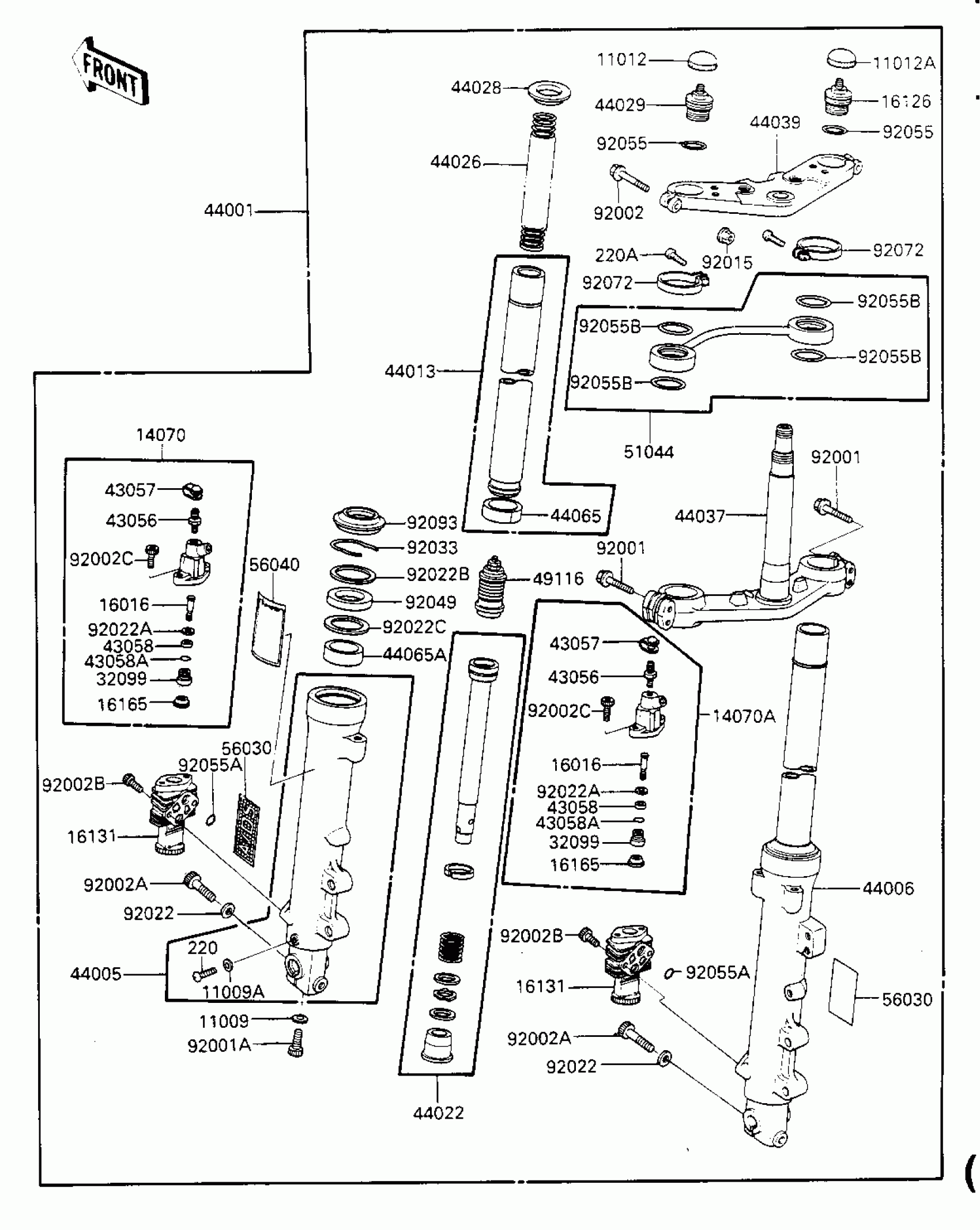

Kawasaki Ninja® 1000R FRONT FORK (-F/NO. GA000320)(-F/NO. GB50 Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

11009A

GASKET,FORK DRAIN PLUG

44045-002

$3.95

11012

CAP,FORK TOP

11012-1500

Unavailable

11012A

CAP,FORK TOP

11012-1501

Unavailable

14070

BODY-BREATHER,ANTI-DI

14070-1070

$282.32

14070A

BODY-BREATHER,ANTI-DI

14070-1060

$282.32

16016

PLUNGER,ANTI-DIVE

16016-1067

$41.73

16126

VALVE

16126-1150

Unavailable

16131

BODY-VALVE,FORK,ANTI-

16131-1061

$218.53

16165

SEPARATOR

16165-1051

Unavailable

32099

CASE

32099-1067

Unavailable

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43058

RING

43058-1052

Unavailable

43058A

RING

43058-1053

Unavailable

44001

FORK-FRONT

44001-1628

$2,255.16

44005

PIPE-LEFT FORK OUTER

44005-1228

$433.57

44006

PIPE-RIGHT FORK OUTER

44006-1228

$433.57

44013

PIPE-FORK INNER

44013-1239

$475.63

44022

CYLINDER-FORK

44022-1188

$138.47

44026

SPRING-FRONT FORK,K=0

44026-1317

$83.56

44028

GUIDE-FORK SPRING

44028-1004

$10.83

44029

SEAT-FORK SPRING

44029-1122

$59.26

44037

HOLDER-FORK UNDER

44037-1185

$611.62

44039

HOLDER-FORK UPPER

44039-1125

$280.80

44065

BUSHING-FRONT FORK,IN

44065-1076

$20.90

44065A

BUSHING-FRONT FORK

44065-1077

Unavailable

49116

VALVE-ASSY,FORK

49116-1062

$79.69

51044

TUBE-ASSY,AIR,FORK

51044-1073

$116.01

56030

LABEL,AVDS MARK

56030-1057

Unavailable

56040

LABEL-WARNING,AIR SUSPENSION

56040-1117

Unavailable

92001

BOLT,FLANGED,8X40

92001-1188

Unavailable

92001A

BOLT,FORK CYLINDER

92001-1309

$5.81

92002

BOLT,FLANGED,8X55

92002-1158

$7.03

92002A

BOLT,SOCKET,8X38

92002-1316

Unavailable

92002B

BOLT

92002-1564

Unavailable

92002C

BOLT

92002-1565

$9.19

92015

NUT,FLANGED,8MM

92015-1408

$4.07

92022

WASHER

92022-1598

$8.20

92022A

WASHER

92022-1636

Unavailable

92022B

WASHER,FORK OUTER PIP

92022-1774

$8.31

92022C

WASHER,FORK OUTER PIP

92022-1775

$8.31

92033

RING-SNAP

92033-1036

$4.88

92049

SEAL-OIL,FORK

92049-1251

$34.43

92055

RING-O,FORK TOP

92055-1052

Unavailable

92055A

RING-O,ANTI-DIVE UNIT

92055-1201

$2.22

92055B

"0" RING,REAR SHOCK

92055-1102

$4.53

92072

BAND

92072-1157

Unavailable

92093

SEAL,FORK

92093-1210

$35.62

220

SCREW-PAN-CROS,4X8

220E0408

Unavailable

220A

SCREW-PAN-CROS

220E0412

Unavailable
