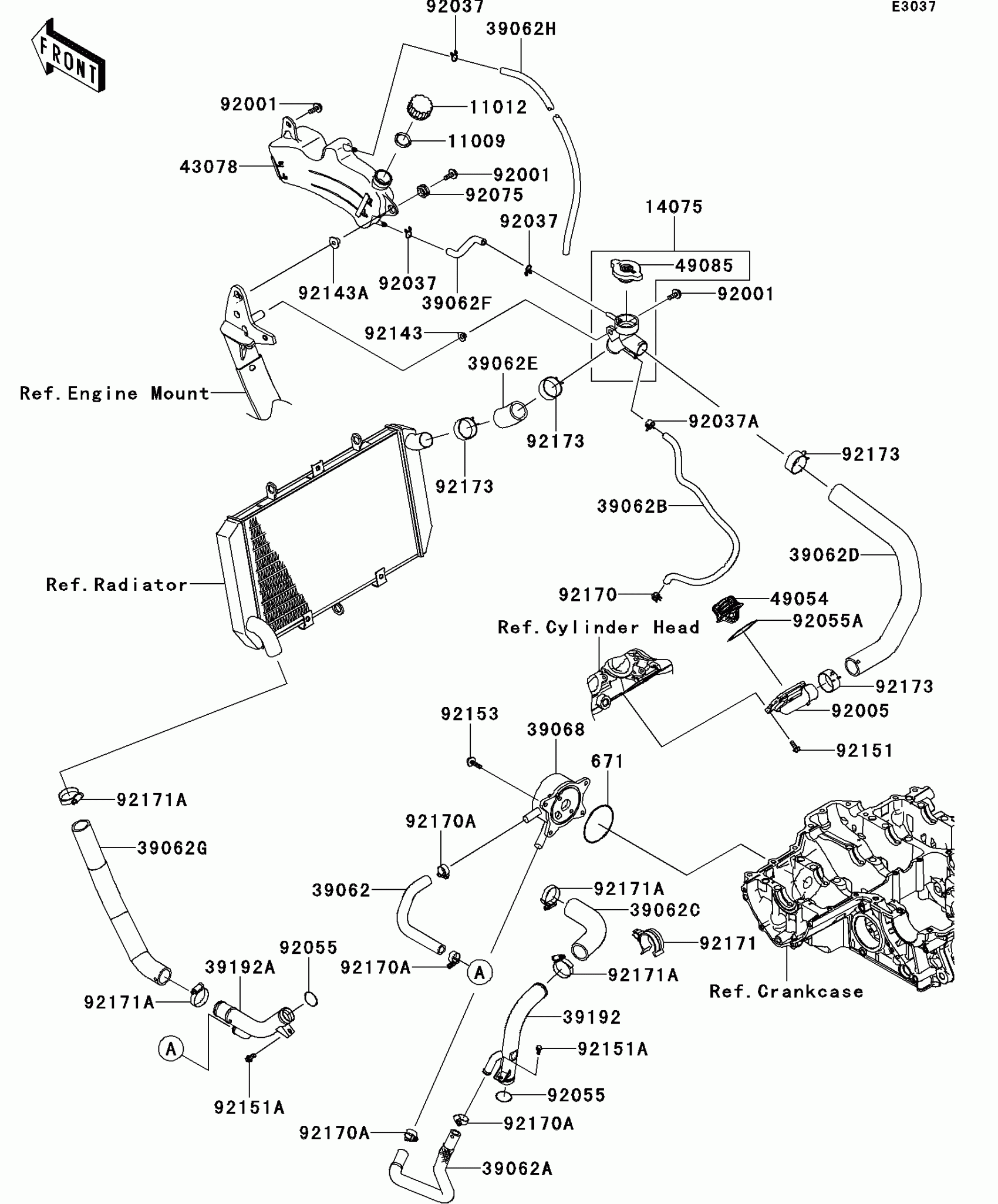

Find the part on the Water Pipe diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14075

CAP-ASSY

14075-0011

1
Out of stock

39062

1

$9.22

In stock

39062A

1

$35.46

In stock

39062B

1

$9.75

In stock

39062C

1

$15.76

In stock

39062D

1

$58.89

In stock

39062E

1

$7.41

In stock

39062F

HOSE-COOLING,RETURN

39062-0342

1

$9.75

In stock

39062G

1

$49.95

In stock

39062H

HOSE-COOLING,5.5X10.5X950

39062-1069

1
Out of stock

39068

COOLER-ASSY-OIL

39068-0010

1

$681.32

In stock

39192

PIPE-WATER

39192-0116

1

$44.78

In stock

39192A

PIPE-WATER

39192-0136

1

$46.06

In stock

43078

RESERVOIR

43078-0069

1

$42.27

In stock

49054

THERMOSTAT

49054-0004

1

$53.21

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

92001

BOLT,6X18

92001-1342

1
Out of stock

92005

FITTING,THERMO CAP

92005-0076

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,TUBE

92037-1505

1

$3.78

In stock

92055

RING-O,20.8X2.4

92055-0114

1

$3.11

In stock

92055A

1

$7.20

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92143A

COLLAR

92143-1962

1

$4.42

In stock

92151

BOLT,5X14

92151-1764

1

$2.00

In stock

92151A

BOLT,6X12

92151-1997

1

$1.36

In stock

92153

BOLT,6X22

92153-0725

1
Out of stock

92170

CLAMP

92170-1493

1

$3.97

In stock

92170A

CLAMP

92170-3729

1
Out of stock

92171

CLAMP

92171-0130

1

$5.63

In stock

92171A

CLAMP

92171-0179

1

$6.51

In stock

92173

CLAMP

92173-0072

1

$7.15

In stock

671

O RING,65MM

671B2565

1

$7.04

In stock
