2013 Kawasaki Ninja® 1000 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

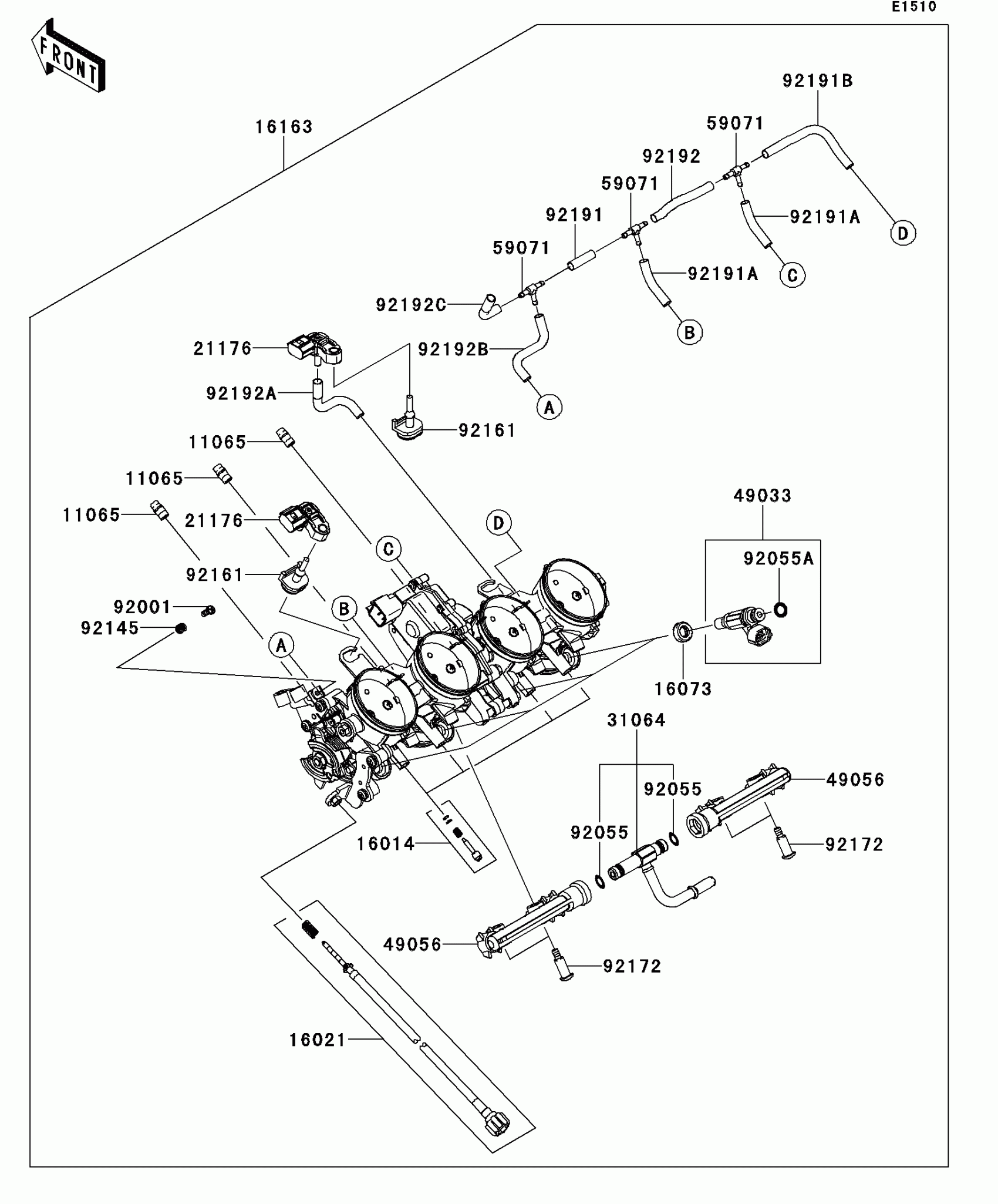

2013 Kawasaki Ninja® 1000 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0018

1

$4.84

In stock

16014

SCREW-PILOT AIR

16014-0002

1

$23.08

In stock

16021

SCREW-THROTTLE STOP

16021-0026

1

$65.38

In stock

16073

INSULATOR

16073-3707

1

$4.90

In stock

16163

THROTTLE-ASSY,TTK38

16163-0159

1

$1,946.01

In stock

21176

SENSOR,PRESSURE

21176-0111

1

$226.99

In stock

31064

PIPE-COMP,FUEL

31064-0199

1

$87.59

In stock

49033

NOZZLE-INJECTION

49033-0012

1

$135.42

In stock

49056

PIPE-INJECTION

49056-0014

1

$105.63

In stock

59071

JOINT,3WAY,T

59071-3752

1

$8.09

In stock

92001

1

$15.88

In stock

92055

RING-O

92055-0064

1
Out of stock

92055A

1

$1.64

In stock

92145

SPRING

92145-0294

1

$16.66

In stock

92161

DAMPER

92161-0673

1

$4.85

In stock

92172

1

$2.29

In stock

92191

TUBE,3X7X25

92191-0020

1

$1.98

In stock

92191A

TUBE,3X7X40

92191-0022

1

$2.61

In stock

92191B

TUBE,3X7X100

92191-0023

1

$3.71

In stock

92192

TUBE,3X7X72

92192-0739

1
Out of stock

92192A

TUBE,THROBO RH-SENSOR

92192-0840

1
Out of stock

92192B

TUBE,THROBO LH-JOINT

92192-0841

1
Out of stock

92192C

TUBE,SENSOR-JOINT

92192-0842

1
Out of stock
