2013 Kawasaki Ninja® 1000 Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

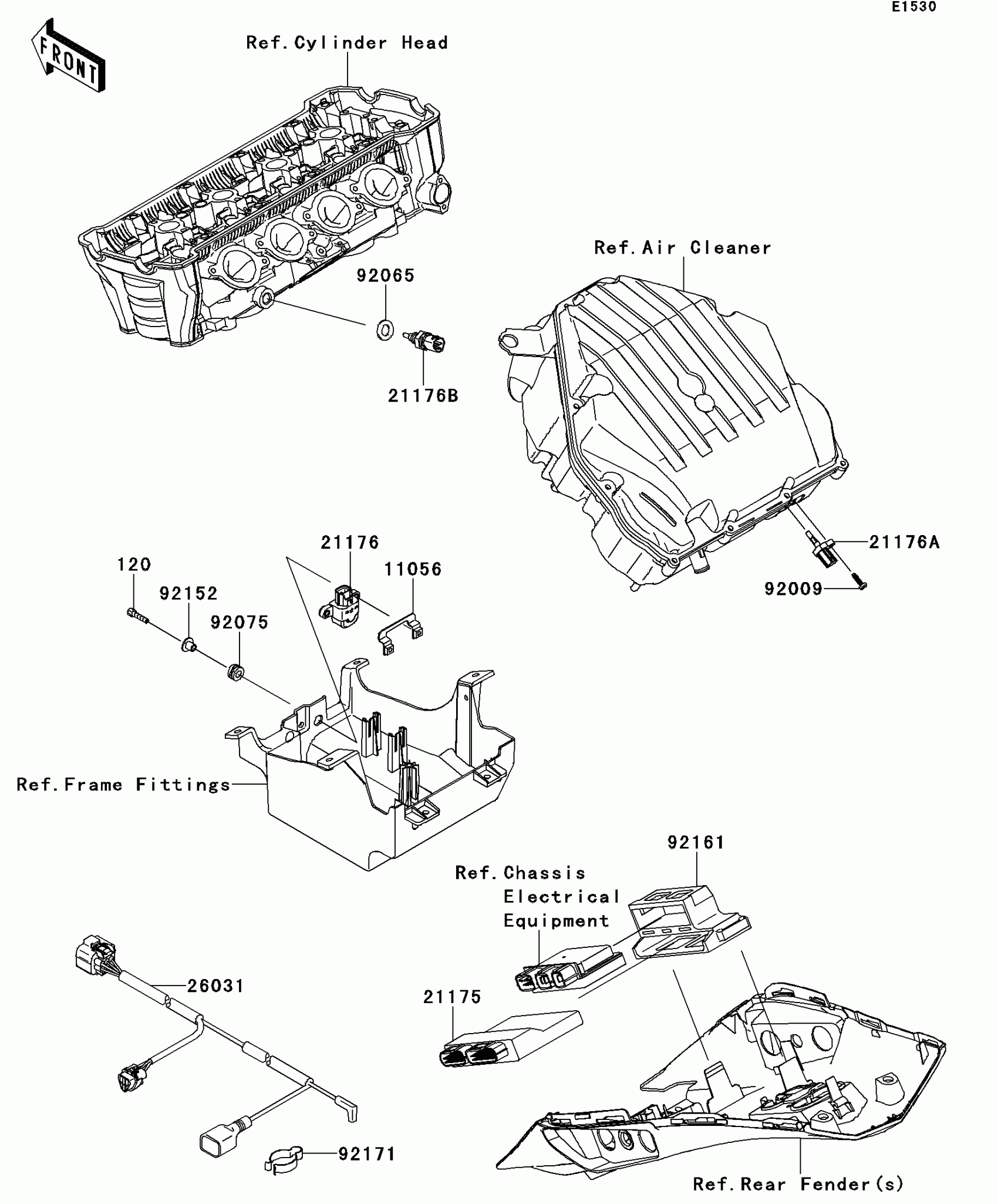

2013 Kawasaki Ninja® 1000 Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0124

1

$7.15

In stock

21175

1

$1,248.11

In stock

21176

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

21176A

1

$24.07

In stock

21176B

SENSOR,WATER TEMP

21176-1120

1

$64.35

In stock

26031

HARNESS

26031-0821

1

$74.56

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92075

DAMPER

92075-1912

1

$5.07

In stock

92152

COLLAR

92152-0134

1

$7.54

In stock

92161

DAMPER

92161-0356

1

$23.93

In stock

92171

CLAMP,CABLE

92171-1283

1

$10.51

In stock

120

BOLT-SOCKET,5X25

120CA0525

1

$3.86

In stock
