Fuel Tank

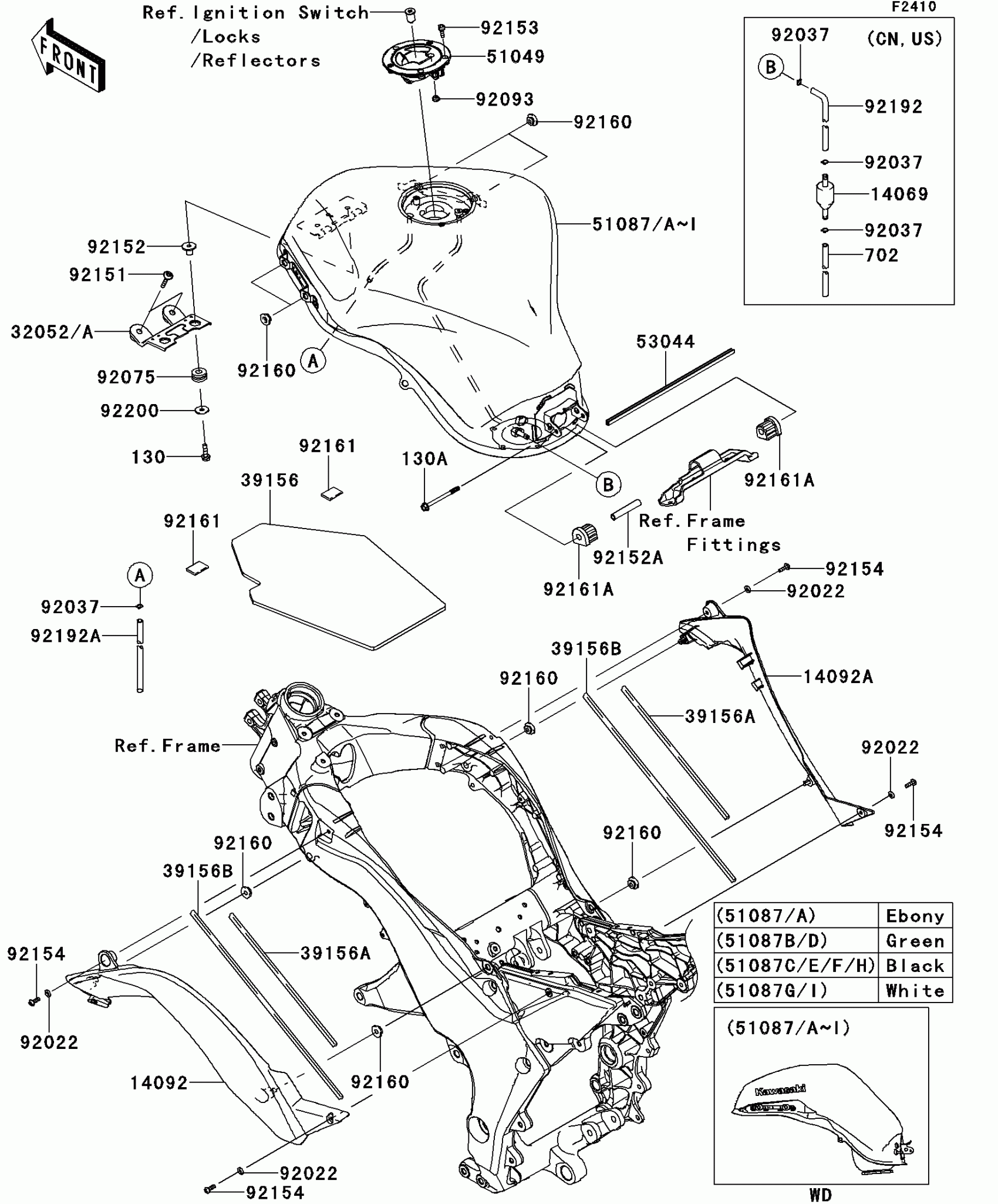

2013 Kawasaki Ninja® 1000 Fuel Tank Diagram
Find the part on the Fuel Tank diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
51087F
TANK-COMP-FUEL,M.S.BLACK
51087-5430-660
1
Out of stock
51087G
TANK-COMP-FUEL,P.S.WHITE
51087-5431-25Y
1
Out of stock
92192
TUBE,BREATHER
92192-0798
1
Out of stock
92192A
TUBE,6X9X926(30)
92192-1024
1
Out of stock
92200
WASHER,6.5X22X1.6
92200-1087
1
Out of stock
