2013 Kawasaki Ninja® 1000 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

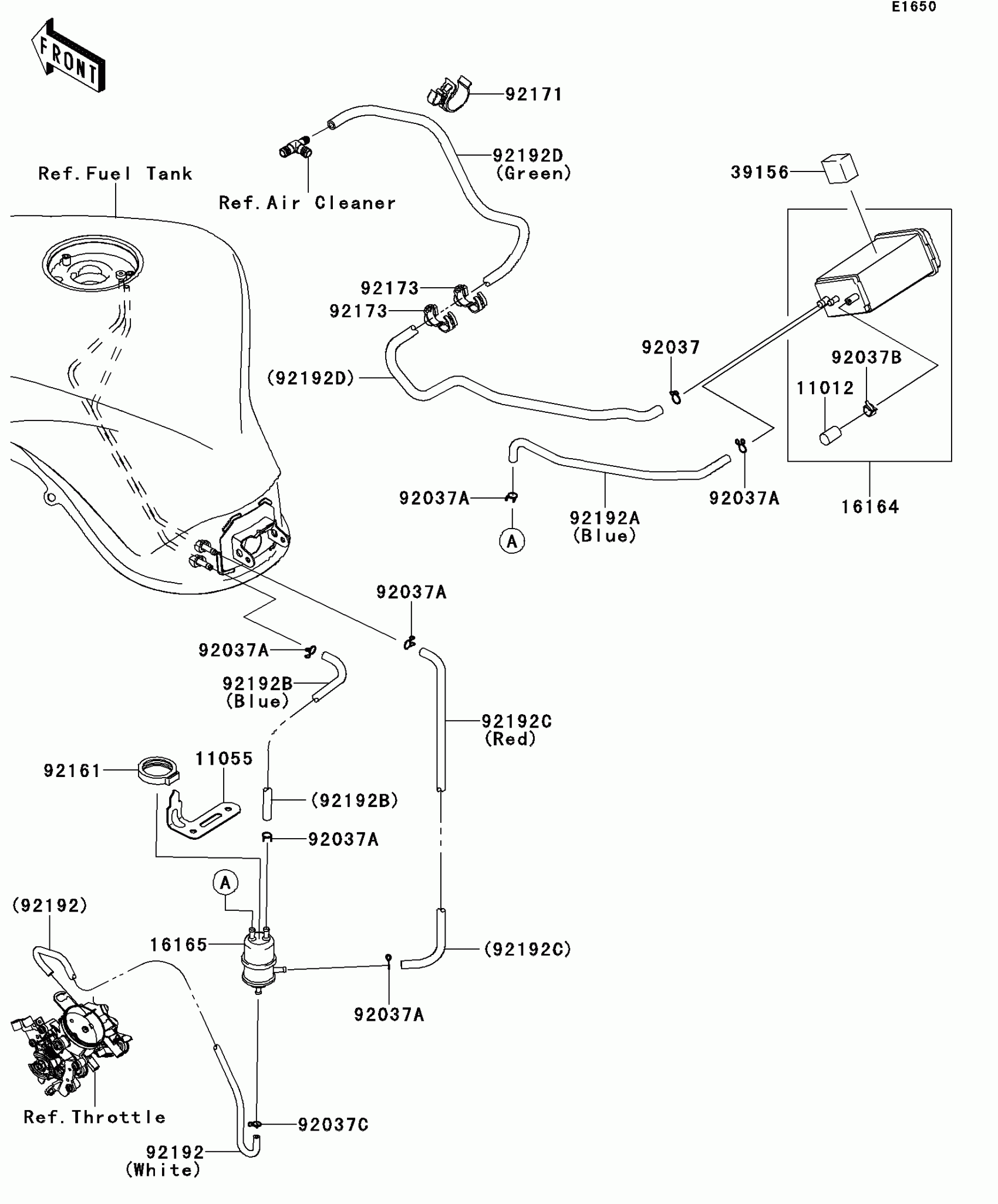

2013 Kawasaki Ninja® 1000 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1
Out of stock

11055

BRACKET

11055-1793

1
Out of stock

16164

CANISTER

16164-1054

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

39156

PAD

39156-0714

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,CANISTER

92037-1512

1
Out of stock

92037C

CLAMP

92037-1712

1
Out of stock

92161

DAMPER

92161-0239

1
Out of stock

92171

CLAMP

92171-1276

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92192

TUBE,THROTTLE-SEPARATOR,WHITE

92192-0175

1
Out of stock

92192A

TUBE,CANISTER-SEPARATOR,BLUE

92192-0847

1
Out of stock

92192B

TUBE,TANK-SEPARATOR,BLUE

92192-0848

1
Out of stock

92192C

TUBE,TANK-SEPARATOR,RED

92192-0849

1
Out of stock

92192D

TUBE,CANISTER-A/C,GREEN

92192-0850

1
Out of stock
