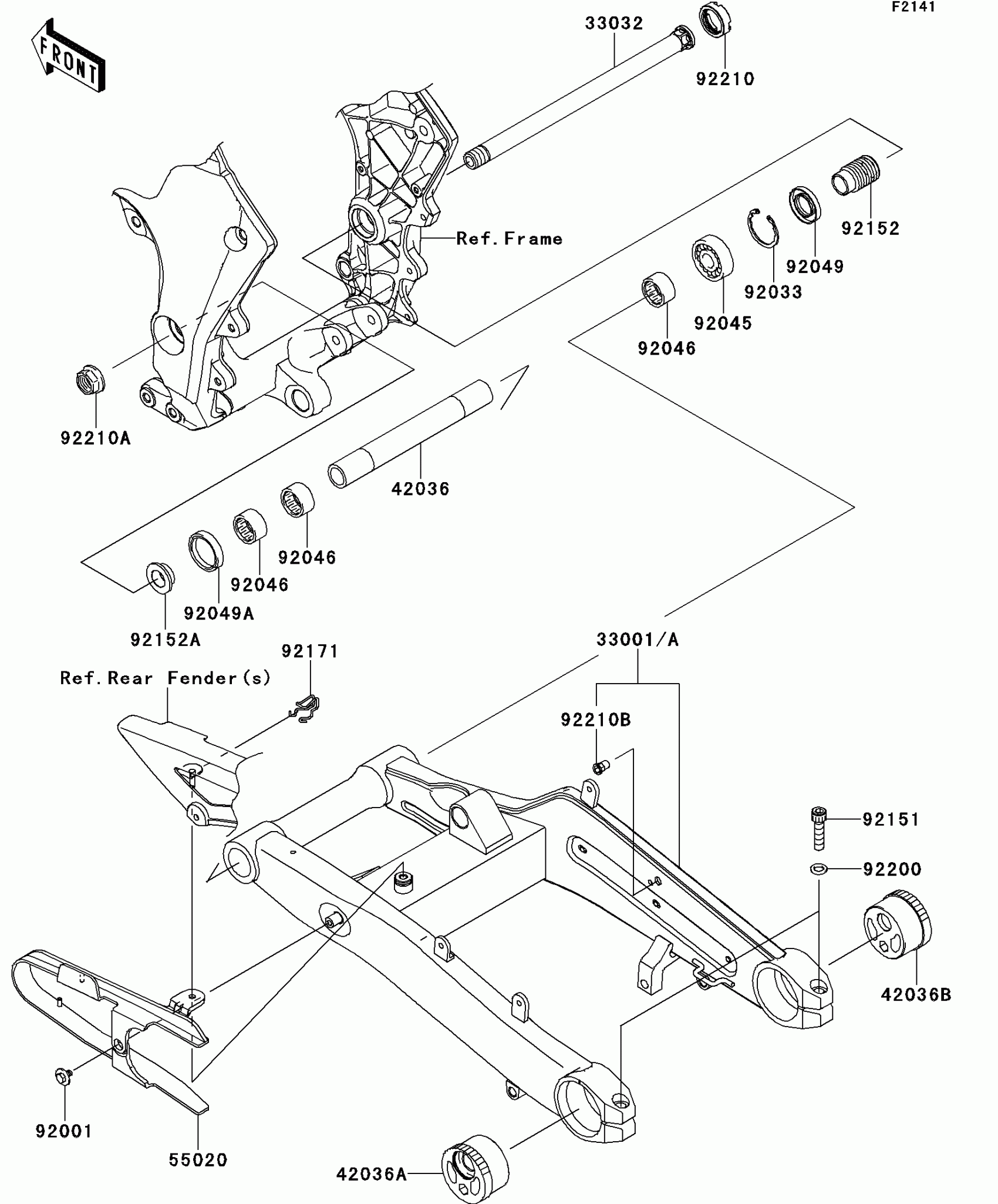

Find the part on the Swingarm diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING,F.S.BLACK

33001-0554-18R

1

$1,070.35

In stock

33001A

ARM-COMP-SWING,F.M.GRAY

33001-0554-26M

1

$1,070.35

In stock

33032

SHAFT-SWING ARM

33032-0013

1
Out of stock

42036

SLEEVE,20.1X28X226

42036-0069

1

$73.05

In stock

42036A

1

$106.91

In stock

42036B

1

$106.91

In stock

55020

GUARD,CHAIN

55020-0549

1
Out of stock

92001

BOLT,6X12

92001-1771

1

$3.53

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$11.39

In stock

92046

1

$19.97

In stock

92049

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

1
Out of stock

92151

BOLT,SOCKET,10X40

92151-1899

1

$4.42

In stock

92152

1

$37.85

In stock

92152A

1

$7.13

In stock

92171

CLAMP

92171-0907

1

$9.93

In stock

92200

WASHER,10.5X18X2.0

92200-0531

1
Out of stock

92210

NUT,30MM

92210-0134

1
Out of stock

92210A

NUT,FLANGED,20MM

92210-0320

1
Out of stock

92210B

NUT,POP,6MM,L=15

92210-1397

1
Out of stock
