2013 Kawasaki Ninja® 1000 Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

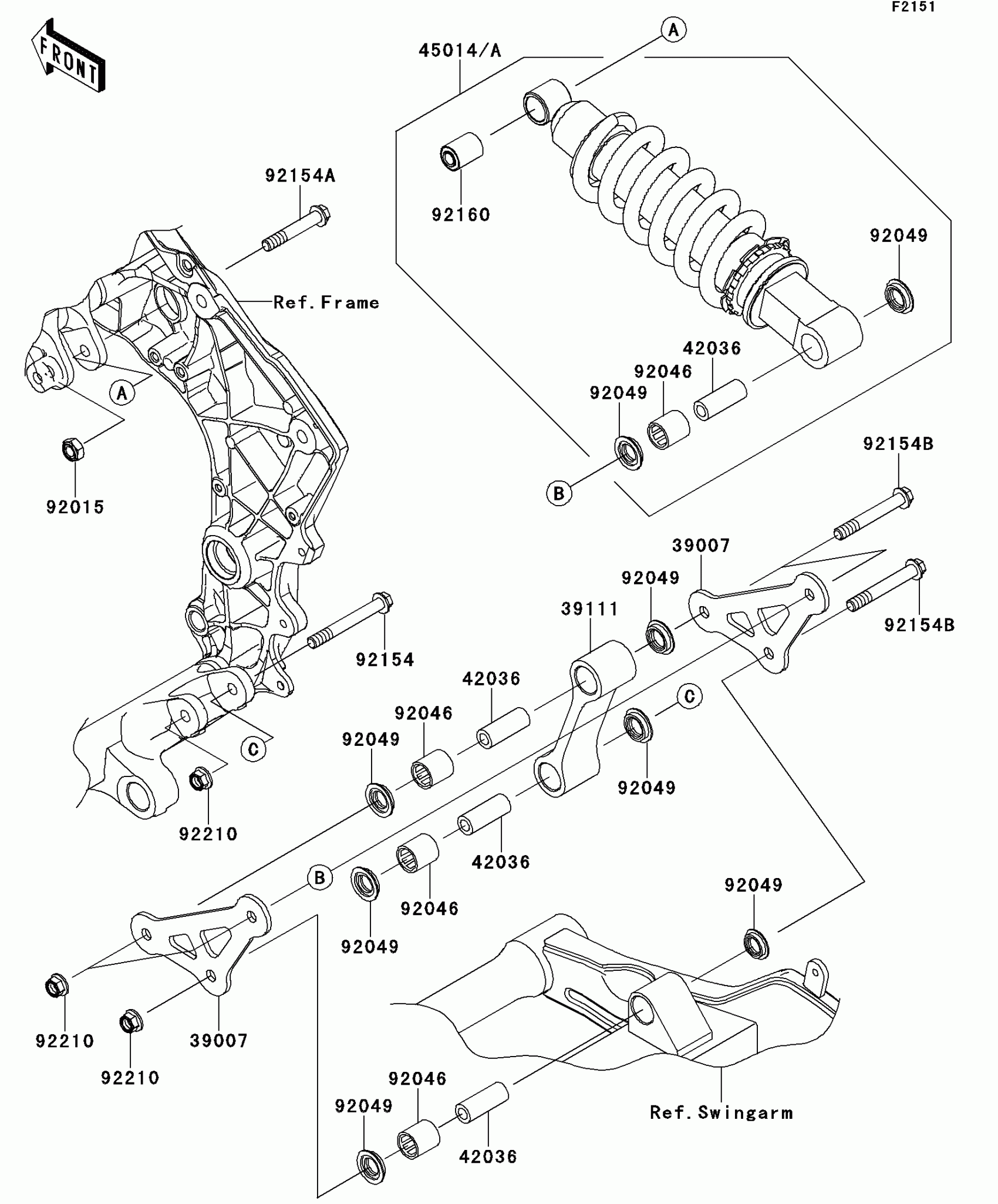

2013 Kawasaki Ninja® 1000 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK,P.SILVER

39007-0156-458

1
Out of stock

39111

ROD-TIE,SUSPENSION,F.S.BLACK

39111-0069-18R

1
Out of stock

42036

SLEEVE,10.1X17X44.5

42036-1342

1
Out of stock

45014

SHOCKABSORBER,SPG RED+BODY BLK

45014-0312-23G

1
Out of stock

45014A

SHOCKABSORBER,SPG SIL+BODY BLK

45014-0312-23I

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92154

BOLT,FLANGED,10X77

92154-0262

1
Out of stock

92154A

BOLT,FLANGED,10X60

92154-0263

1
Out of stock

92154B

BOLT,FLANGED,10X67

92154-0264

1
Out of stock

92160

DAMPER,SHOCKABSORBER

92160-1496

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
