2013 Kawasaki Ninja® 1000 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

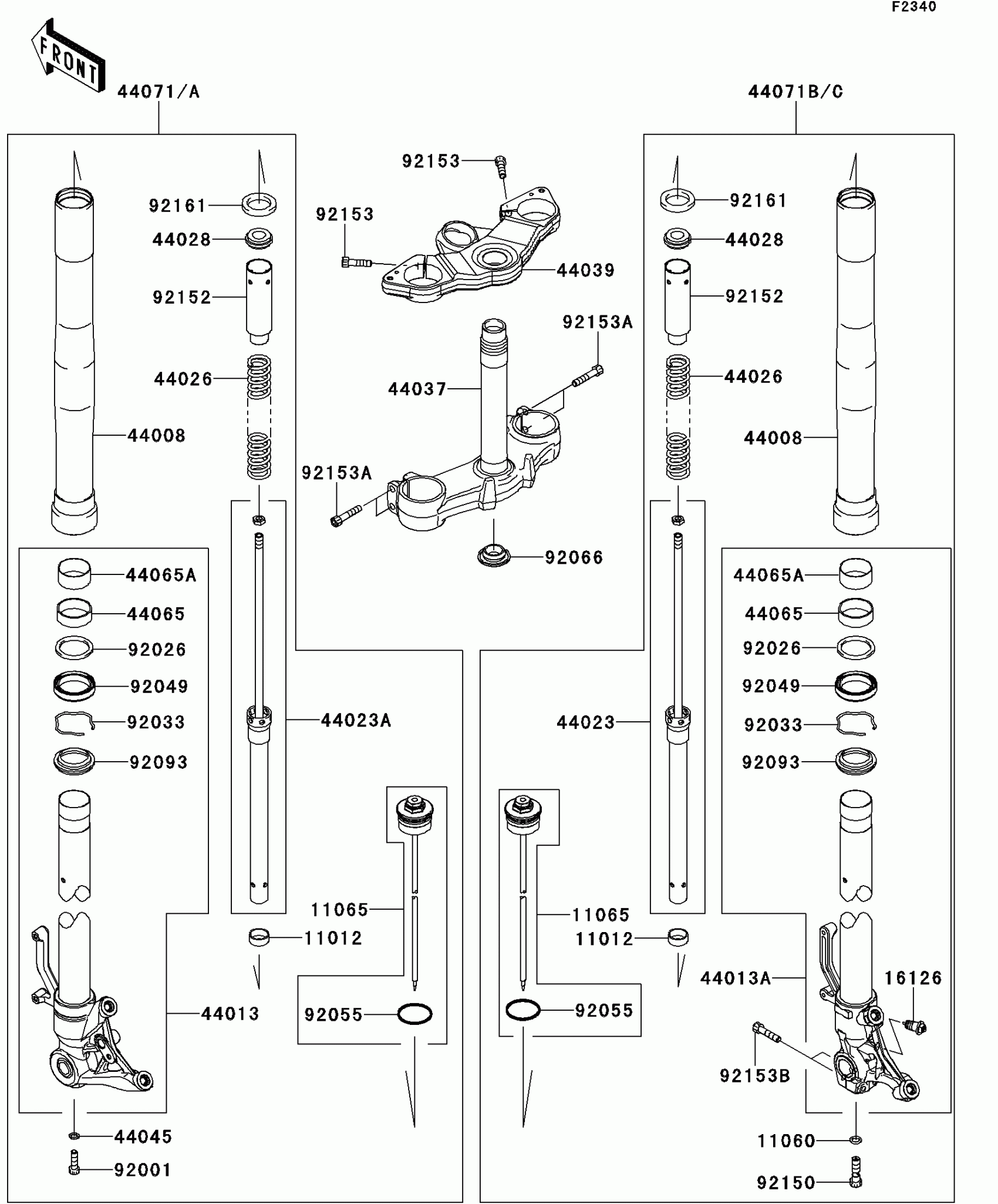

2013 Kawasaki Ninja® 1000 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1761

1

$35.56

In stock

11060

1

$3.25

In stock

11065

CAP,FORK BOLT COMP,GRAY

11065-0372-11G

1

$114.52

In stock

16126

VALVE,FORK

16126-0031

1

$182.76

In stock

44008

PIPE-FORK OUTER,GRAY

44008-0053-11G

1

$481.45

In stock

44013

PIPE-FORK INNER,LH

44013-0160

1

$508.00

In stock

44013A

PIPE-FORK INNER,RH

44013-0161

1

$508.00

In stock

44023

1

$476.16

In stock

44023A

1

$476.16

In stock

44026

SPRING-FRONT FORK

44026-0153

1

$93.11

In stock

44028

GUIDE-FORK SPRING

44028-1083

1

$9.07

In stock

44037

1

$611.05

In stock

44039

HOLDER-FORK UPPER

44039-0105

1

$327.91

In stock

44045

1

$4.88

In stock

44065

1

$19.06

In stock

44065A

BUSHING-FRONT FORK

44065-0036

1

$19.31

In stock

44071A

DAMPER-ASSY,LH,GRAY

44071-0710-39F

1

$1,045.49

In stock

44071C

DAMPER-ASSY,RH,GRAY

44071-0711-39F

1

$1,045.49

In stock

92001

BOLT,FORK CYLINDER

92001-1464

1

$4.93

In stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92049

SEAL-OIL

92049-0125

1
Out of stock

92055

RING-O

92055-0131

1

$4.95

In stock

92066

PLUG

92066-0032

1

$11.19

In stock

92093

SEAL,DUST

92093-0035

1

$23.33

In stock

92150

BOLT,FORK CYLINDER

92150-1514

1

$5.81

In stock

92152

COLLAR

92152-0263

1

$14.39

In stock

92153

BOLT,SOCKET,8X30

92153-0500

1
Out of stock

92153A

BOLT

92153-0533

1
Out of stock

92153B

BOLT,SOCKET

92153-0537

1
Out of stock

92161

DAMPER

92161-0418

1

$6.11

In stock
