2013 Kawasaki Ninja® 1000 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

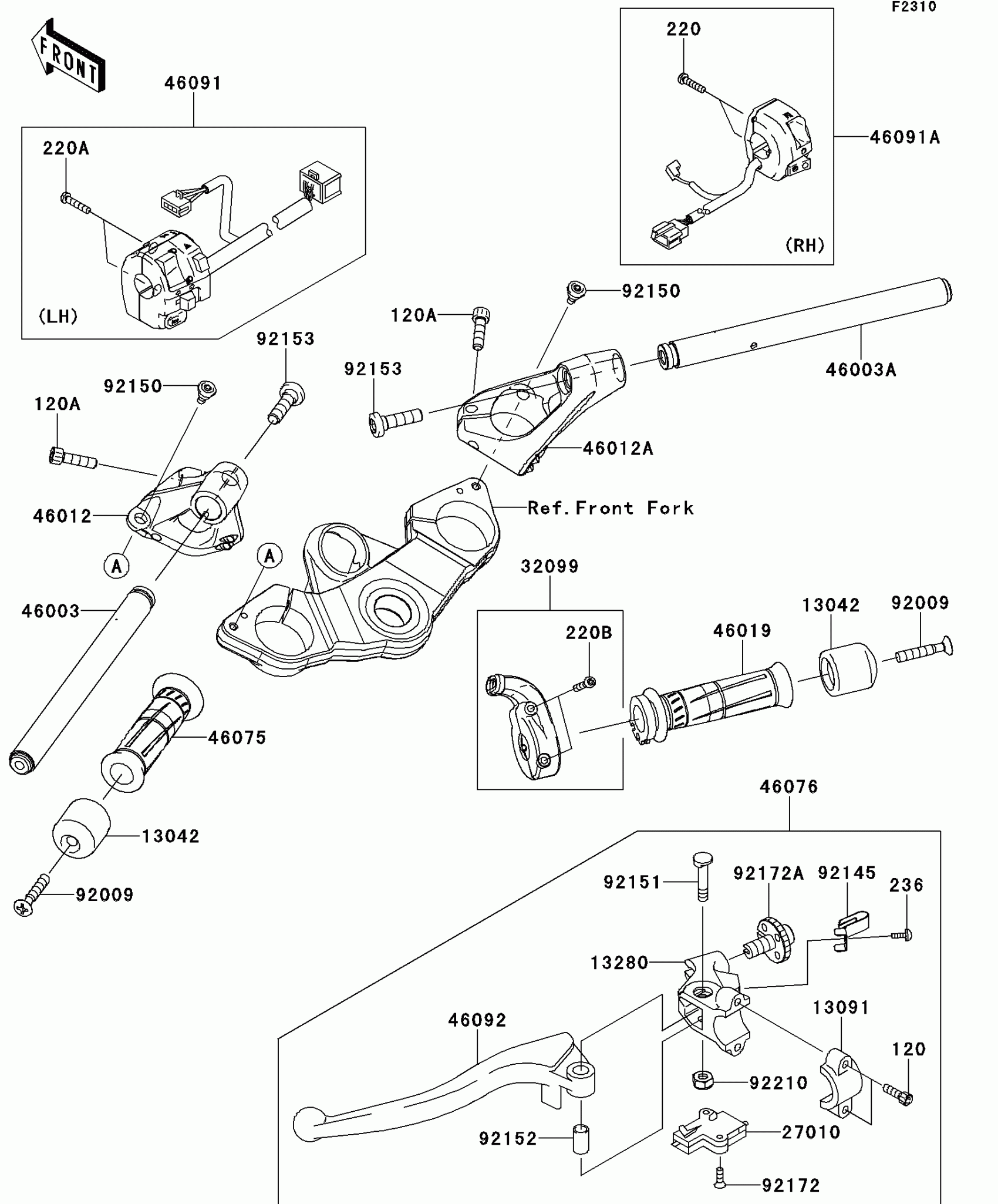

2013 Kawasaki Ninja® 1000 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT

13042-0710

1

$29.44

In stock

13091

HOLDER,CLUTCH LEVER

13091-1624

1

$36.55

In stock

13280

HOLDER,CLUTCH LEVER

13280-1160

1

$48.11

In stock

27010

SWITCH,CLUTCH

27010-0717

1
Out of stock

32099

CASE,THROTTLE

32099-0049

1

$26.18

In stock

46003

HANDLE,LH

46003-0566

1

$75.77

In stock

46003A

HANDLE,RH

46003-0567

1

$75.77

In stock

46012

1

$124.04

In stock

46012A

1

$124.04

In stock

46019

GRIP-ASSY,THROTTLE

46019-0020

1

$38.86

In stock

46075

GRIP,LH

46075-0068

1

$14.87

In stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0078

1
Out of stock

46091

1

$163.27

In stock

46091A

1

$143.44

In stock

46092

LEVER-GRIP,CLUTCH

46092-0006

1

$14.69

In stock

92009

SCREW,8X45

92009-1257

1
Out of stock

92145

SPRING

92145-1286

1

$5.19

In stock

92150

BOLT,6MM

92150-1090

1

$5.93

In stock

92151

BOLT

92151-1523

1

$5.93

In stock

92152

COLLAR

92152-0103

1

$14.94

In stock

92153

BOLT,SOCKET,10X37

92153-1440

1
Out of stock

92172

SCREW,3X16

92172-0183

1

$1.81

In stock

92172A

SCREW,ADJUST NUT

92172-1060

1

$39.89

In stock

92210

NUT,LOCK,6MM

92210-0006

1
Out of stock

120

BOLT-SOCKET,6X20

120CA0620

1

$1.49

In stock

120A

BOLT-SOCKET,8X30

120CA0830

1

$2.29

In stock

220

1

$1.03

In stock

220A

1

$2.92

In stock

220B

1

$1.73

In stock

236

1

$1.34

In stock
