2013 Kawasaki Ninja® 1000 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

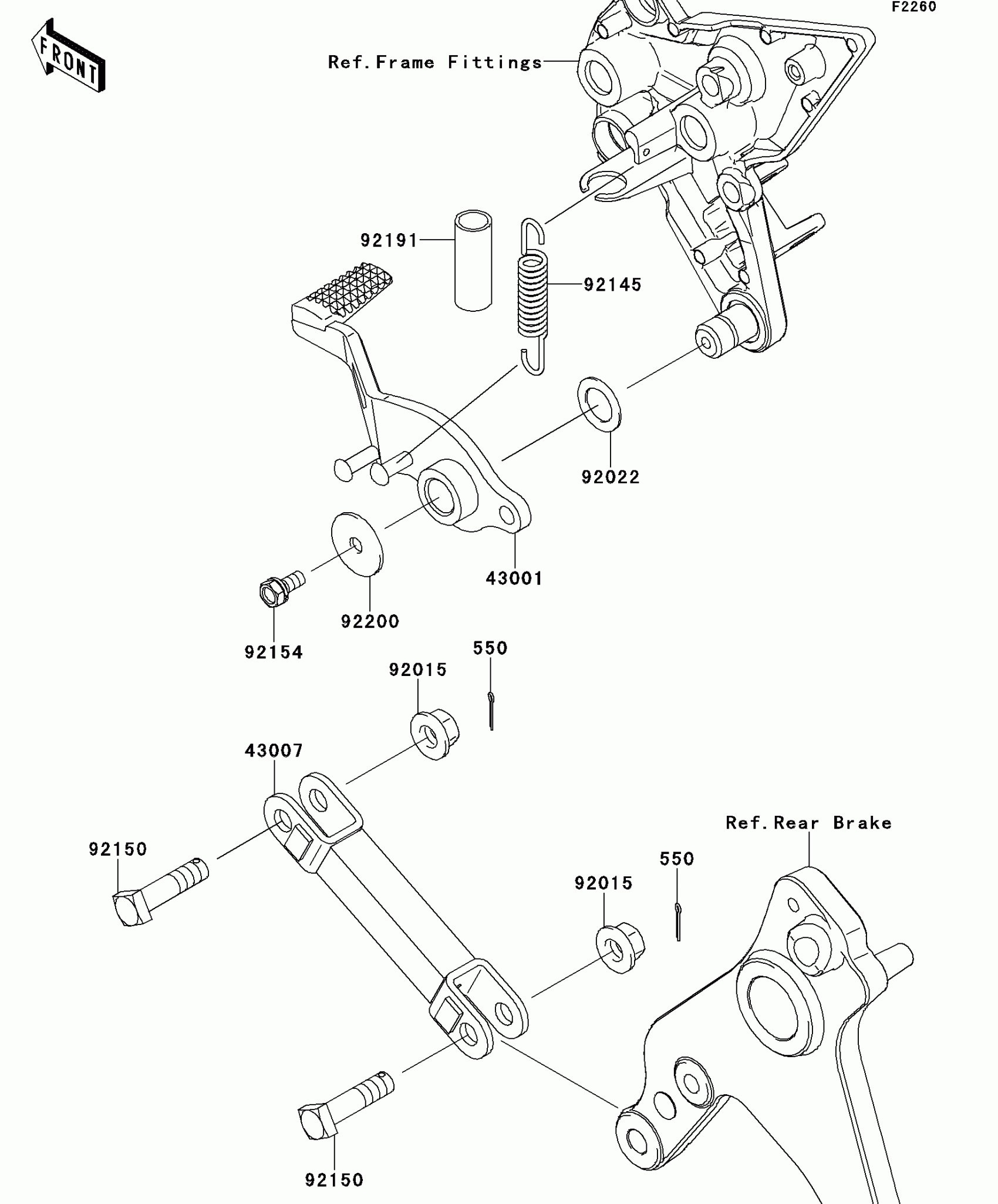

2013 Kawasaki Ninja® 1000 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE

43001-0121

1
Out of stock

43007

ROD-TORQUE,F.S.BLACK

43007-0016-18R

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92022

WASHER,15.3X24X1

92022-326

1
Out of stock

92145

SPRING,BRAKE LEVER

92145-0764

1
Out of stock

92150

BOLT,10X39.5

92150-1598

1
Out of stock

92154

BOLT,UPSET-WS,6X14

92154-0293

1
Out of stock

92191

TUBE,12X15X40

92191-1739

1
Out of stock

92200

WASHER,7X28X1.6

92200-0279

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
