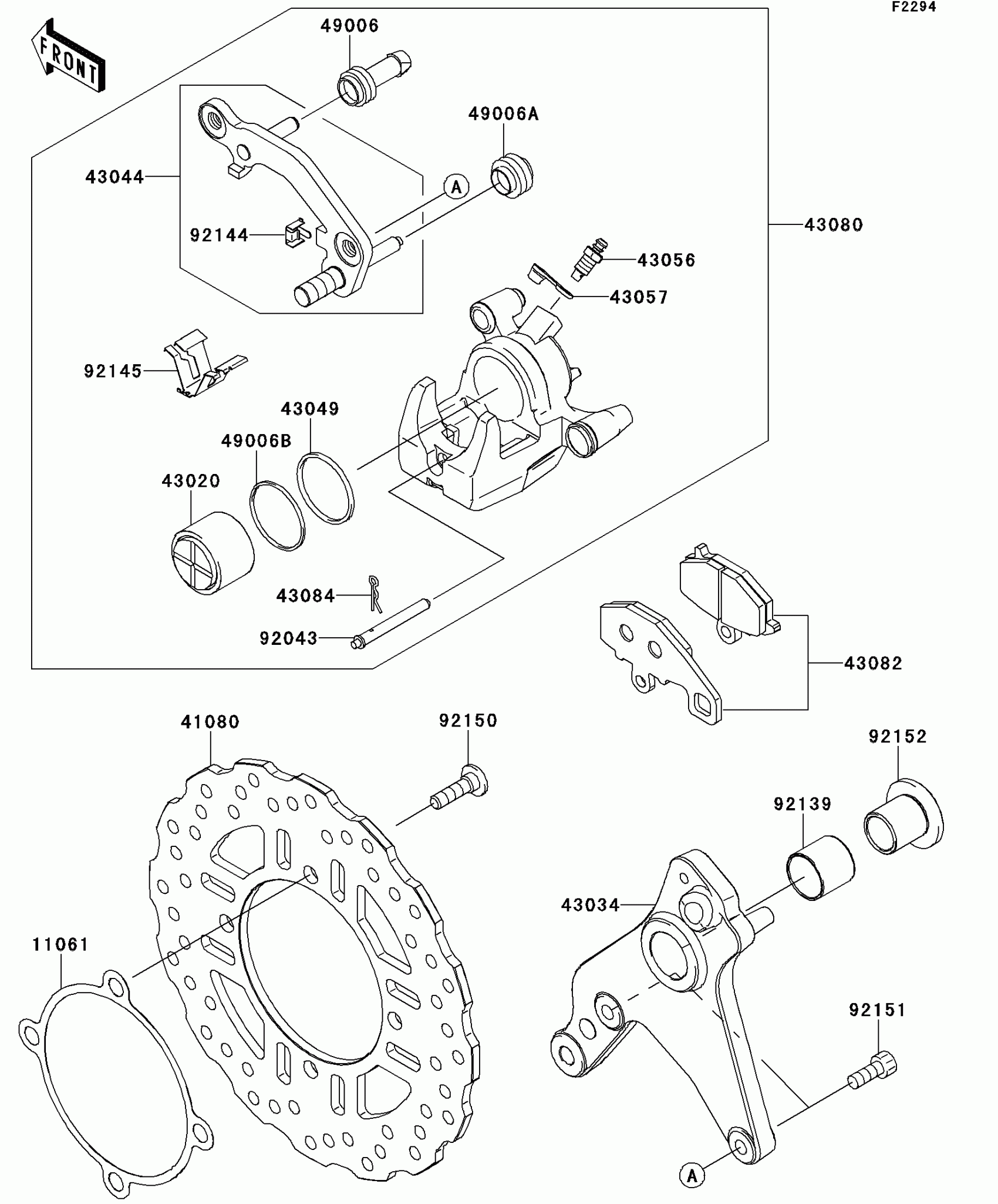

Kawasaki NINJA® 1000 Rear Brake Diagram

#

Description
Price

11061

GASKET,DISC PLATE

11061-0204

$20.46

41080

DISC,RR

41080-0089

$341.15

43020

PISTON-COMP-BRAKE

43020-1119

$66.46

43034

HOLDER-BRAKE,RR

43034-0055

$123.19

43044

HOLDER-COMP-CALIPER,RR

43044-0033

$112.70

43049

PACKING,PISTON SEAL

43049-1097

$8.41

43056

BREATHER-BRAKE

43056-0007

$22.39

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0103-DJ

$393.36

43082

PAD-ASSY-BRAKE

43082-0119

$76.53

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

49006B

BOOT,PISTON SEAL

49006-1212

$18.77

92043

PIN,PAD

92043-1489

$4.93

92139

BUSHING,25X28X25

92139-0278

$4.63

92144

SPRING,STOPPER

92144-1831

$4.14

92145

SPRING

92145-0760

$7.24

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92151

BOLT,SOCKET,8X20

92151-1289

$1.62

92152

COLLAR,20X25X30

92152-0807

$30.83
