Description

Price

11055

BRACKET

11055-1785

$7.92

13159

CONNECTOR

13159-0008

$10.59

43010

ROD-ASSY-BRAKE

43010-1062

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-0137

$438.17

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0549

$34.26

43095A

HOSE-BRAKE,RR

43095-0624

$68.34

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN,8X17

92043-0104

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92153

BOLT,SOCKET,8X30

92153-0393

$2.84

92153A

BOLT,OIL,L=23

92153-0627

$4.15

92153B

BOLT,OIL,L=37

92153-0628

$9.00

92154

BOLT,FLANGED,6X16

92154-0385

$3.59

92170

CLAMP,HOSE

92170-1091

$3.81

92173

CLAMP,CLIP

92173-0127

$14.78

92173A

CLAMP

92173-0221

$7.22

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.04

550

PIN-COTTER,2.0X15

550AA2015

$0.90

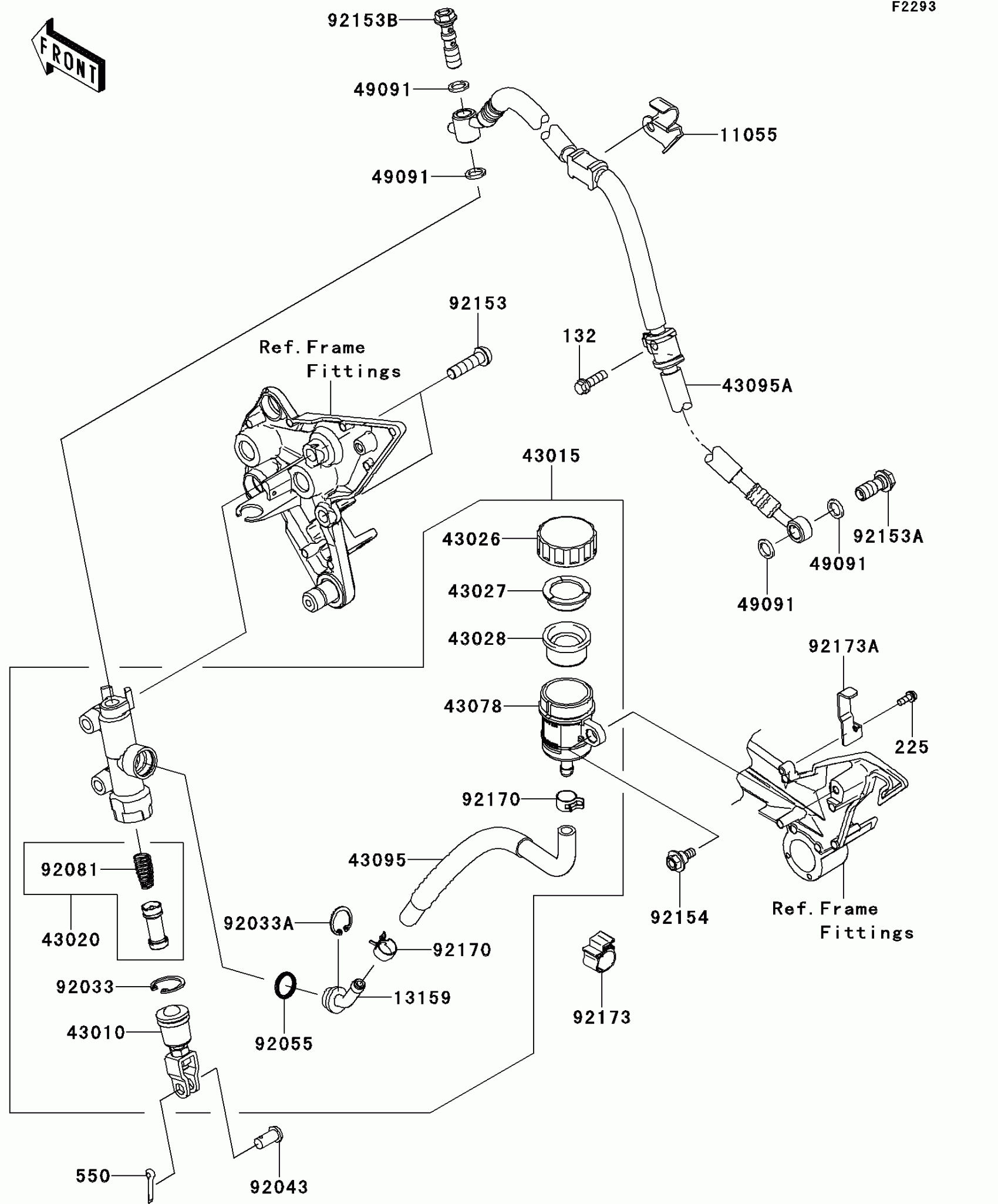

Kawasaki NINJA® 1000 Rear Master Cylinder Diagram
