2013 Kawasaki Ninja® 1000 ABS Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2013 Kawasaki Ninja® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

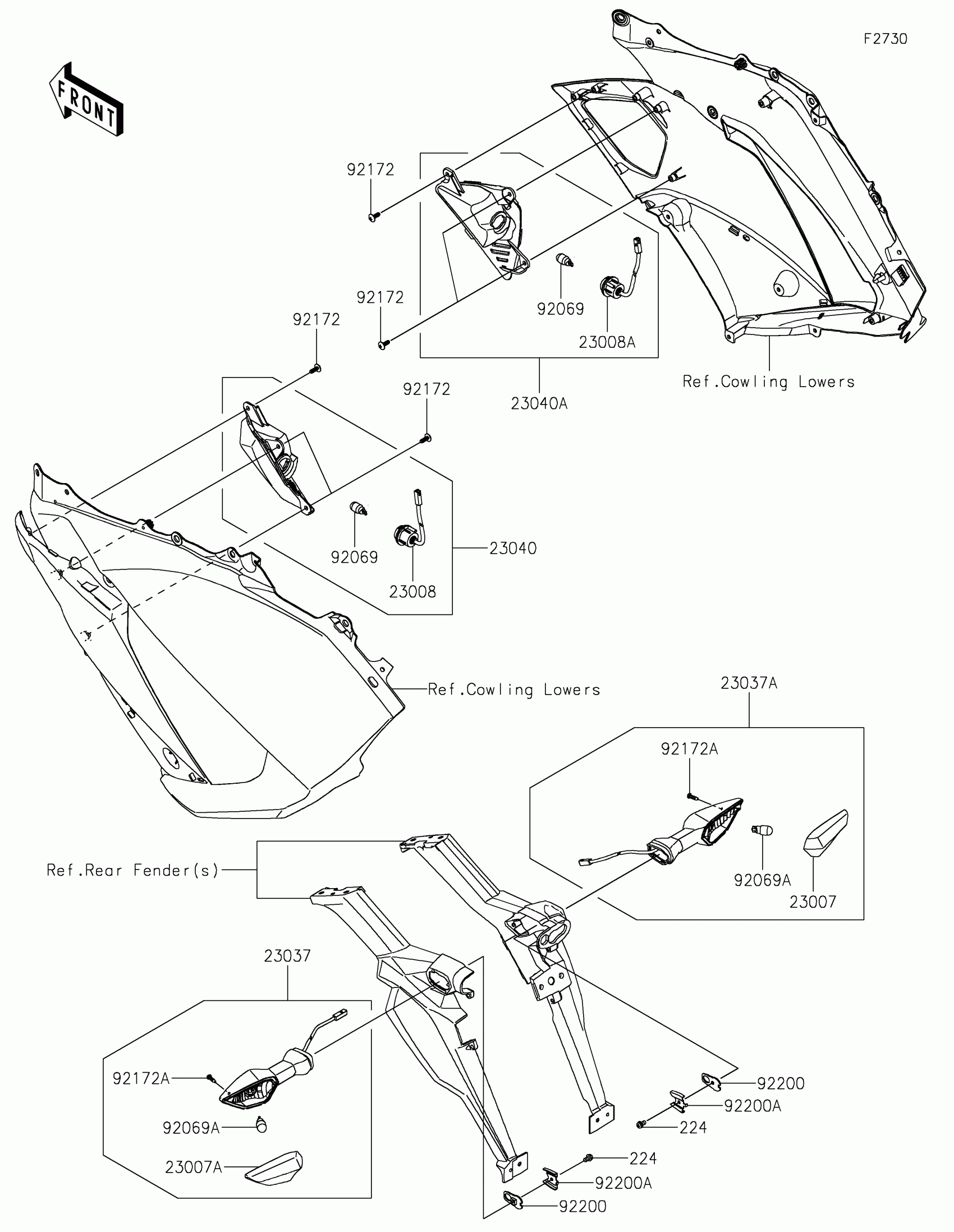

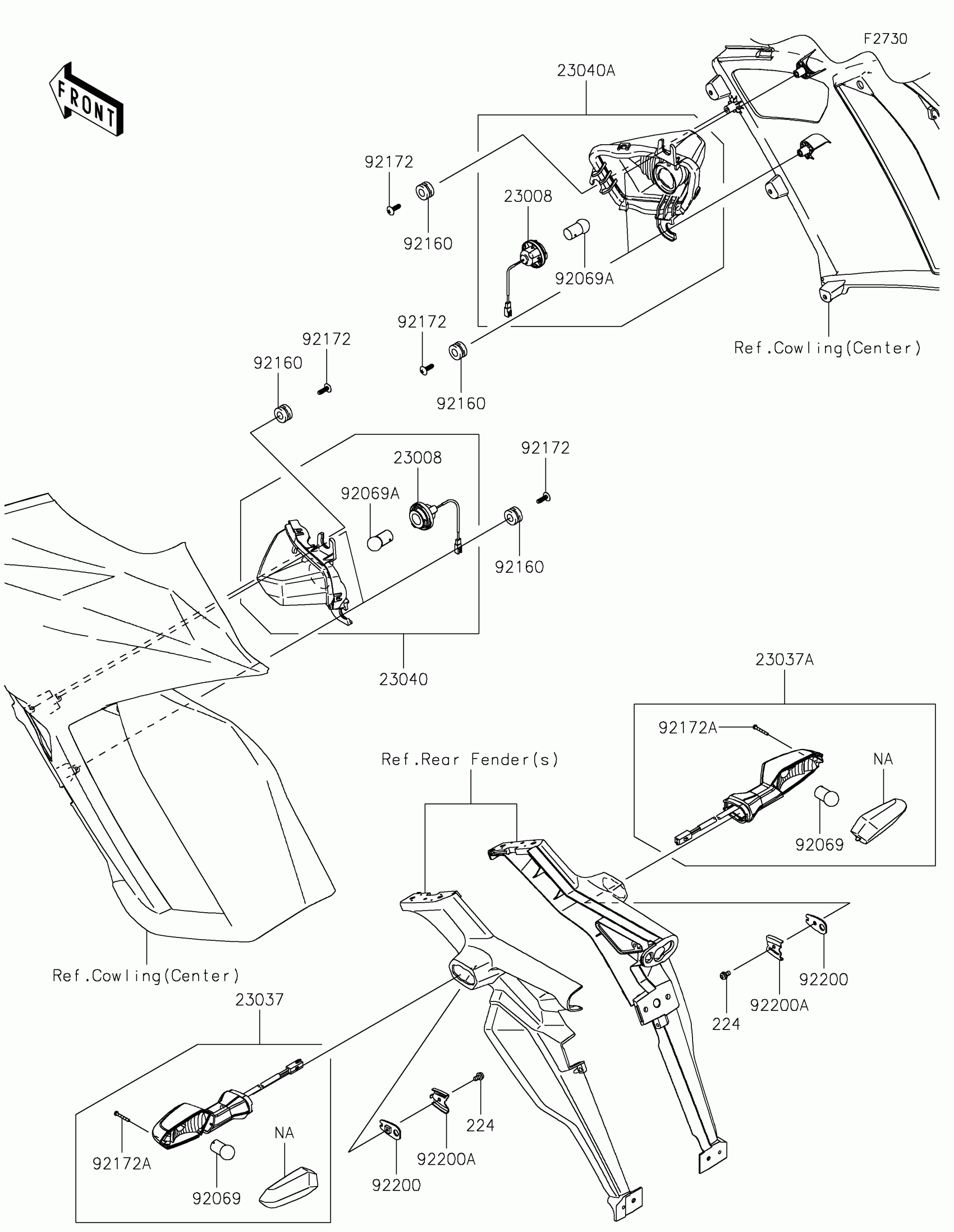

2013 Kawasaki Ninja® 1000 ABS Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-0125

1
Out of stock

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0165

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0171

1
Out of stock

23040

LAMP-SIGNAL,FR,LH

23040-0099

1
Out of stock

23040A

LAMP-SIGNAL,FR,RH

23040-0100

1
Out of stock

92069

BULB,12V 10W

92069-0024

1
Out of stock

92069A

BULB,12V 10W

92069-0046

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92172A

SCREW,2.9X22

92172-0395

1
Out of stock

92200

WASHER,SIGNAL LAMP

92200-0164

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-0165

1
Out of stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock
