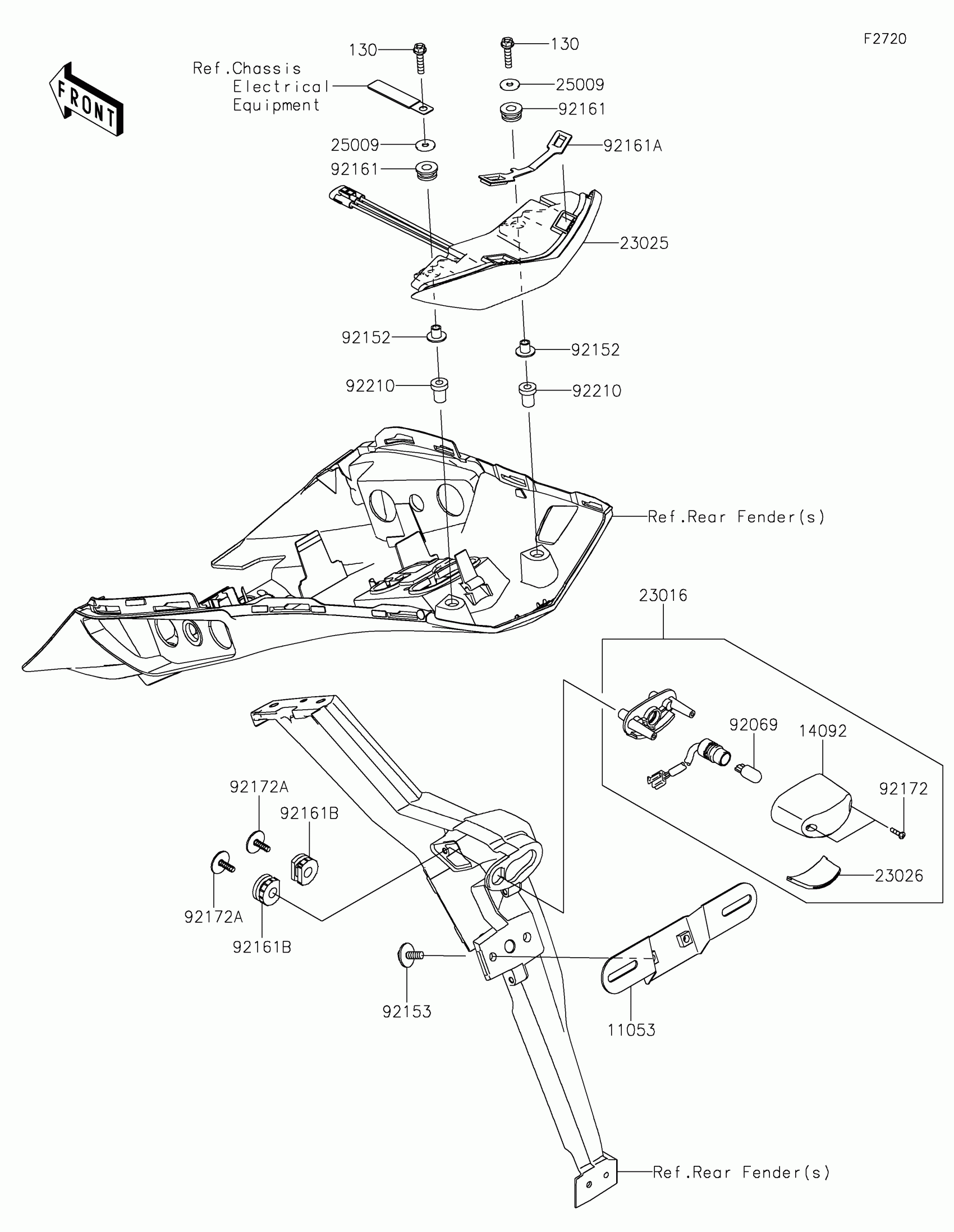

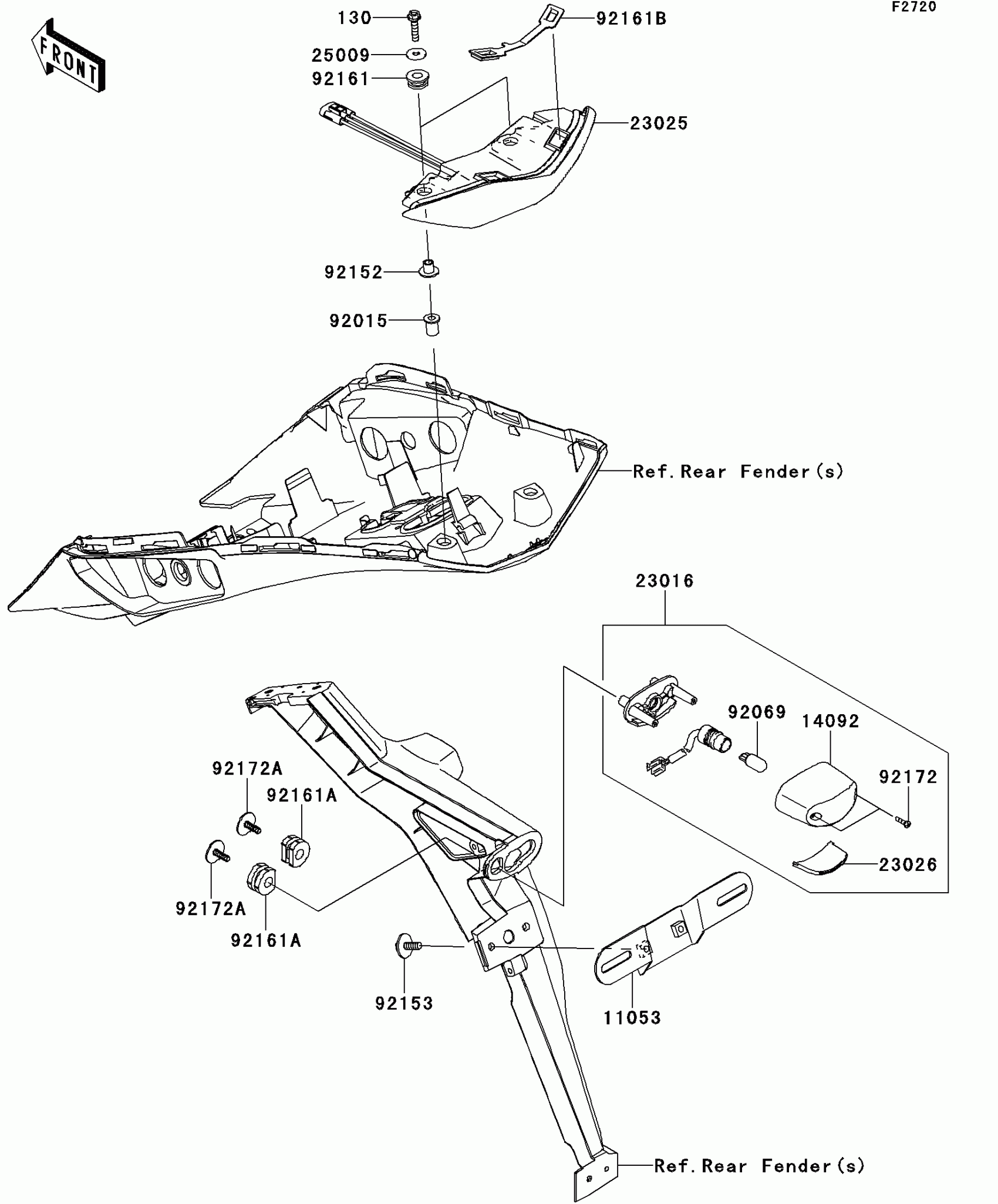

Kawasaki NINJA® 1000 ABS Taillight(s) Diagram

Description

Price

11053

BRACKET,LICENSE

11053-0400

$12.55

14092

COVER,LICENSE LAMP

14092-0001

$20.17

23016

LAMP-ASSY,LICENSE

23016-0033

Unavailable

23025

LAMP-TAIL

23025-0068

Unavailable

23026

LENS,LICENSE LAMP

23026-0015

$29.34

25009

WASHER,5.2X16X1.2

25009-004

$2.88

92015

NUT,WELL,5MM

92015-1757

$5.58

92069

BULB,12V 5W

92069-1016

$4.88

92152

COLLAR

92152-0092

$4.96

92153

BOLT,6X16

92153-1423

$1.04

92161

DAMPER

92161-0317

$2.34

92161A

DAMPER

92161-0776

$4.18

92161B

DAMPER,TAIL LAMP

92161-0808

$4.02

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.32

92172A

SCREW,TAPTITE,5X16

92172-0481

$2.20

130

BOLT-FLANGED,5X25

130BA0525

$0.57
