2013 Kawasaki Ninja® 1000 ABS Chassis Electrical Equipment Diagram

← All diagrams

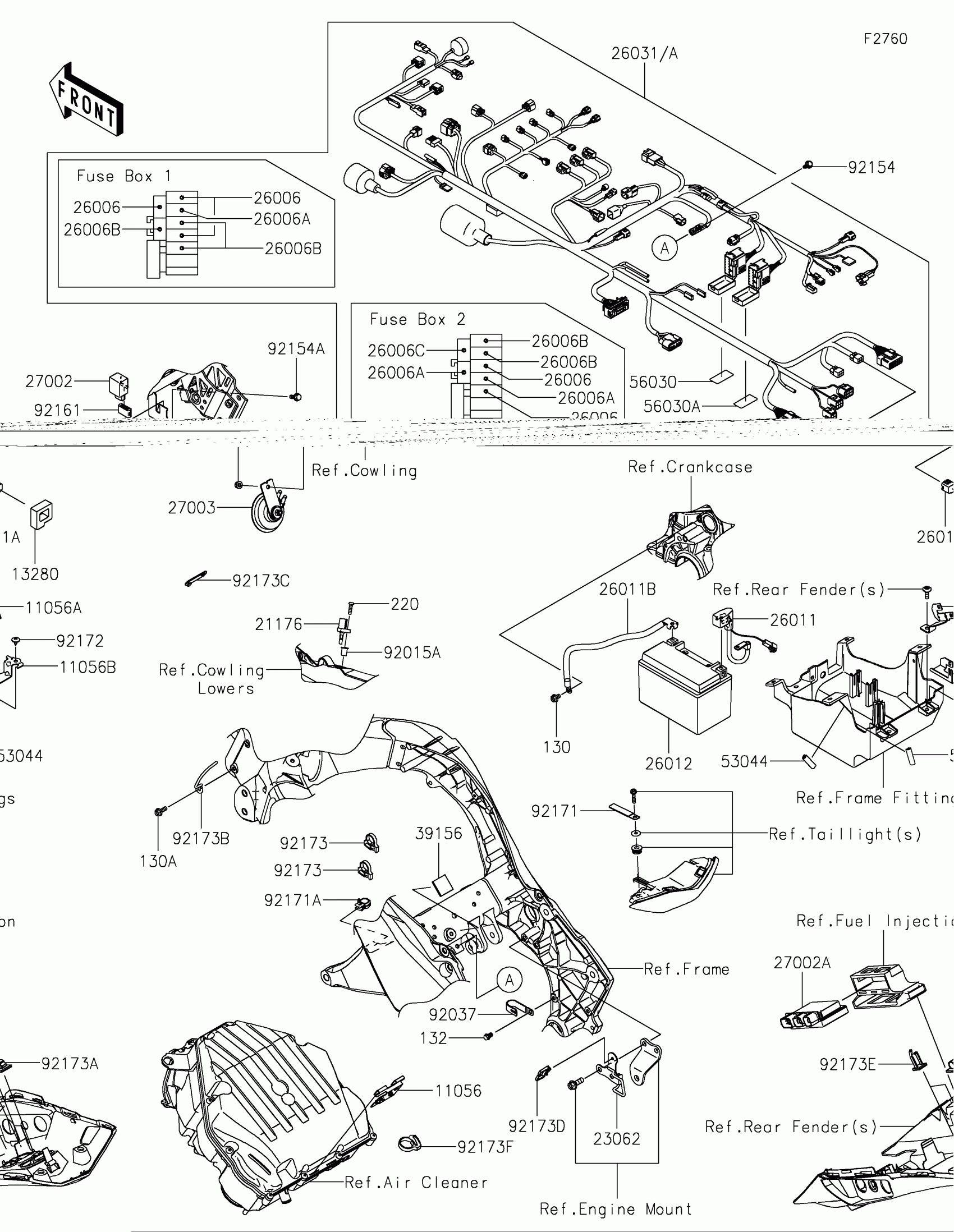

Find the part on the Chassis Electrical Equipment diagram for your 2013 Kawasaki Ninja® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,2A,GRAY

26006-0052

1
Out of stock

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-1079

1
Out of stock

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0252

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-0253

1
Out of stock

26011B

WIRE-LEAD,CAP

26011-0271

1
Out of stock

26011C

WIRE-LEAD,CONNECTOR COVER

26011-0275

1
Out of stock

26012

BATTERY,YTX9-BS,12V 8AH

26012-0088

1
Out of stock

26031A

HARNESS,MAIN

26031-1483

1
Out of stock

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

1
Out of stock

27002A

RELAY-ASSY

27002-0007

1
Out of stock

27003

HORN

27003-0075

1
Out of stock

56030

LABEL,FUSE BOX

56030-0361

1
Out of stock

56030A

LABEL,FUSE BOX,ABS&ACCESSORY

56030-0704

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92153

BOLT,SOCKET,6X12

92153-1948

1
Out of stock

92161

DAMPER,SIGNAL RELAY

92161-0283

1
Out of stock

92173

CLAMP

92173-0182

1
Out of stock

92173A

CLAMP,HEAD PIPE

92173-0726

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130B

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
