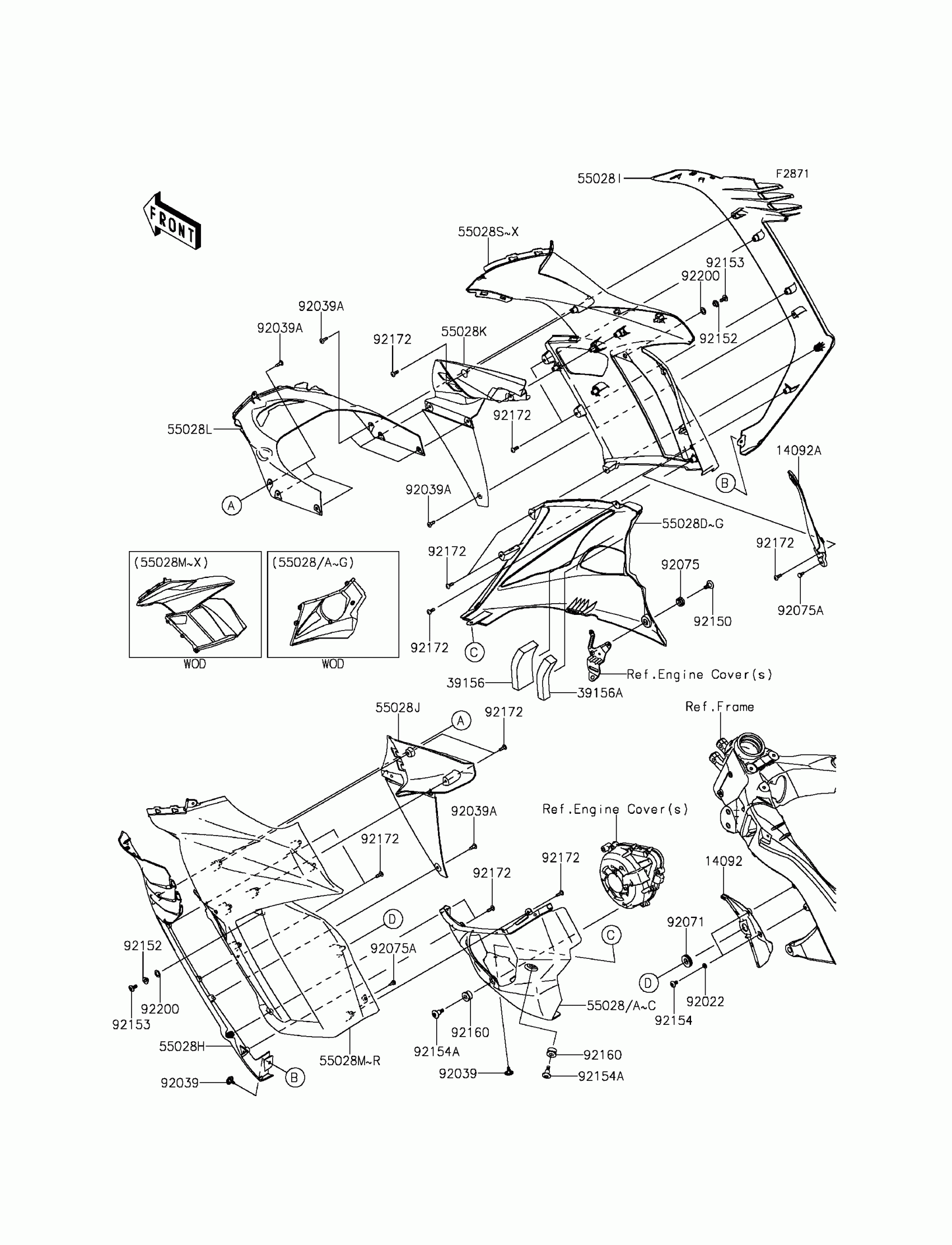

Kawasaki NINJA® 1000 ABS Cowling(Center) Diagram

#

Description
Price

14092

COVER,LH

14092-0250

$17.32

14092A

COVER,RH

14092-0251

$18.10

39156

PAD,20X120X50

39156-0708

$3.19

55028A

COWLING,LWR,LH,P.S.WHITE

55028-0346-25Y

$234.02

55028B

COWLING,LWR,LH,M.F.M.GRAY

55028-0346-40K

$234.02

55028E

COWLING,LWR,RH,P.S.WHITE

55028-0347-25Y

$234.02

55028F

COWLING,LWR,RH,M.F.M.GRAY

55028-0347-40K

$234.02

55028H

COWLING,SLAT,LH,F.BLACK

55028-0348-6Z

$154.90

55028I

COWLING,SLAT,RH,F.BLACK

55028-0349-6Z

$154.90

55028J

COWLING,INNER,LH

55028-0350

$65.78

55028K

COWLING,INNER,RH

55028-0351

$65.78

55028L

COWLING,FR

55028-0352

$86.36

55028N

COWLING,SIDE,LH,C.L.GREEN

55028-0386-17P

$458.59

55028P

COWLING,SIDE,LH,M.S.BLACK

55028-0386-660

$471.50

55028R

COWLING,SIDE,RH,C.L.GREEN

55028-0387-17P

$458.59

55028T

COWLING,SIDE,RH,M.S.BLACK

55028-0387-660

$472.87

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92039A

RIVET

92039-0068

$2.09

92071

GROMMET

92071-1043

$3.91

92075

DAMPER

92075-1634

$3.57

92075A

DAMPER,6X10X15

92075-1808

$1.06

92150

BOLT,SOCKET,6MM

92150-1154

$5.99

92153

BOLT,SOCKET,6MM

92153-1956

$2.98

92154

BOLT,SOCKET,5X16

92154-0026

$1.81

92154A

BOLT,6X24

92154-0348

$7.22

92160

DAMPER

92160-1141

$3.24

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92200

WASHER,10.4X15.9X0.5

92200-0157

$1.57
