2013 Kawasaki Ninja® 1000 ABS Rear Brake Diagram

← All diagrams

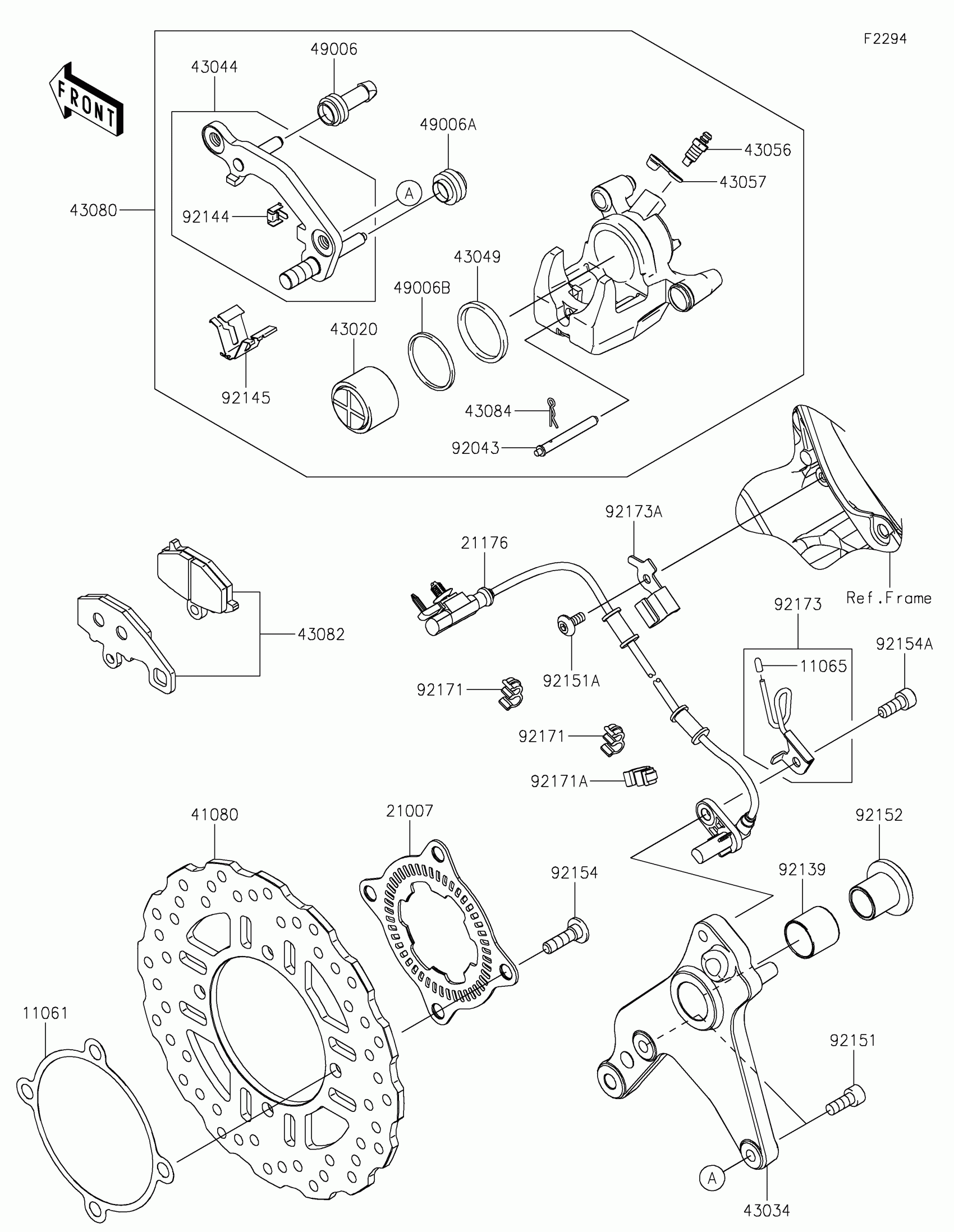

Find the part on the Rear Brake diagram for your 2013 Kawasaki Ninja® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC PLATE

11061-0204

1

$20.46

In stock

11065

CAP

11065-0374

1

$2.42

In stock

21007

ROTOR,SENSOR,RR

21007-0141

1

$91.38

In stock

21176

1

$126.12

In stock

41080

DISC,RR

41080-0089

1

$341.15

In stock

43020

PISTON-COMP-BRAKE

43020-1119

1

$66.46

In stock

43034

HOLDER-BRAKE,RR

43034-0059

1

$123.28

In stock

43044

1

$112.70

In stock

43049

PACKING,PISTON SEAL

43049-1097

1

$8.76

In stock

43056

BREATHER-BRAKE

43056-0007

1

$22.39

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$393.36

In stock

43082

PAD-ASSY-BRAKE

43082-0119

1

$76.53

In stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

49006B

BOOT,PISTON SEAL

49006-1212

1

$21.56

In stock

92043

PIN,PAD

92043-1489

1

$5.21

In stock

92139

BUSHING,25X28X25

92139-0278

1

$4.63

In stock

92144

SPRING,STOPPER

92144-1831

1

$4.34

In stock

92145

SPRING

92145-0760

1

$9.22

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92151

BOLT,SOCKET,8X20

92151-1289

1

$1.88

In stock

92152

COLLAR,20X25X30

92152-0807

1

$30.83

In stock

92171

CLAMP

92171-0921

1

$4.14

In stock

92171A

CLAMP,BRAKE HOSE

92171-1819

1

$4.85

In stock

92173

CLAMP

92173-0276

1

$13.42

In stock

132

1

$1.12

In stock
