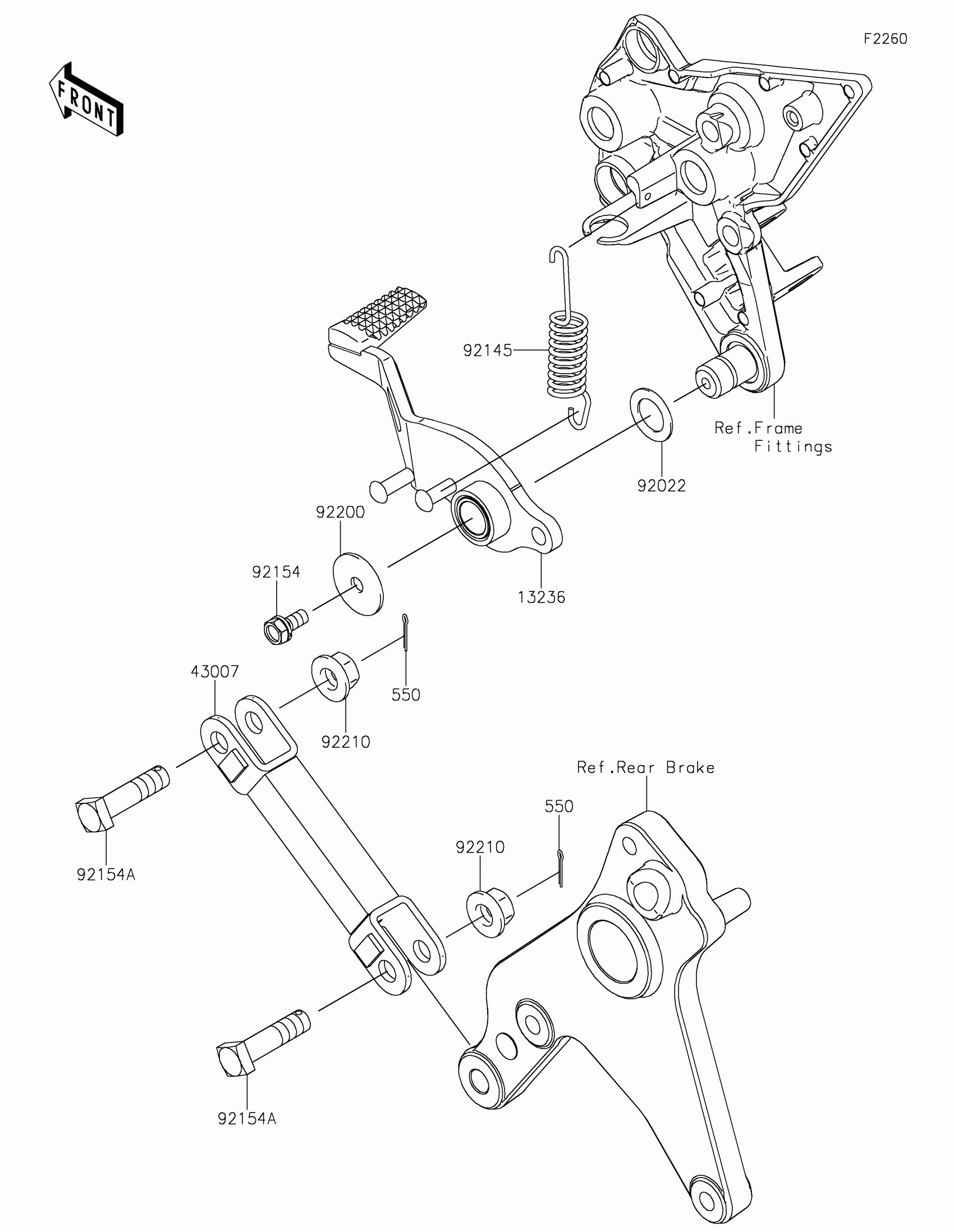

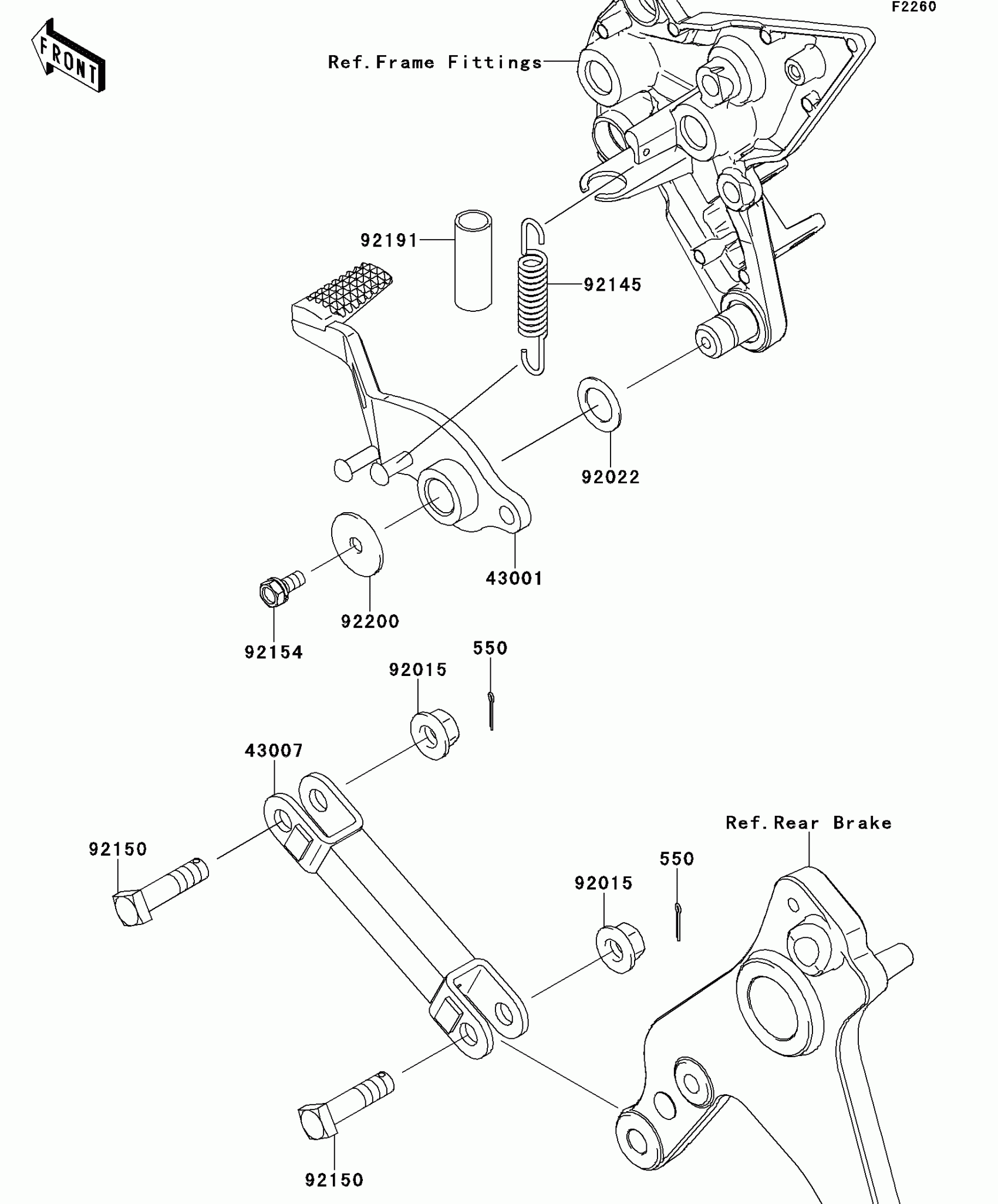

Kawasaki NINJA® 1000 ABS Brake Pedal/Torque Link Diagram

#

Description
Price

43001

LEVER-BRAKE

43001-0712

$120.69

43007

ROD-TORQUE,F.S.BLACK

43007-0016-18R

$44.26

92015

NUT,FLANGED,10MM

92015-1415

$3.57

92022

WASHER,15.3X24X1

92022-326

$2.99

92145

SPRING,BRAKE LEVER

92145-0764

$4.63

92150

BOLT,10X39.5

92150-1598

$7.29

92154

BOLT,UPSET-WS,6X14

92154-0293

$1.71

92191

TUBE,12X15X40

92191-1739

$2.00

92200

WASHER,7X28X1.6

92200-0279

$1.53

550

PIN-COTTER,2.0X15

550AA2015

$0.90
