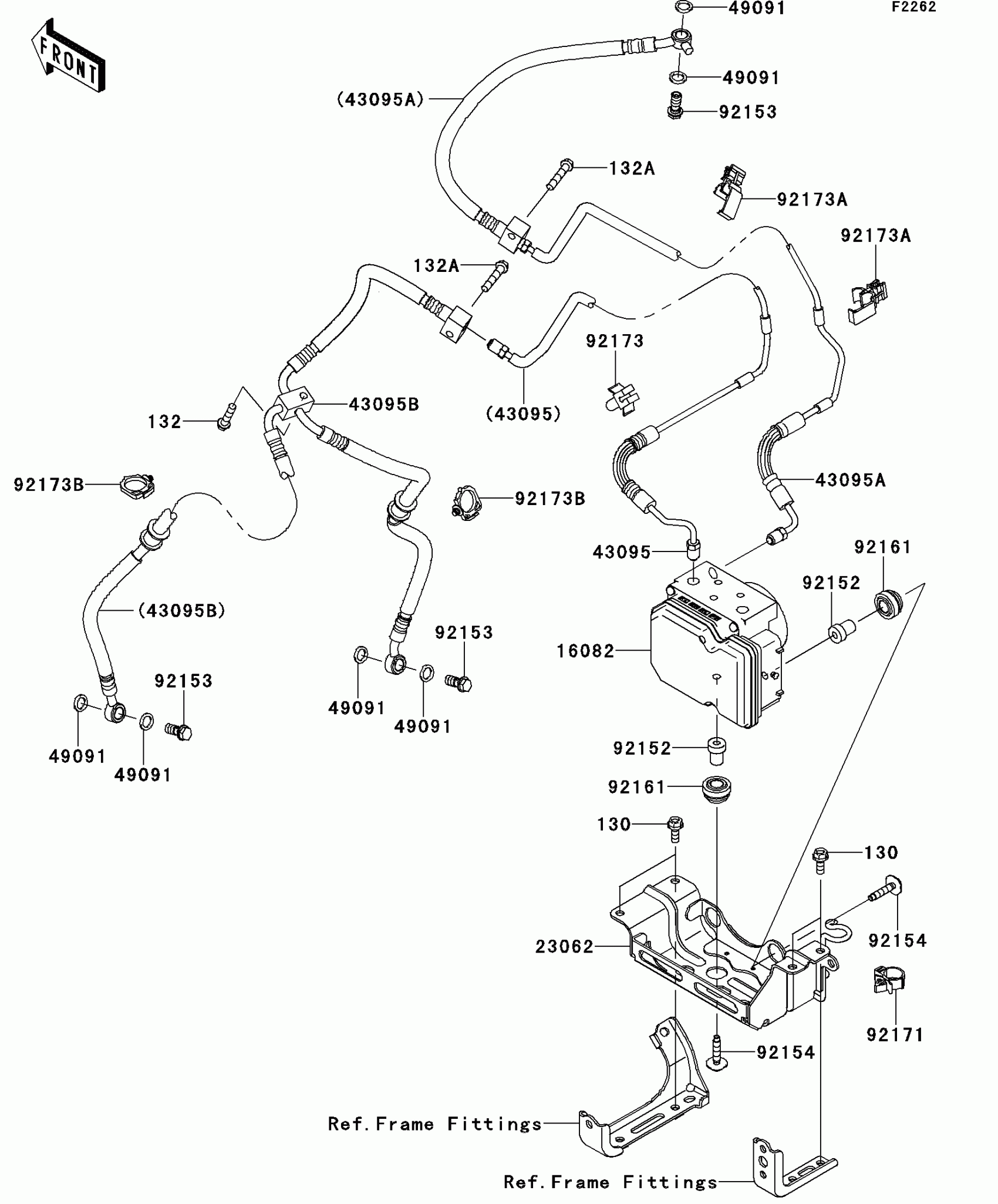

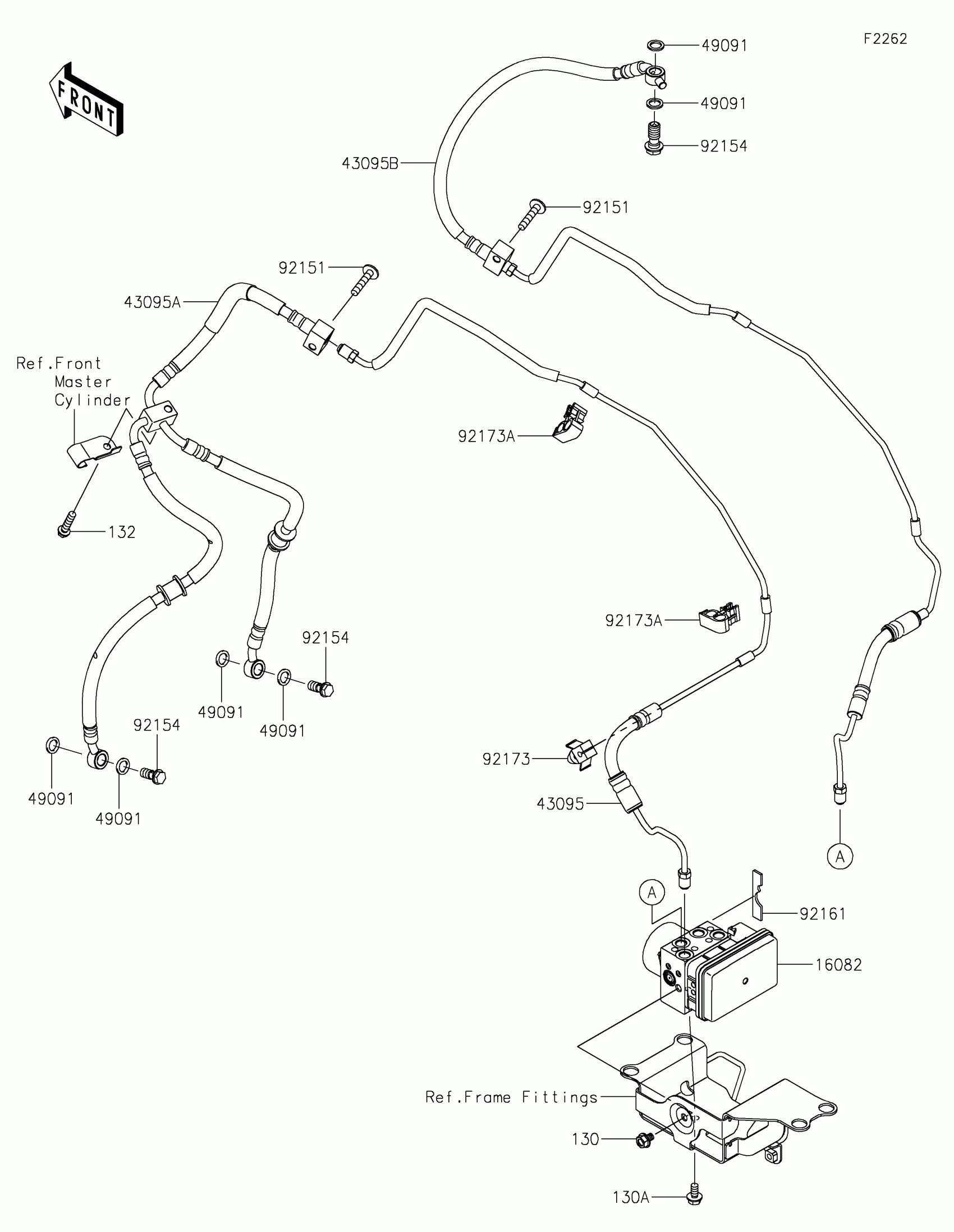

2013 Kawasaki Ninja® 1000 ABS Brake Piping Diagram

← All diagrams

Find the part on the Brake Piping diagram for your 2013 Kawasaki Ninja® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16082

PUMP-ASSY-OIL,ABS,WET

16082-0060

1
Out of stock

23062

BRACKET-COMP,ABS

23062-0719

1
Out of stock

43095

HOSE-BRAKE,HU-FR CALIPER

43095-0505

1
Out of stock

43095A

HOSE-BRAKE,FR M/C-HU

43095-0661

1
Out of stock

43095B

HOSE-BRAKE,FR

43095-0671

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92152

COLLAR,6.1X11X20.7

92152-0829

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92154

BOLT,WP,6X31

92154-0291

1
Out of stock

92161

DAMPER

92161-0827

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92173

CLAMP

92173-0088

1
Out of stock

92173A

CLAMP,CLIP

92173-0799

1
Out of stock

92173B

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

132

1

$2.29

In stock

132A

1

$3.28

In stock
